Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,#6205UG

601B6205UG

$33.41

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$33.26

41034

DRUM-ASSY,REAR BRAKE

41034-1258

$1,104.02

41035

PANEL-ASSY-BRAKE,RR

41035-1485

$548.58

41048

SHOE-BRAKE

41048-1070

$51.67

41049

SPRING,BRAKE SHOE

41049-012

$9.49

41050

CAM-BRAKE

41050-1059

$39.27

41051

SEAL,BRAKE CAM

41051-003

$4.26

41053

LEVER-BRAKE CAM

41053-1072

$65.77

41068

AXLE,RR

41068-1377

$72.40

41085

INDICATOR

41085-1054

$14.32

42033

COUPLING-ASSY,RR HUB

42033-1219

$212.86

42036

SLEEVE,RR HUB,L=28

42036-1328

$48.69

42041

SPROCKET-HUB,42T

42041-1474

$74.13

42046

WASHER,17.3X32X3.2

42046-009

$7.84

92004

STUD,10X19

92004-0028

$8.92

92015

NUT,CASTLE,16MM

92015-1951

$11.50

92027

COLLAR,REAR AXLE,LH,L=23.5

92027-1368

$32.96

92033

RING-SNAP,47MM

92033-1042

$4.22

92033A

RING-SNAP,52MM

92033-1043

$8.05

92052

SEAL-OIL,TWC35527

92052-006

Unavailable

92057

CHAIN,DRIVE,EK520MVXLX110L

92057-0049

$387.57

92058

JOINT-CHAIN,DRIVE

92058-0002

$15.78

92081

SPRING,BRAKE CAM LEVER RETURN

92081-1814

$10.53

92143

COLLAR,REAR AXLE,RH,L=33.5

92143-1898

$23.33

92150

BOLT,8X27

92150-1797

$5.57

92152

COLLAR,RR HUB,L=101

92152-1117

$30.19

92160

DAMPER,SHOCK,RR HUB

92160-1697

$26.04

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

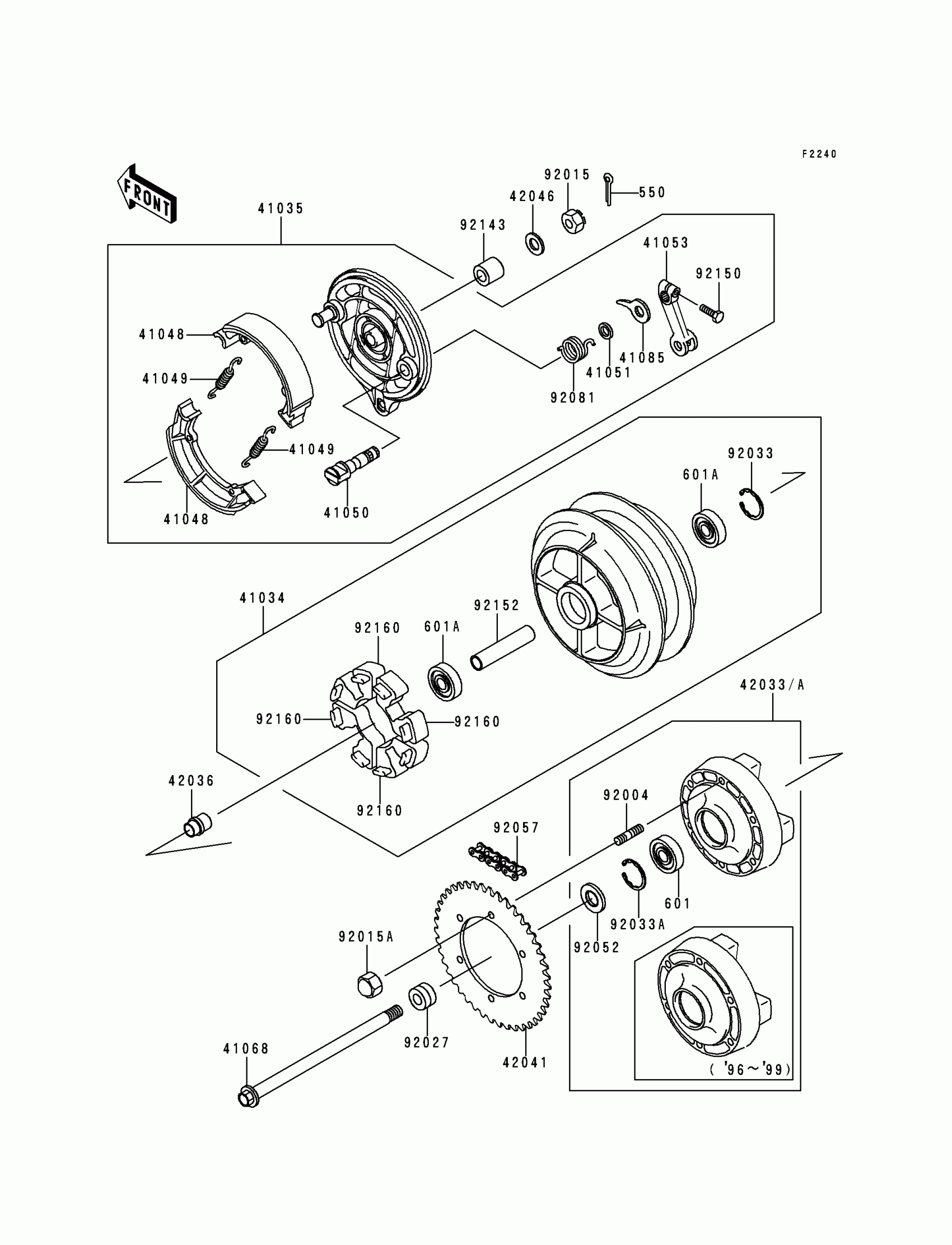

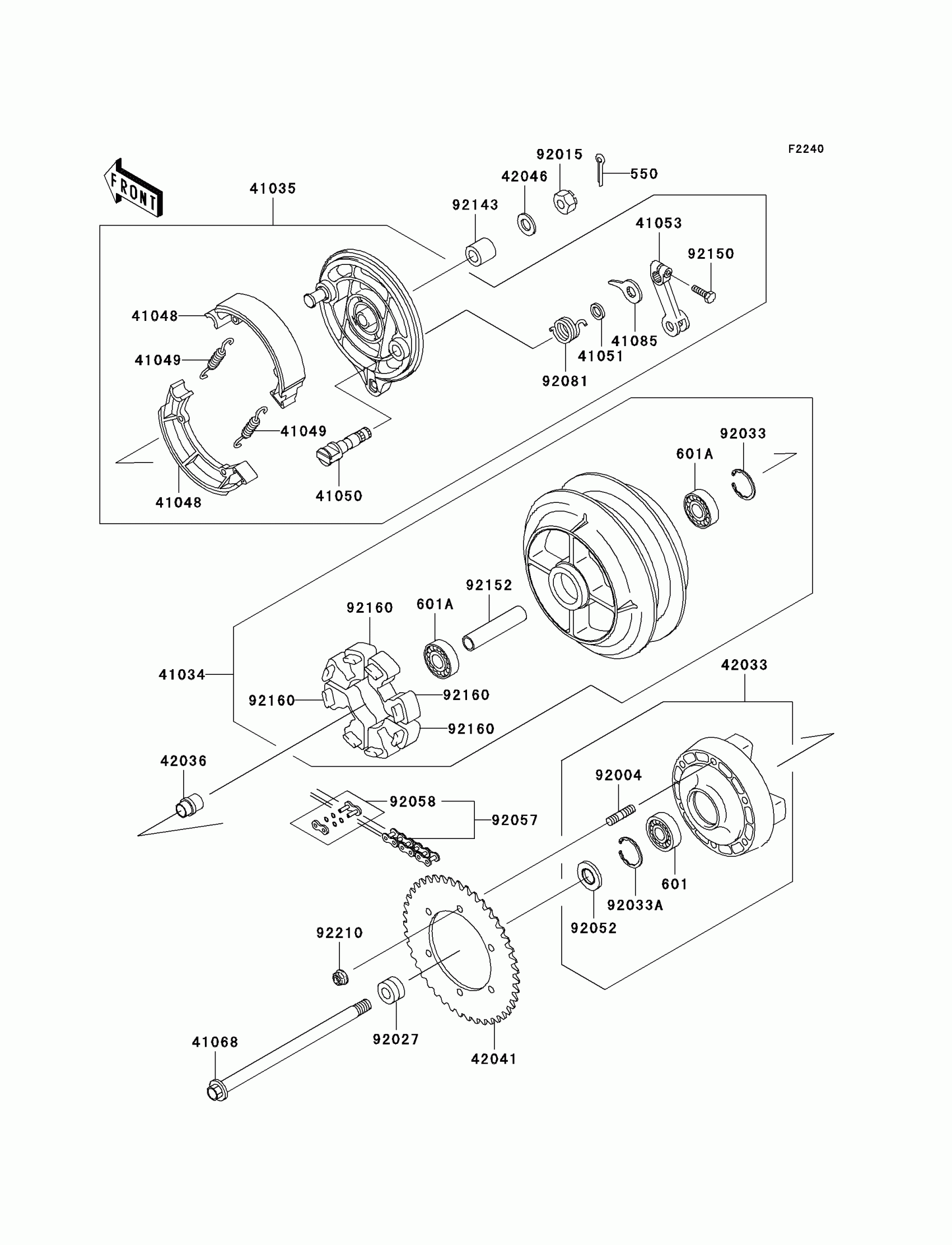

Kawasaki Vulcan® 500 LTD Rear Wheel/Chain Diagram
