Description

Price

112

BOLT-UPSET,6X20

112BA0620

$2.28

220

SCREW-PAN-CROS,5X16

220E0516

$4.11

13042

WEIGHT,HANDLE

13042-1068

$35.38

13091

HOLDER,CLUTCH LEVER,SILVER

13091-1671

$59.10

27010

SWITCH,CLUTCH

27010-1268

$28.59

46003

HANDLE

46003-1437

$249.35

46019

GRIP-ASSY,THROTTLE

46019-1065

$41.45

46055

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

46075

GRIP,LH

46075-1074

$24.48

46076

LEVER-ASSY-GRIP,CLUTCH,SILVER

46076-1174

$87.95

46091

HOUSING-ASSY-CONTROL,RH

46091-1655

$228.39

46091A

HOUSING-ASSY-CONTROL,LH

46091-1656

$241.14

46092

LEVER-GRIP,CLUTCH

46092-1164

$27.18

56001

MIRROR-ASSY,LH

56001-1451

$83.79

56001A

MIRROR-ASSY,RH

56001-1452

$83.79

92009

SCREW,8X20

92009-1484

$5.59

92019

NUT,LOCK,6MM

92019-008

$4.26

92037

CLAMP,HOSE

92037-1827

$7.45

92143

COLLAR

92143-1351

$17.91

92150

BOLT,LEVER SET

92150-1330

$13.71

92172

SCREW,3X20

92172-0164

$3.07

92210

NUT,LOCK,FLANGED,10MM

92210-1080

$10.28

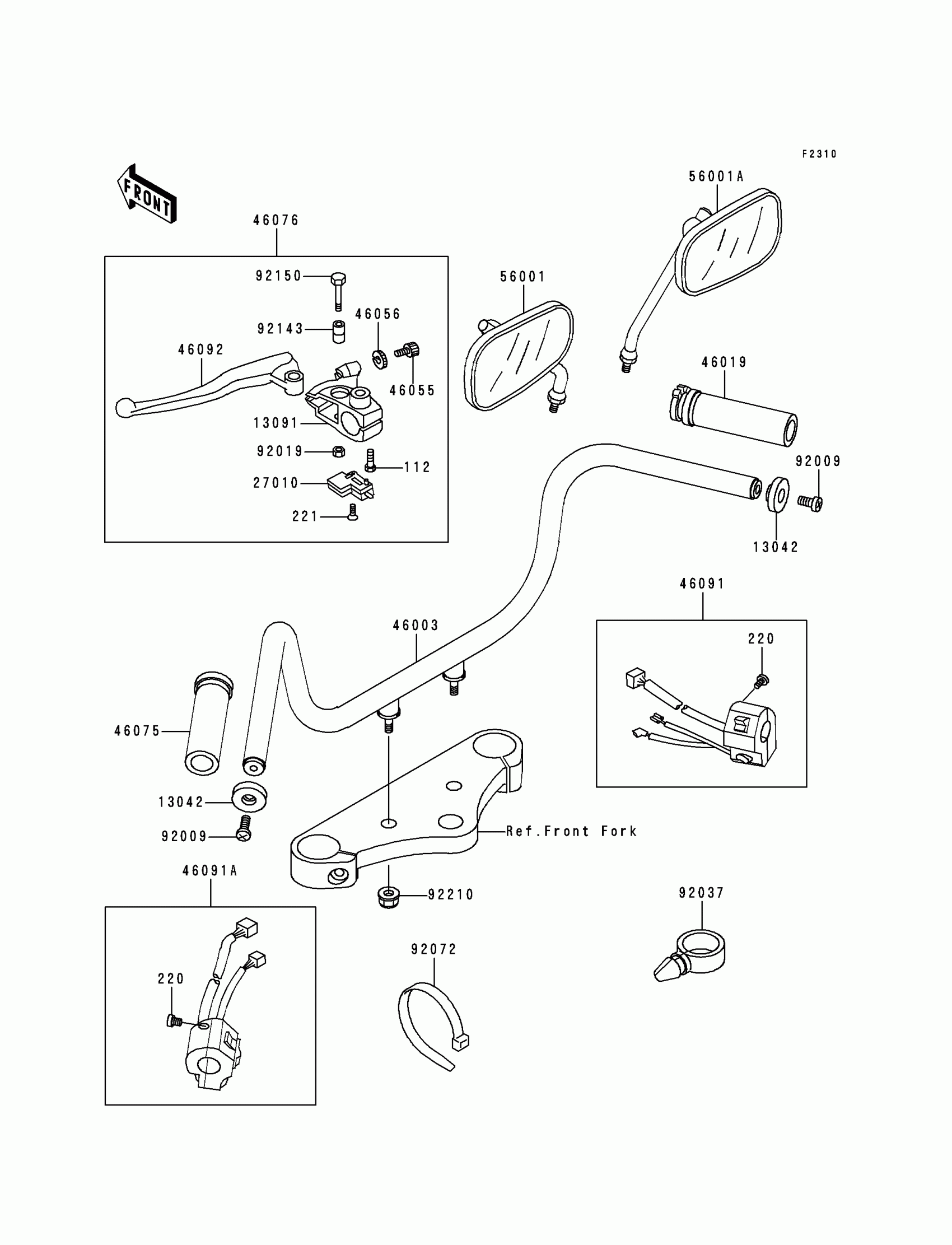

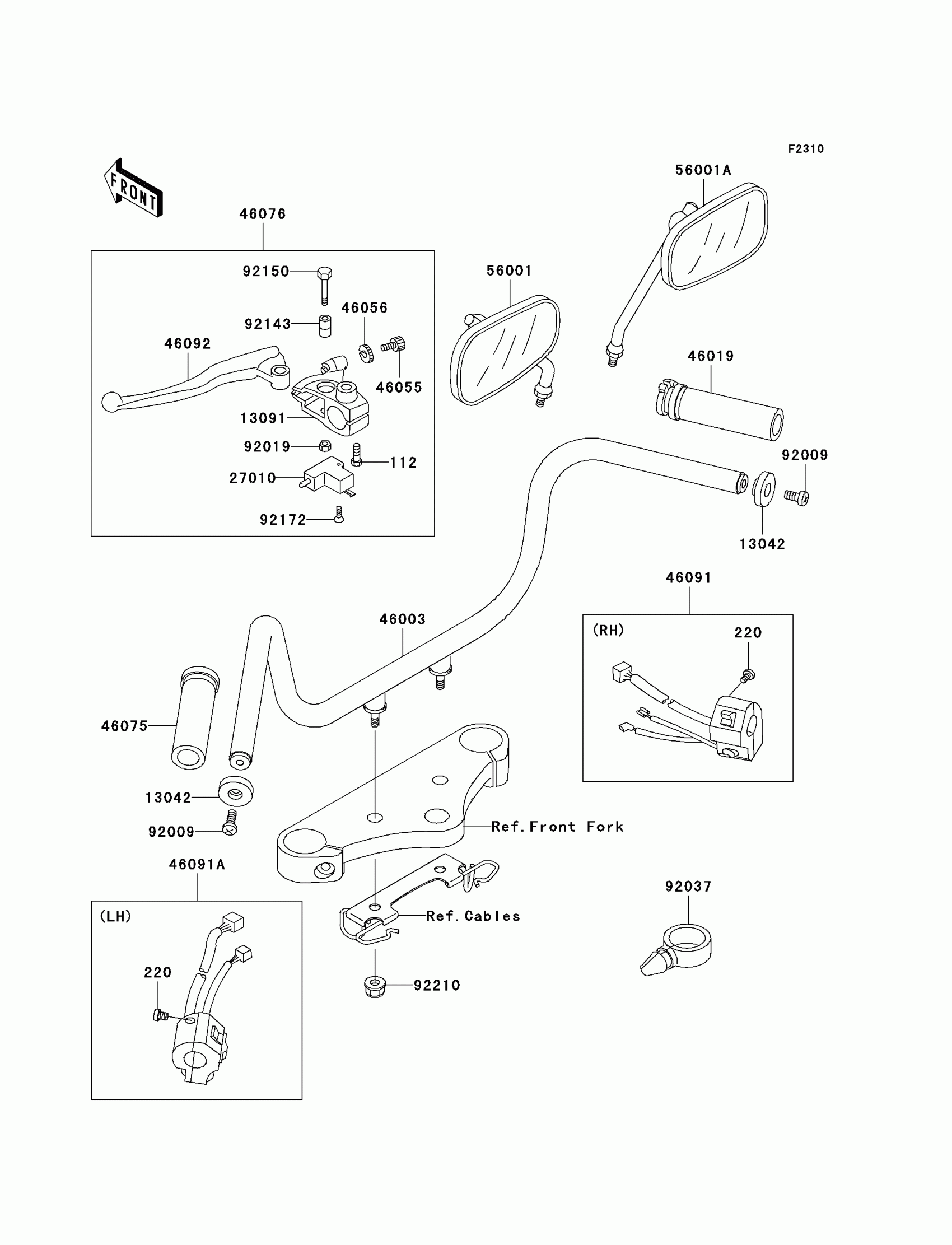

Kawasaki Vulcan® 500 LTD Handlebar Diagram
