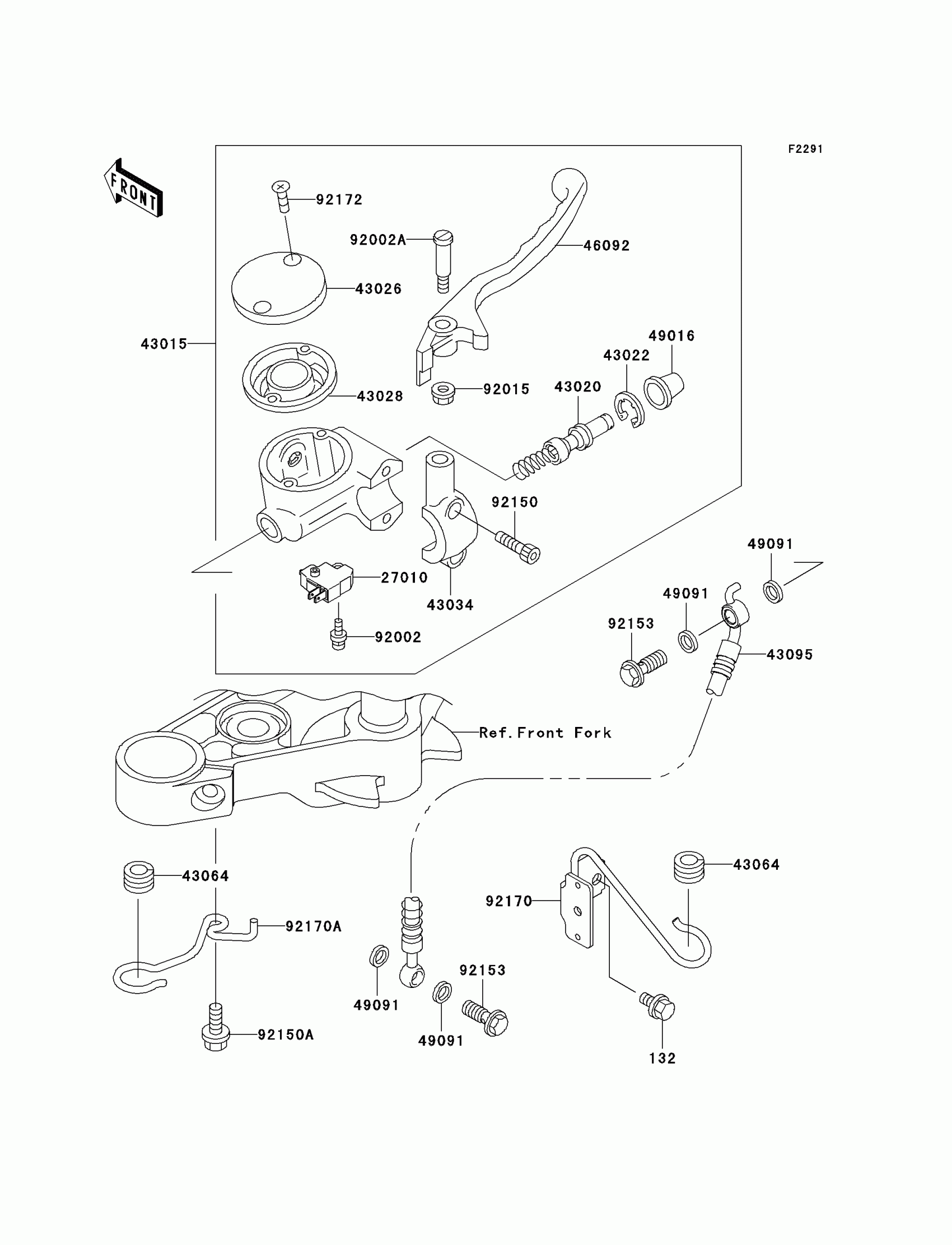

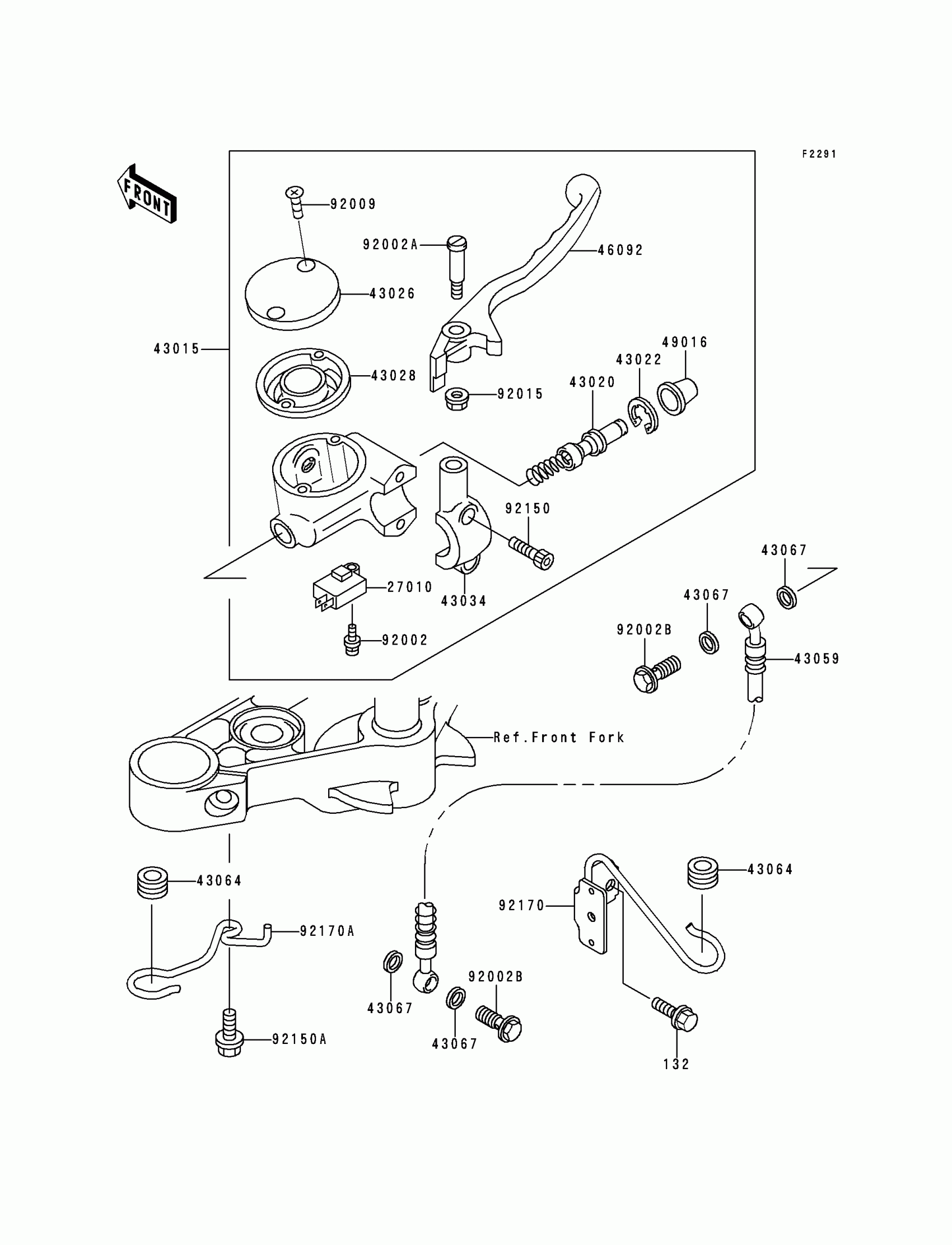

Kawasaki Vulcan® 500 LTD Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0054

$456.93

43020

PISTON-COMP-BRAKE

43020-1098

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,SILVER

43026-1078

$63.92

43028

DIAPHRAGM,MASTER CYLINDER

43028-1071

$24.21

43034

HOLDER-BRAKE,SILVER

43034-1102

$53.20

43064

GROMMET,HOSE CLAMP

43064-006

$4.31

43095

HOSE-BRAKE,FR

43095-0196

$139.31

46092

LEVER-GRIP,FRONT BRAKE

46092-1172

$32.34

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92002A

BOLT,LEVER SET

92002-1561

$11.71

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92150

BOLT,SOCKET,6MM

92150-1025

$7.69

92150A

BOLT,6X14

92150-1340

$5.07

92153

BOLT,OIL,L=23

92153-0627

$5.48

92170

CLAMP,HOSE

92170-1611

$10.38

92170A

CLAMP,HOSE

92170-1647

$18.50

92172

SCREW,5MM

92172-0089

$5.22
