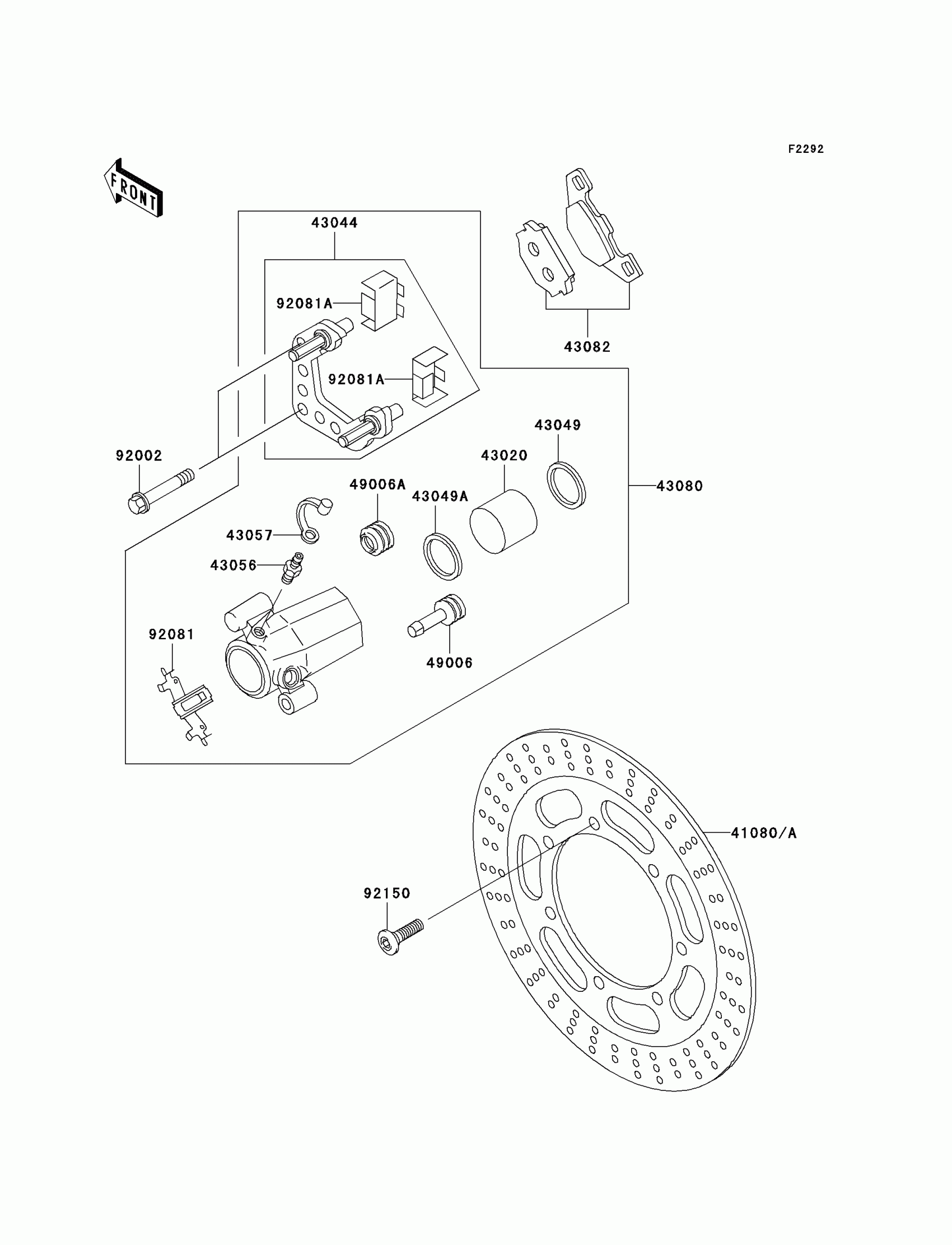

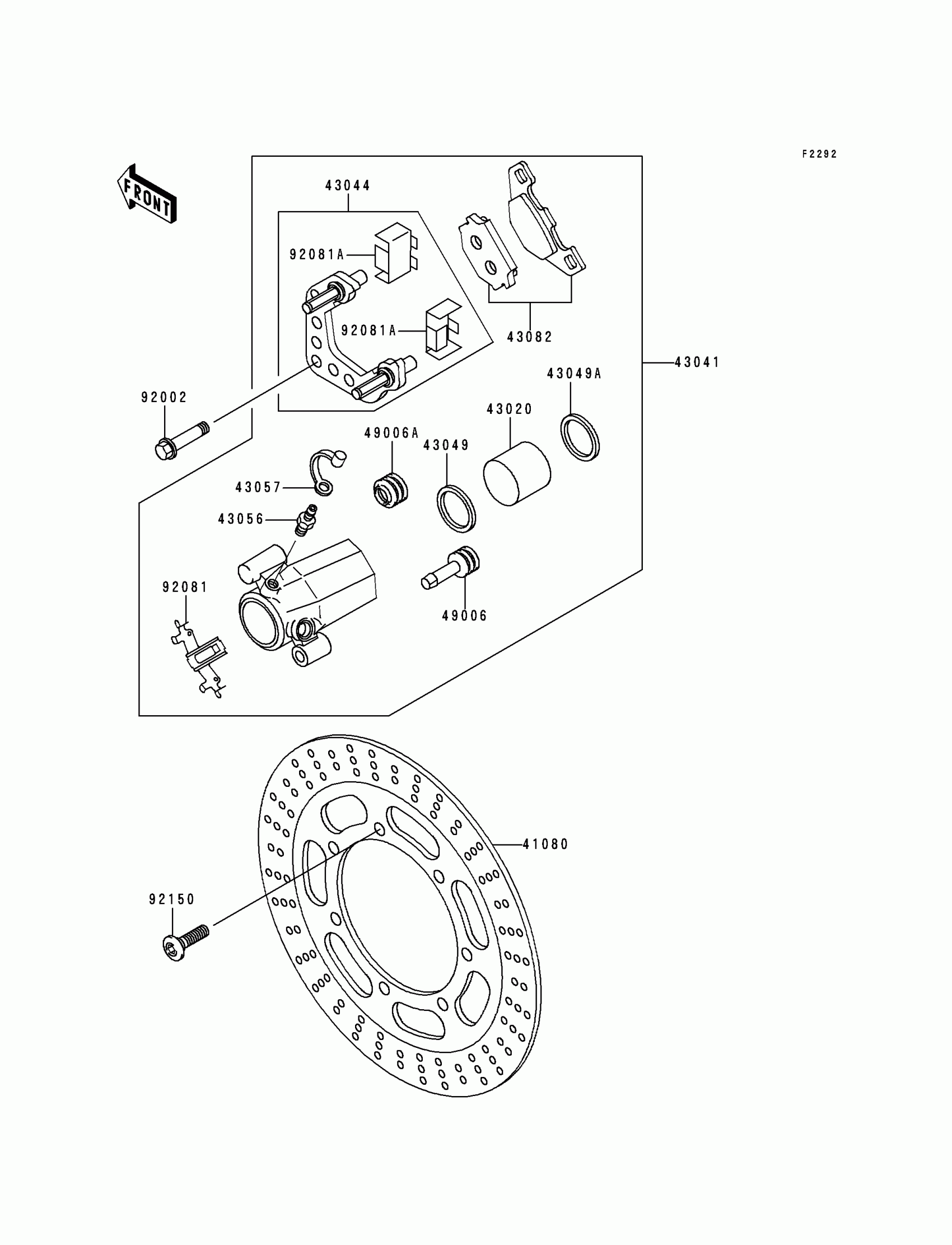

Kawasaki Vulcan 500 LTD Front Brake Diagram

Description

Price

41080

DISC,FR,SILVER

41080-1401-CM

$461.72

43020

PISTON-COMP-BRAKE

43020-1066

$93.03

43041

CALIPER-ASSY,FR,LH,SILVER

43041-1487-GN

$543.73

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1102

$190.21

43049

PACKING,PISTON SEAL

43049-002

$10.56

43049A

PACKING,PISTON

43049-1028

$9.61

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1080

$53.82

49006

BOOT,CALIPER

49006-1094

$9.30

49006A

BOOT,CALIPER

49006-1095

$5.55

92002

BOLT,FLANGED,10X47

92002-1469

$8.08

92081

SPRING,PAD

92081-1525

$14.69

92081A

SPRING,PAD STOPPER

92081-1661

$9.22

92150

BOLT,SOCKET,8X30

92150-1771

$3.57
