Frame Fittings

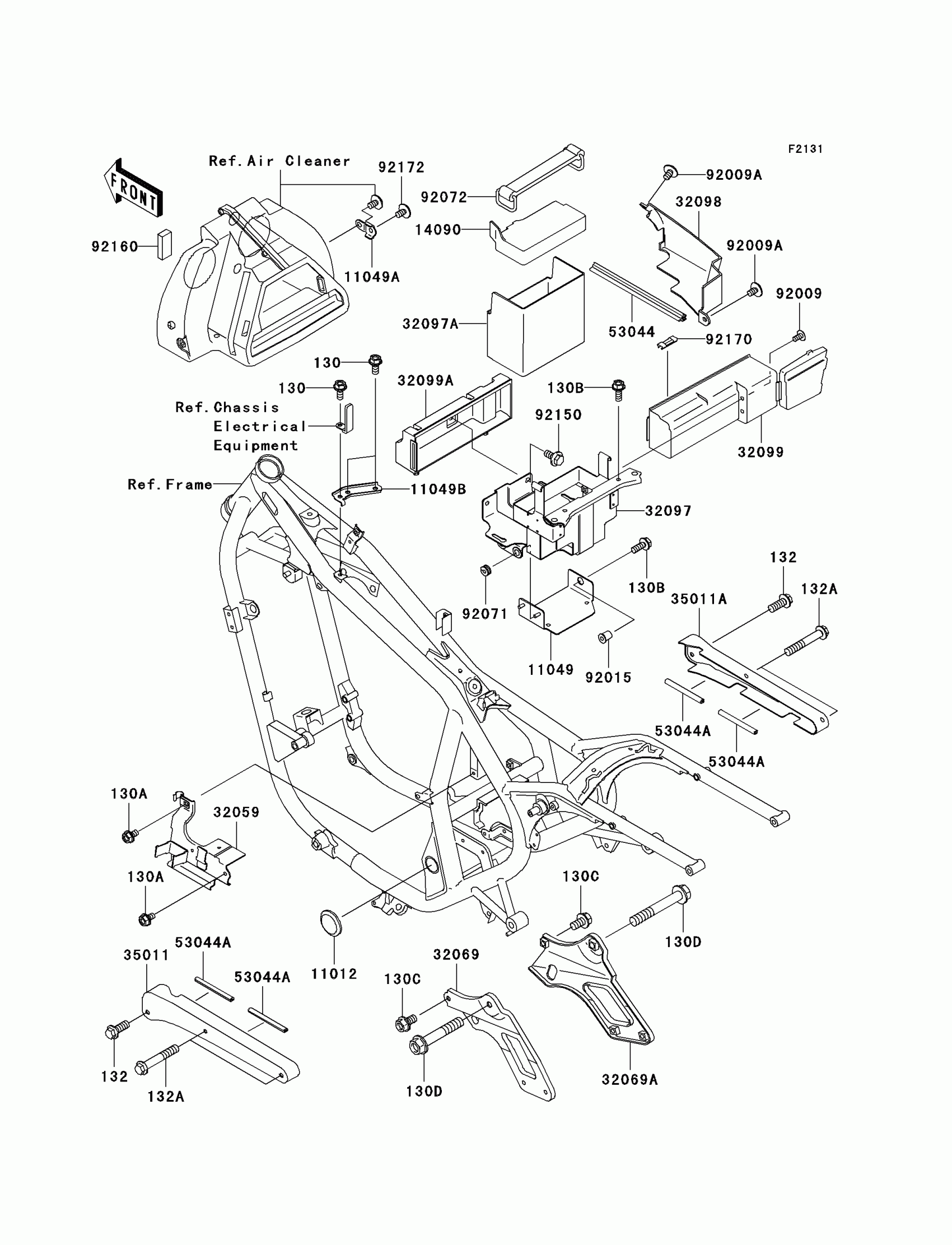

Kawasaki Vulcan® 500 LTD Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X10
130BB0610
$2.49
130B
BOLT-FLANGED,6X16
130BB0616
$2.06
130C
BOLT-FLANGED,8X14
130BB0814
$4.12
130D
BOLT-FLANGED,10X55
130BB1055
$6.66
132
BOLT-FLANGED-SMALL,8X20
132E0820
$4.69
132A
BOLT-FLANGED-SMALL,8X50
132E0850
$6.27
11012
CAP,PIVOT
11012-1821
$12.46
11049
BRACKET,IGNITER
11049-1576
$11.48
11049A
BRACKET,AIR CLEANER
11049-1577
$5.45
11049B
BRACKET,THERMOSTAT
11049-1795
$8.47
14090
COVER,BATTERY
14090-1688
$24.98
32059
BRACKET-SWITCH
32059-1132
$26.86
32069
BRACKET-MUFFLER,LH
32069-1453
$53.17
32069A
BRACKET-MUFFLER,RH
32069-1454
$53.17
32097
CASE-BATTERY
32097-1160
$144.24
32097A
CASE-BATTERY
32097-1163
$19.56
32098
CASE-TOOL
32098-1110
$32.11
32099
CASE
32099-1170
$73.47
32099A
CASE
32099-1177
$38.57
35011
STAY,LH
35011-1757
$128.21
35011A
STAY,RH
35011-1758
$128.21
53044
TRIM,L=200
53044-1299
$12.06
53044A
TRIM,L=100
53044-3728
$5.59
92009
SCREW,5X10
92009-1651
$4.38
92009A
SCREW,6X10
92009-1661
$4.31
92015
NUT
92015-1700
$8.58
92071
GROMMET
92071-3733
$4.14
92072
BAND,L=142.1
92072-006
$12.76
92150
BOLT,6X16
92150-1198
$4.13
92160
DAMPER
92160-1439
$5.88
92170
CLAMP
92170-1646
$4.80
92172
SCREW,6X10
92172-0005
$2.41
