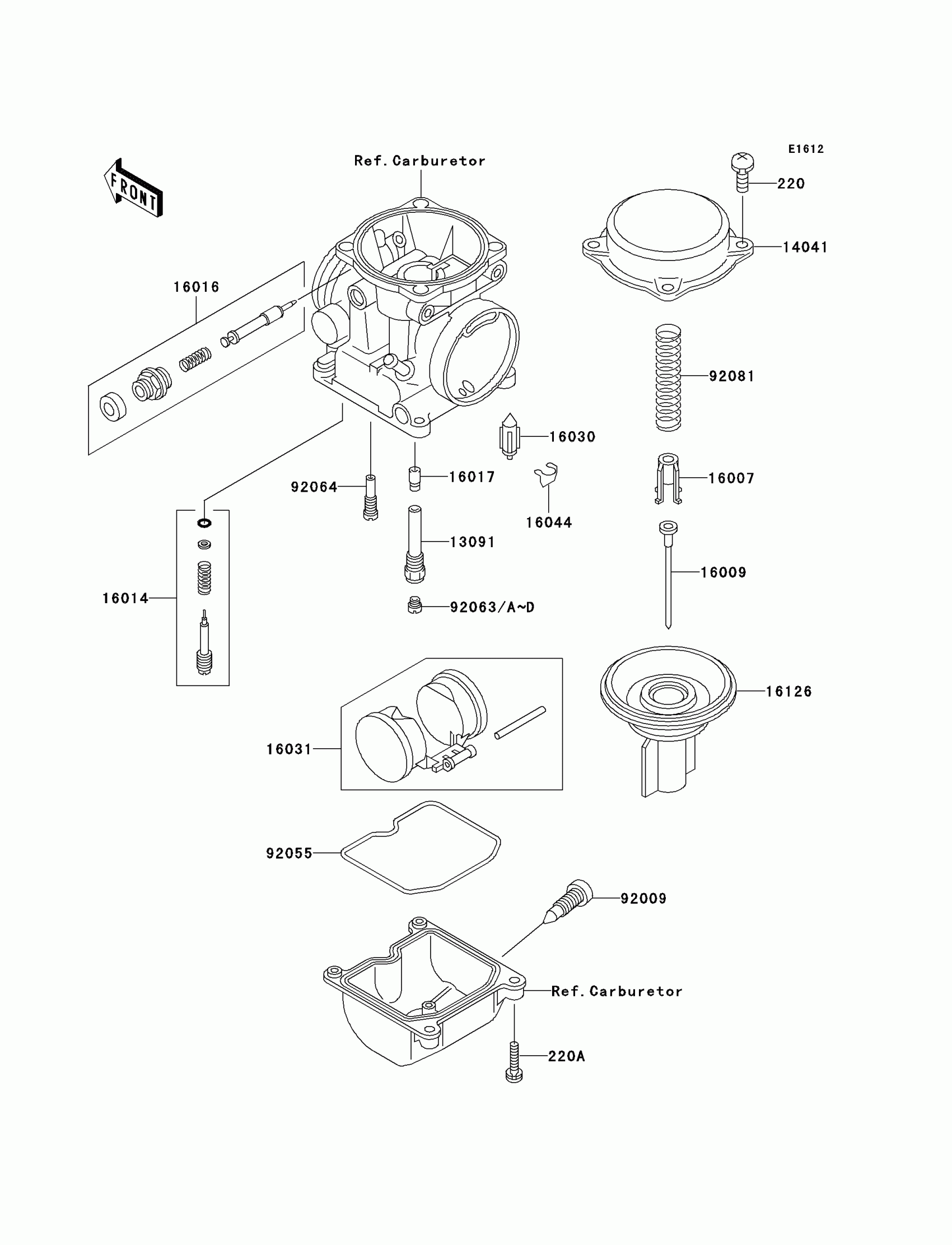

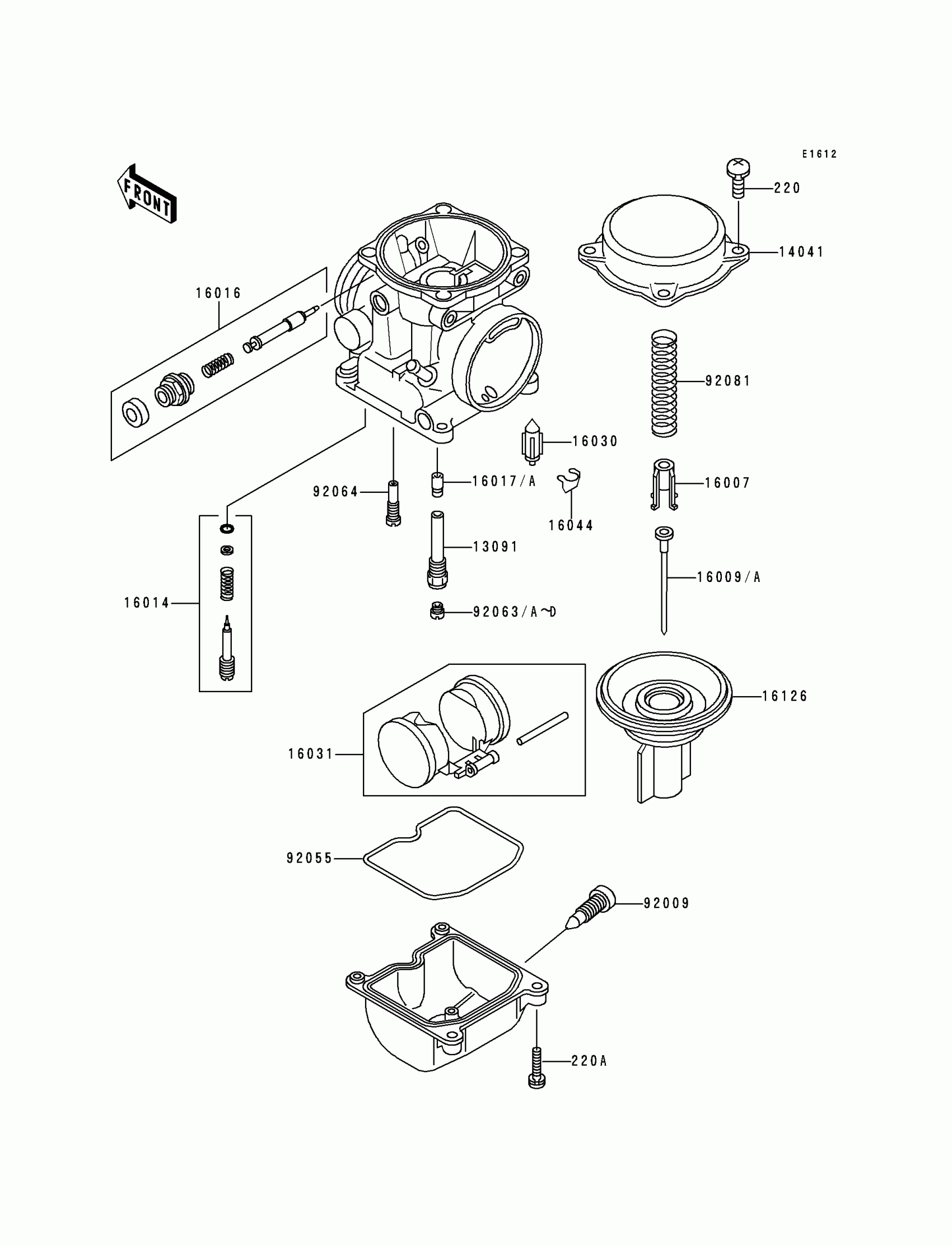

Kawasaki Vulcan® 500 LTD Carburetor Parts Diagram

Description

Price

220

SCREW-PAN-CROS,4X8

220AA0408

$0.68

220A

SCREW-PAN-CROS,4X14

220AA0414

$4.60

13091

HOLDER,NEEDLE JET

13091-1713

$30.79

14041

TOP-CHAMBER

14041-1076

$95.95

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16009

NEEDLE-JET,N2WE

16009-1895

$35.50

16014

SCREW-PILOT AIR

16014-1081

$24.57

16016

PLUNGER

16016-1092

$59.33

16017

JET-NEEDLE

16017-1376

$48.24

16030

VALVE-FLOAT

16030-1007

$47.99

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1160

$200.34

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#98

92063-1005

Unavailable

92063A

JET-MAIN,#100

92063-1008

Unavailable

92063B

JET-MAIN,#105

92063-1009

Unavailable

92063C

JET-MAIN,#102

92063-1090

$15.04

92063D

JET-MAIN,#108

92063-1116

Unavailable

92064

JET-PILOT,#35

92064-1101

$17.03

92081

SPRING,VACUUM VALVE

92081-1925

$24.61
