Description

Price

130

BOLT,FLANGED,6X14

130G0614

$1.17

130A

BOLT-FLANGED

130J0610

$2.33

130B

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130C

BOLT-FLANGED,8X14

130J0814

$3.84

130D

BOLT-FLANGED,10X55

130J1055

$6.21

132

BOLT-FLANGED-SMALL,8X20

132E0820

$4.69

132A

BOLT-FLANGED-SMALL,8X50

132E0850

$6.27

11012

CAP,PIVOT

11012-1821

$12.46

11049

BRACKET,IGNITER

11049-1576

$11.48

11049A

BRACKET,AIR CLEANER

11049-1577

$5.45

11049B

BRACKET,THERMOSTAT

11049-1795

$8.47

14090

COVER,BATTERY

14090-1688

$24.98

32059

BRACKET-SWITCH

32059-1132

$26.86

32069

BRACKET-MUFFLER,LH

32069-1453

$53.17

32069A

BRACKET-MUFFLER,RH

32069-1454

$53.17

32097

CASE-BATTERY

32097-1160

$144.24

32097A

CASE-BATTERY

32097-1163

$19.56

32098

CASE-TOOL

32098-1110

$32.11

32099

CASE

32099-1170

$73.47

32099A

CASE

32099-1177

$38.57

35011

STAY,LH

35011-1757

$128.21

35011A

STAY,RH

35011-1758

$128.21

53044

TRIM,L=200

53044-1299

$12.06

53044A

TRIM,L=100

53044-3728

$5.59

92009

SCREW,6X10

92009-1402

$2.41

92009A

SCREW,5X10

92009-1651

$4.38

92009B

SCREW,6X10

92009-1661

$4.31

92015

NUT

92015-1700

$8.58

92071

GROMMET

92071-3733

$4.14

92072

BAND,L=142.1

92072-006

$12.76

92150

BOLT,6X16

92150-1198

$4.13

92160

DAMPER

92160-1439

$5.88

92170

CLAMP

92170-1646

$4.80

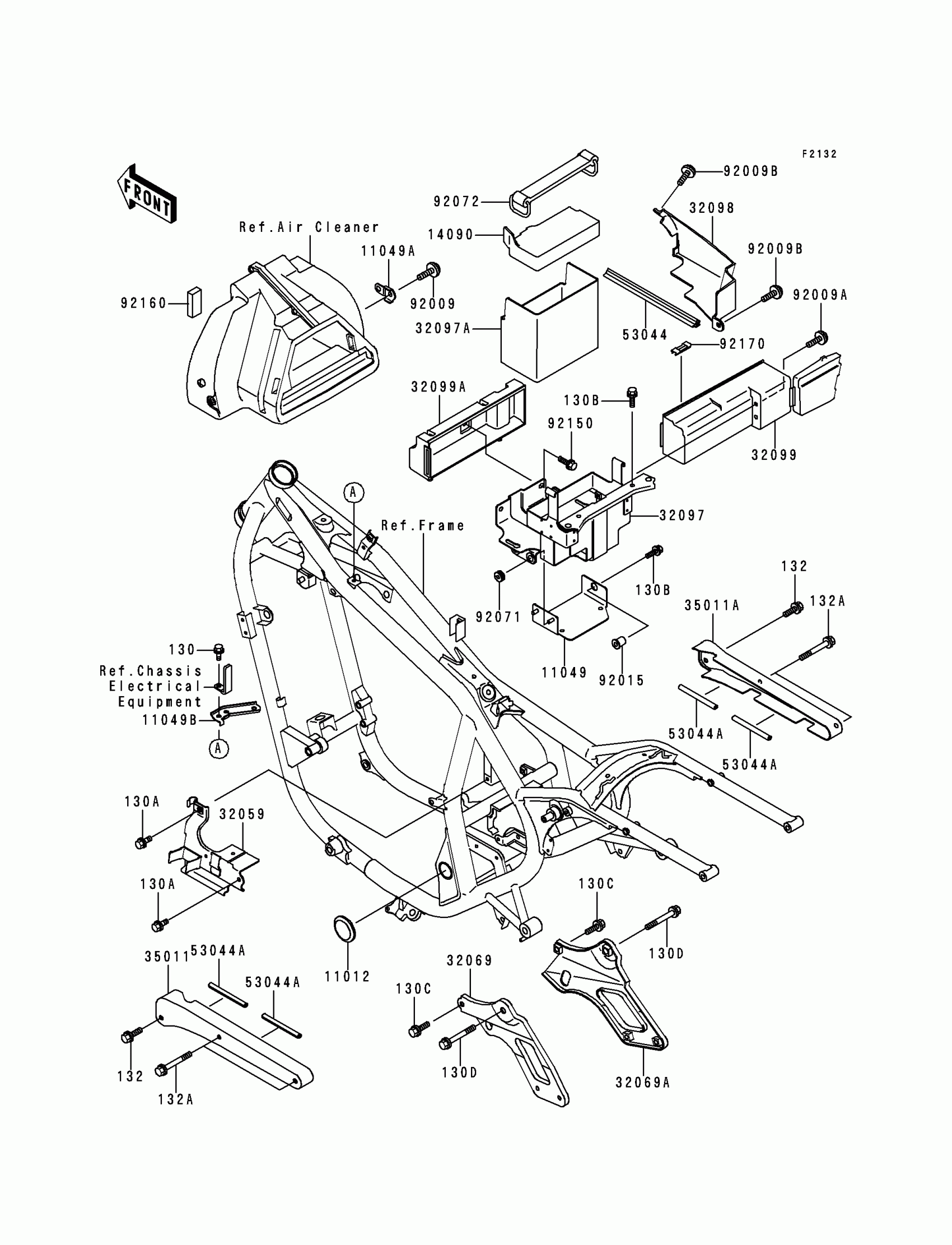

Kawasaki Vulcan 500 LTD Battery Case Diagram

BOLT,FLANGED,6X14

BOLT-FLANGED

BOLT-FLANGED,6X16,BLACK

BOLT-FLANGED,8X14

BOLT-FLANGED,10X55

BOLT-FLANGED-SMALL,8X20

BOLT-FLANGED-SMALL,8X50

CAP,PIVOT

BRACKET,IGNITER

BRACKET,AIR CLEANER

BRACKET,THERMOSTAT

COVER,BATTERY

BRACKET-SWITCH

BRACKET-MUFFLER,LH

BRACKET-MUFFLER,RH

CASE-BATTERY

CASE-BATTERY

CASE-TOOL

CASE

CASE

STAY,LH

STAY,RH

TRIM,L=200

TRIM,L=100

SCREW,6X10

SCREW,5X10

SCREW,6X10

NUT

GROMMET

BAND,L=142.1

BOLT,6X16

DAMPER

CLAMP
