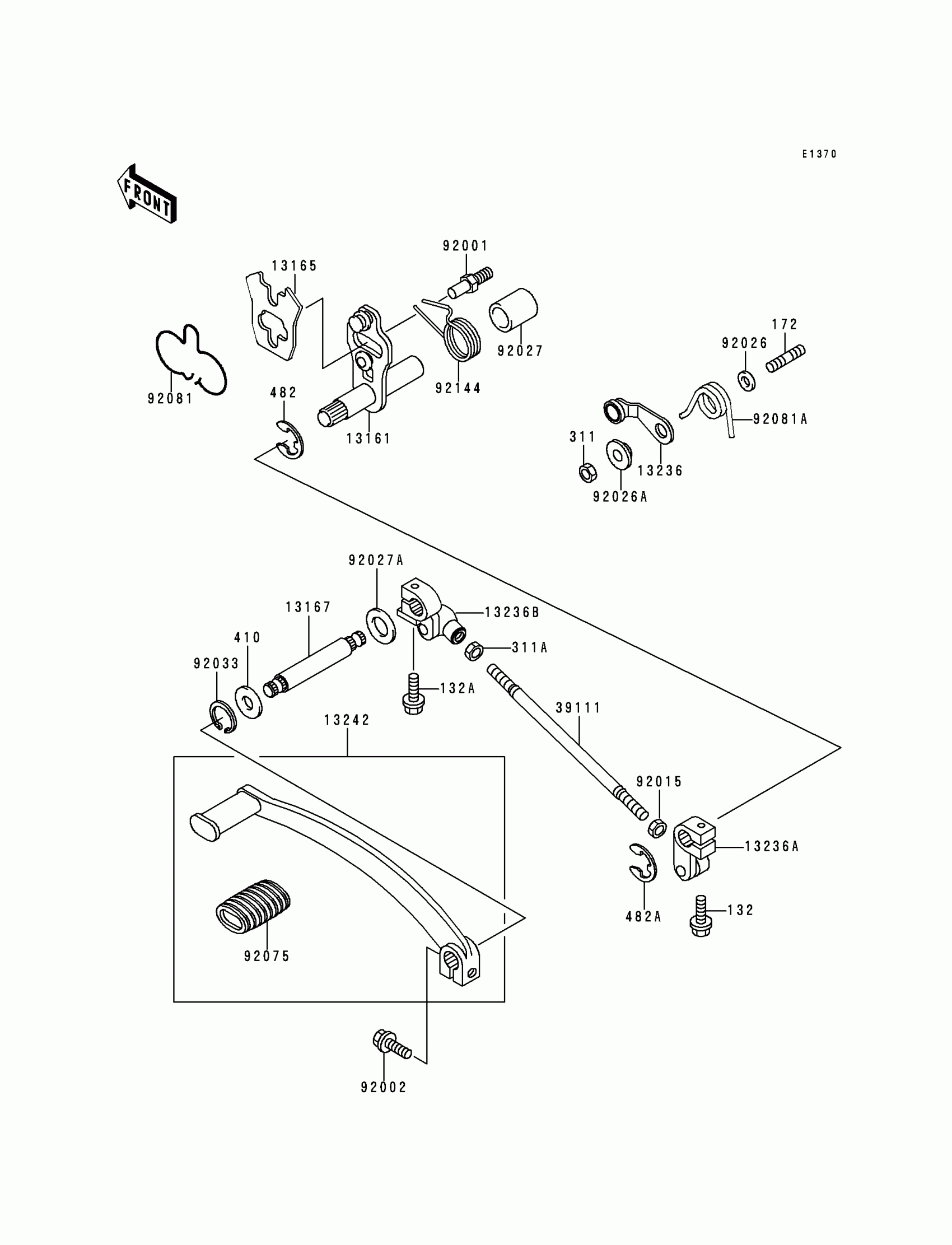

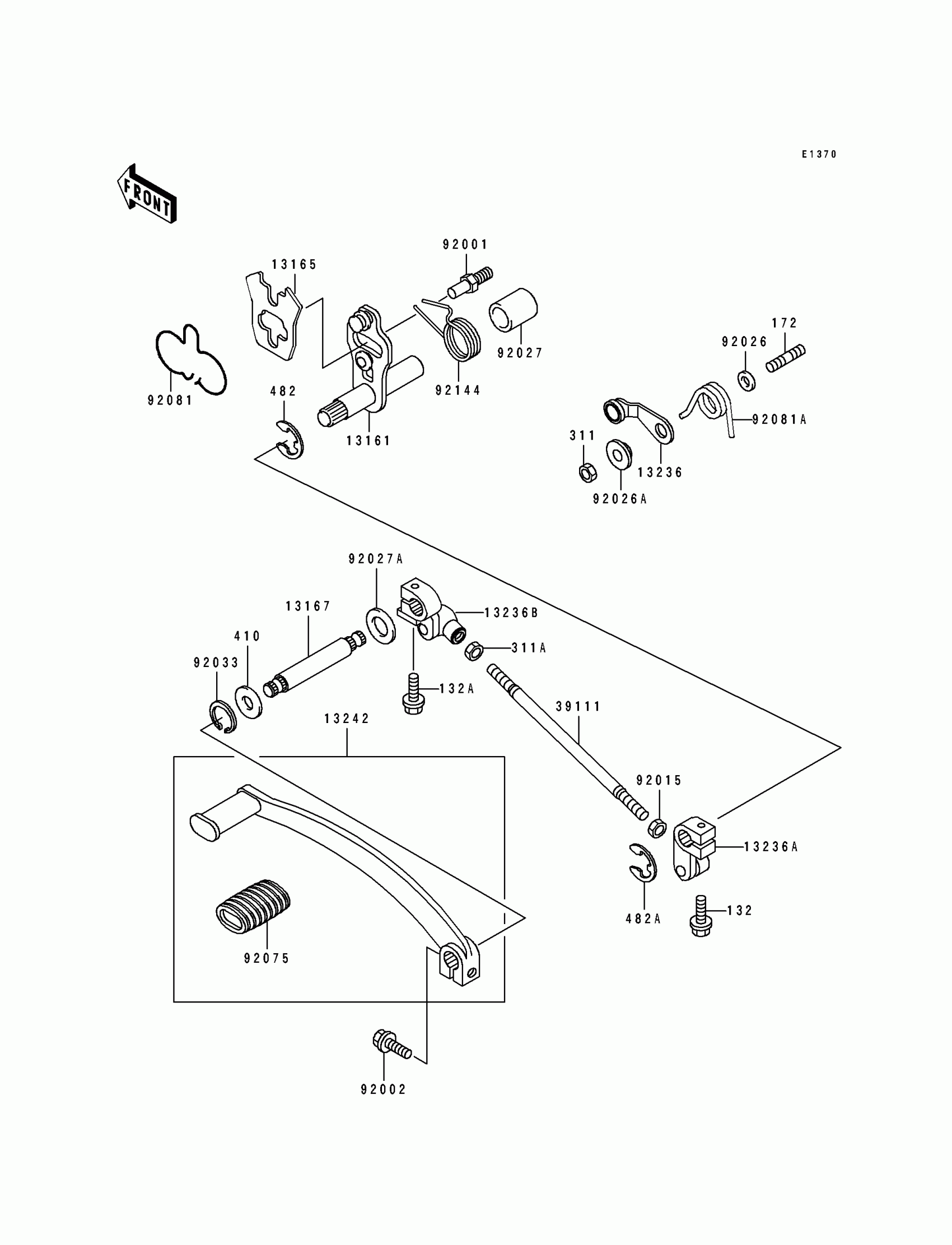

Kawasaki Vulcan 500 Gear Change Mechanism Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

172

BOLT-STUD,6X14

172G0614

$1.74

311

NUT-HEX,6MM

311G0600

$2.19

311A

NUT-HEX

311J0600

$1.01

410

WASHER-PLAIN-SMALL,12MM,BLACK

410F1200

$4.58

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

482A

CIRCLIP-TYPE-E

482L7000

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-1117

$67.07

13165

PAWL,CHANGE LEVER

13165-1034

$9.88

13167

SHAFT-CHANGE

13167-1059

$60.46

13236

LEVER-COMP,GEAR POSITION

13236-1103

$19.85

13236A

LEVER-COMP,CHANGE

13236-1123

$86.06

13236B

LEVER-COMP,CHANGE

13236-1124

$88.37

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1201

Unavailable

39111

ROD-TIE

39111-1071

$10.88

92001

BOLT,RETURN SPRING

92001-1455

$4.69

92002

BOLT,6X20

92002-1237

$4.31

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92026

SPACER,6.3X12X1.0

92026-094

$9.18

92026A

SPACER

92026-1217

$5.52

92027

COLLAR,13X18.3X21.5

92027-1440

$5.52

92027A

COLLAR,13.2X22X5.5

92027-1855

$11.91

92033

RING-SNAP,11MM

92033-1189

$4.76

92075

DAMPER

92075-1585

$9.45

92081

SPRING,CHANGE LEVER

92081-1785

$9.80

92081A

SPRING,POSITION LEVER

92081-1786

$9.80

92144

SPRING,CHANGE PEDAL RETURN

92144-1644

$9.80
