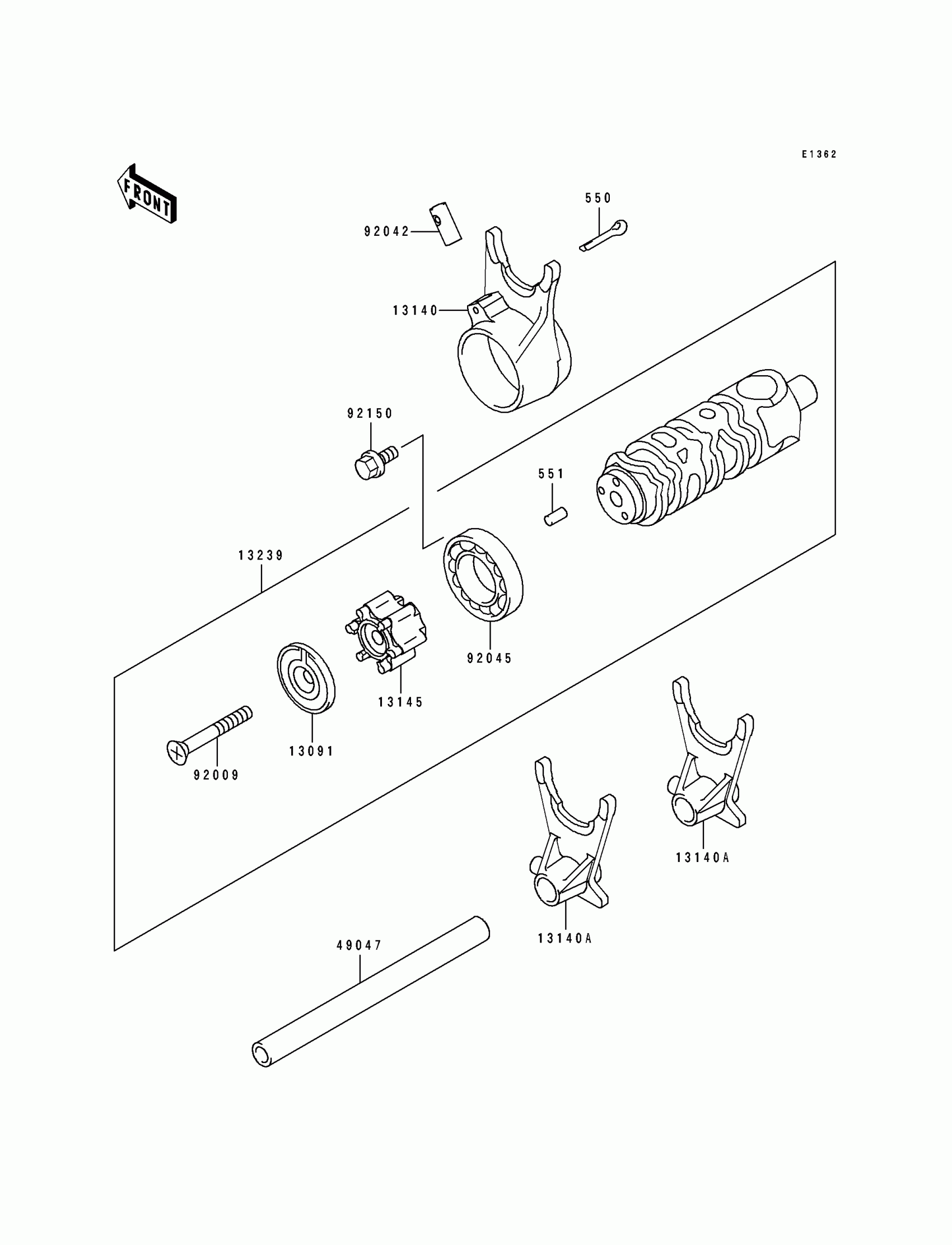

Kawasaki Vulcan 500 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1351

$30.56

13140

FORK-SHIFT,DRIVE

13140-1016

$109.79

13140A

FORK-SHIFT,OUTPUT

13140-1062

$109.79

13145

CAM-CHANGE DRUM

13145-1056

$63.61

13239

DRUM-ASSY-CHANGE

13239-1118

$191.14

49047

ROD-SHIFT

49047-1061

$25.80

92009

SCREW,6X45

92009-1599

$3.96

92042

PIN,DOWEL,8X18

92042-021

$11.51

92045

BEARING-BALL,#6905

92045-036

$27.88

92150

BOLT,FLANGED,6X12

92150-1826

$3.65

550

PIN-COTTER,3.0X20

550D3020

$1.78

551

PIN-DOWEL,4X8

551A0408

$0.78
