1996 Kawasaki Vulcan 500 Engine Cover Diagram

← All diagrams

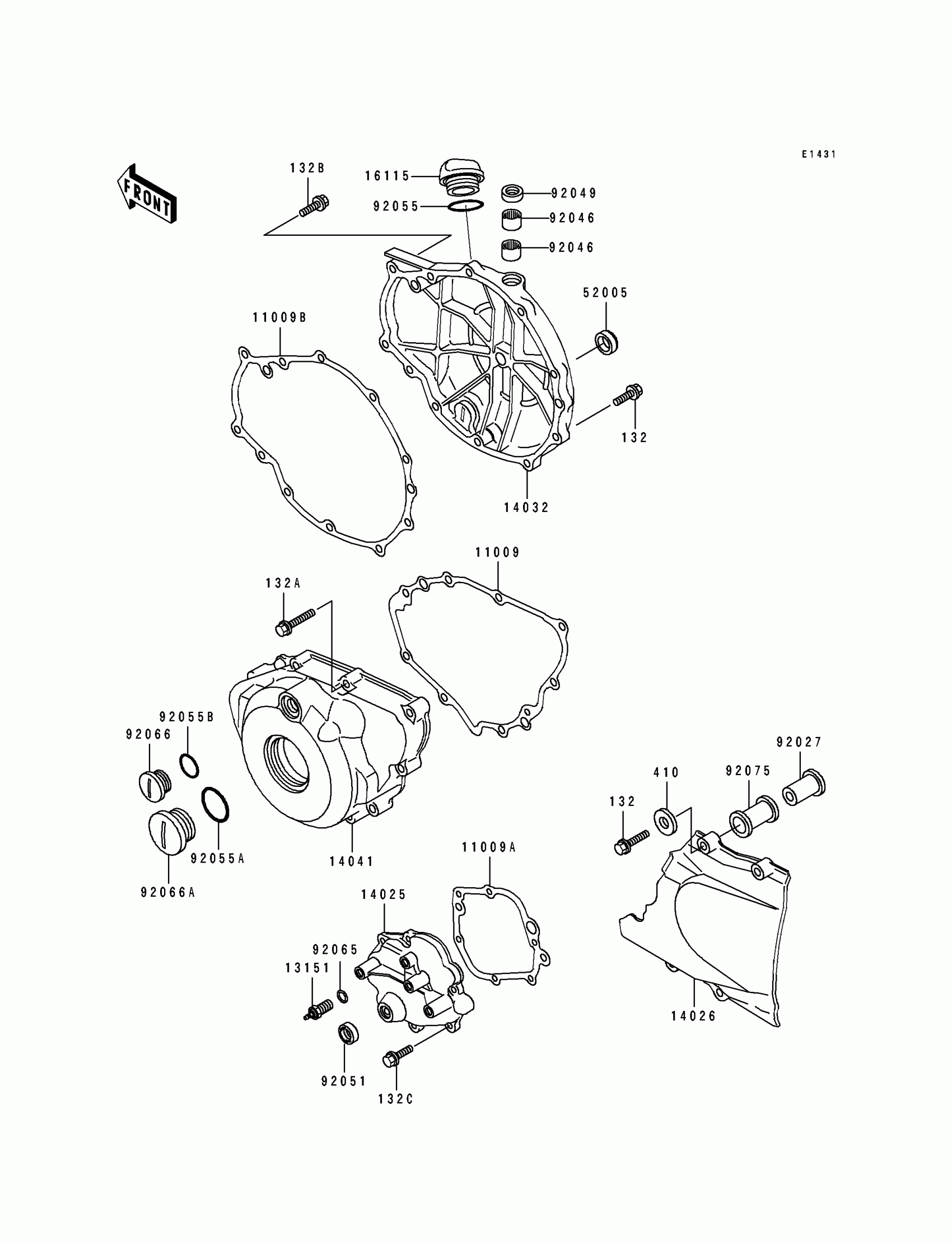

Find the part on the Engine Cover diagram for your 1996 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Vulcan 500 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,GENERATOR COVER

11009-1834

1
Out of stock

11009A

GASKET,CHANGE MECHANISM COVER

11009-1835

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1836

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1

$8.20

In stock

14025

COVER,CHANGE MECHANISM

14025-1986

1
Out of stock

14026

COVER-CHAIN

14026-1204

1
Out of stock

14032

COVER-CLUTCH

14032-1377

1

$261.50

In stock

14041

COVER-COMP,GENERATOR

14041-1115

1
Out of stock

16115

CAP-OIL FILLER

16115-1062

1

$18.64

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92027

COLLAR

92027-1858

1

$5.37

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92055B

RING-O,20X2

92055-1146

1

$6.82

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,COVER

92066-1397

1

$14.00

In stock

92066A

PLUG

92066-1404

1

$12.98

In stock

92075

DAMPER

92075-1681

1

$5.37

In stock

132

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132A

1

$5.42

In stock

132B

1

$4.61

In stock

132C

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

410

1

$1.19

In stock
