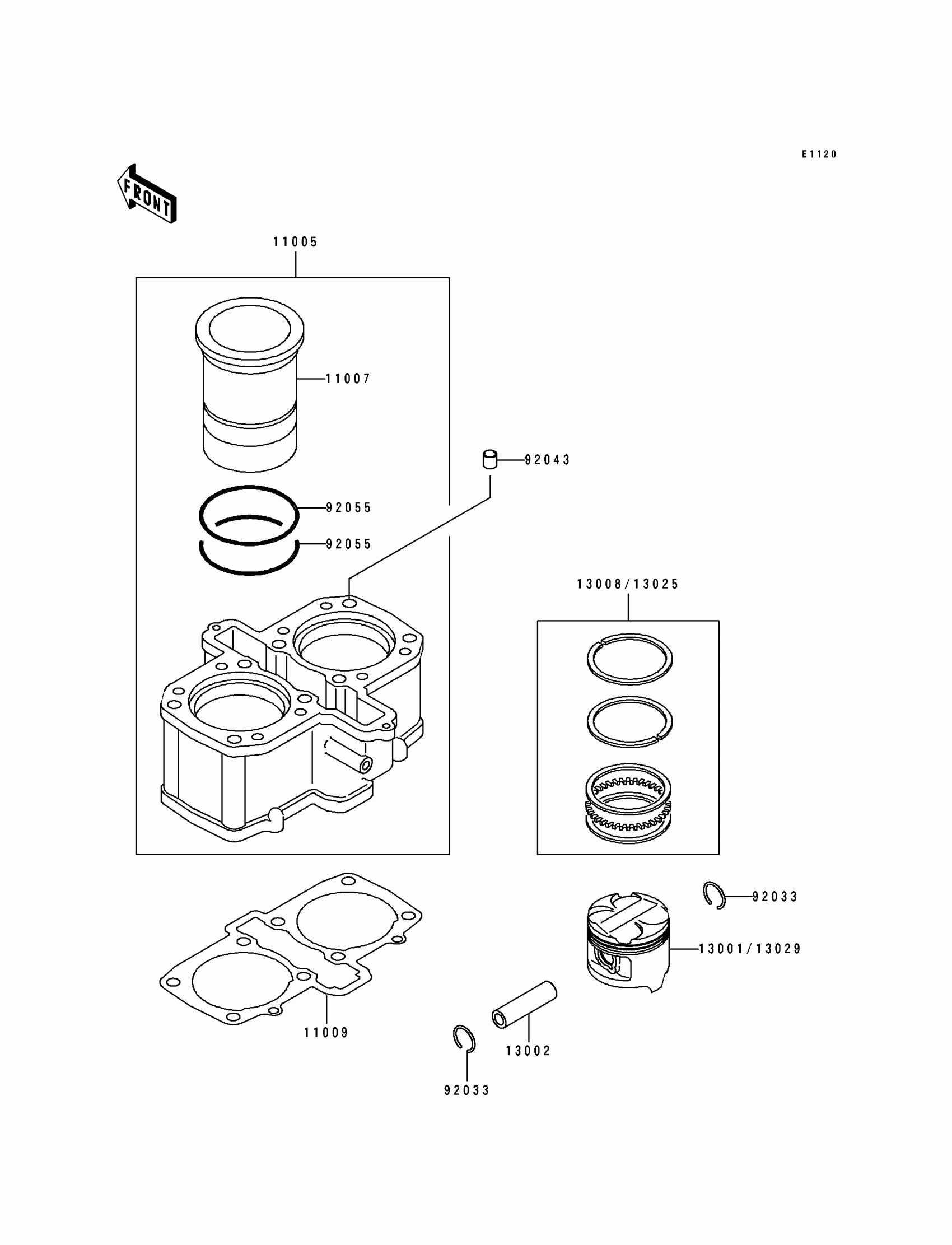

Kawasaki Vulcan 500 Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-1626

$1,274.91

11007

LINER-CYLINDER

11007-1096

$145.42

11009

GASKET,CYLINDER BASE

11009-1640

$48.82

13001

PISTON-ENGINE,STD

13001-1251

$93.88

13002

PIN-PISTON

13002-1058

$28.34

13008

RING-SET-PISTON,STD

13008-1084

$75.68

13025

RING-SET-PISTON L,O/S 0.50

13025-1084

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1160

Unavailable

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92043

PIN,11.5X14X14

92043-1279

$5.00

92055

RING-O,80.6X2.4

92055-1247

$13.07
