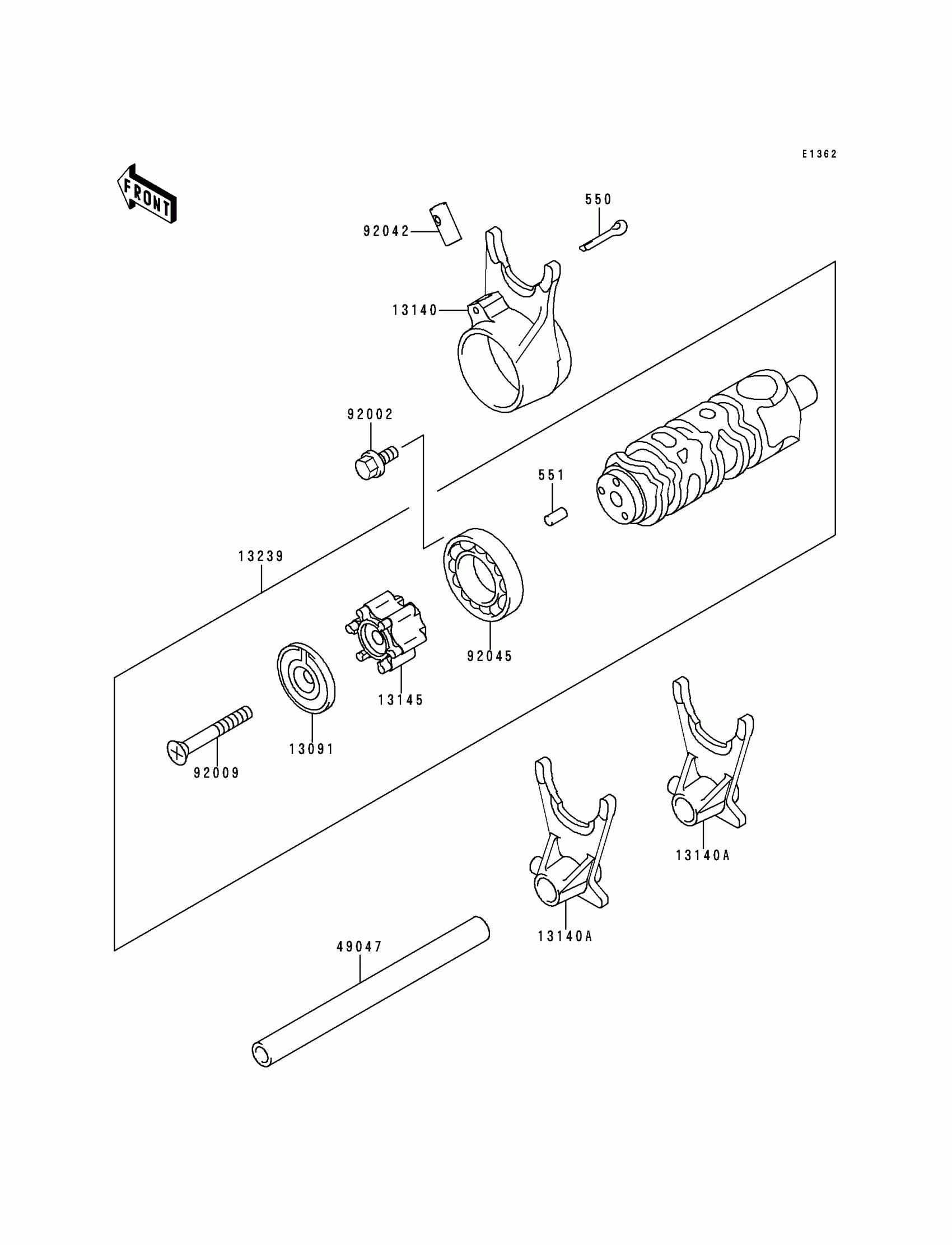

Kawasaki Vulcan 500 Gear Change Drum/Shift Forks Diagram

Description

Price

550

PIN-COTTER,3.0X20

550D3020

$1.53

551

PIN-DOWEL,4X8

551A0408

$0.80

13091

HOLDER,CHANGE DRUM

13091-1351

$31.15

13140

FORK-SHIFT,DRIVE

13140-1016

$112.11

13140A

FORK-SHIFT,OUTPUT

13140-1062

Unavailable

13145

CAM-CHANGE DRUM

13145-1056

$64.81

13239

DRUM-ASSY-CHANGE

13239-1118

$195.19

49047

ROD-SHIFT

49047-1061

$24.24

92002

BOLT,6X12

92002-1572

$3.20

92009

SCREW,6X45

92009-1599

$3.16

92042

PIN,DOWEL,8X18

92042-021

$9.12

92045

BEARING-BALL,#6905

92045-036

$24.62
