Water Pipe

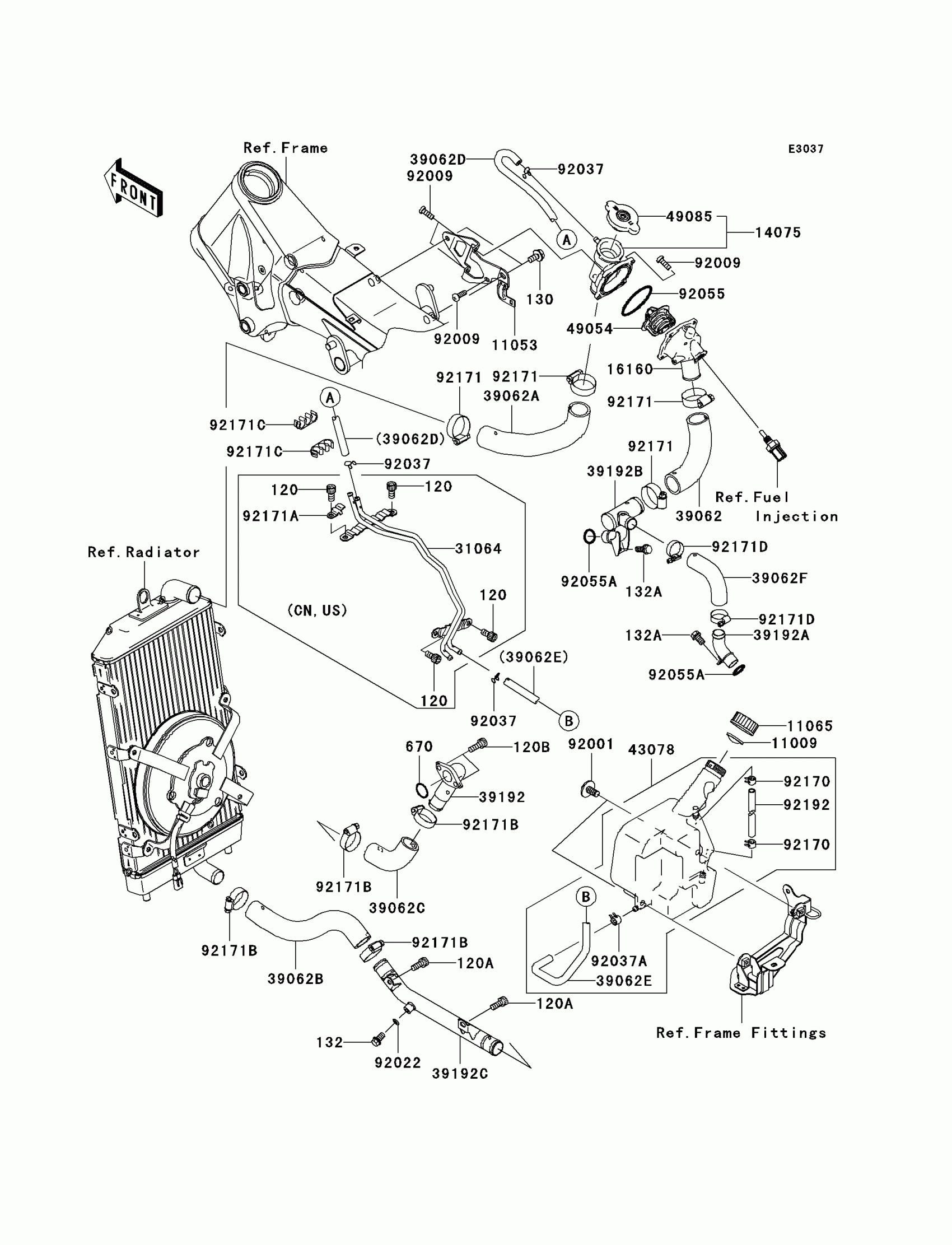

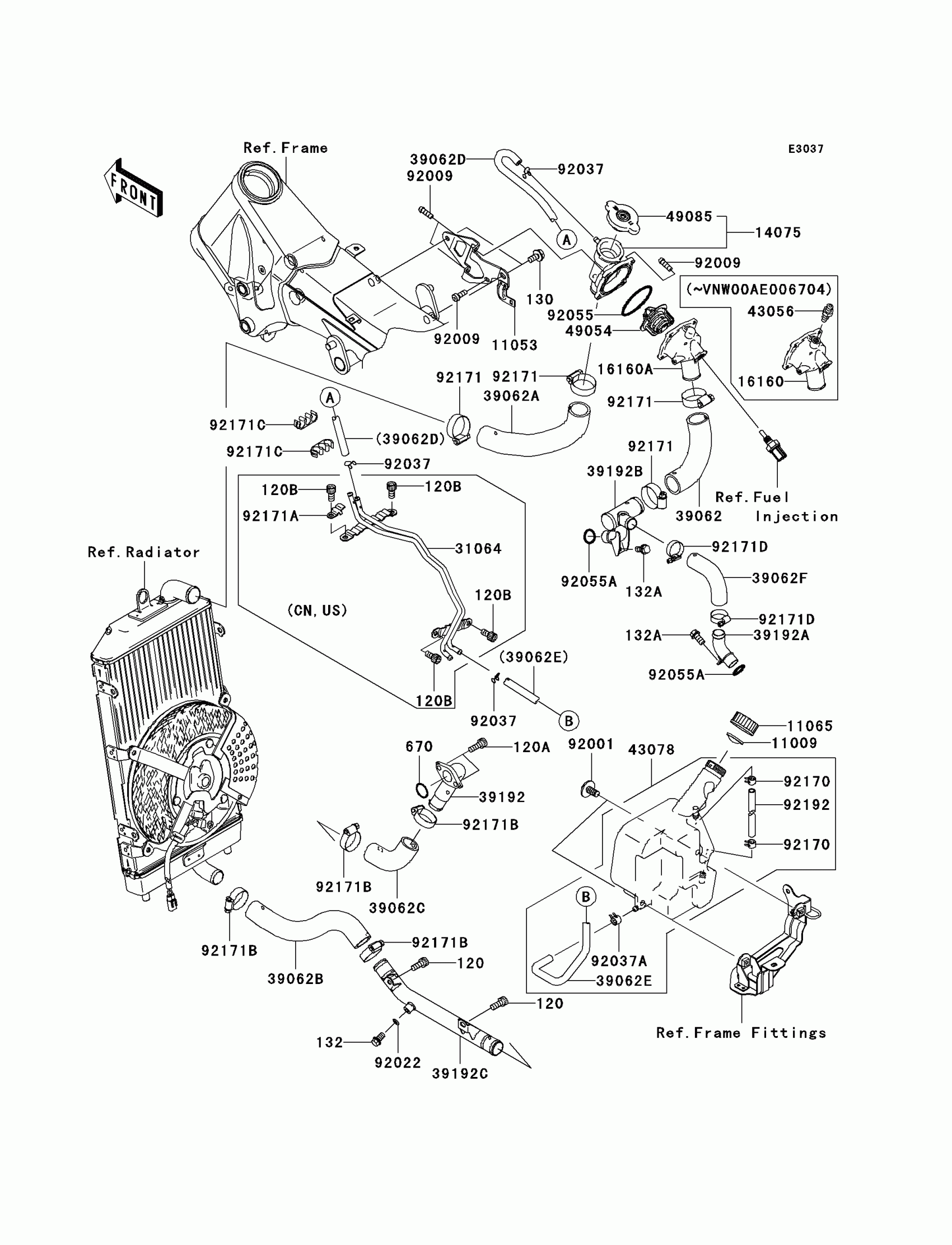

Kawasaki Vulcan® 2000 Water Pipe Diagram
#
120A
BOLT-SOCKET,6X14
120R0614
$3.75
120B
BOLT-SOCKET,6X16
120R0616
$3.65
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11053
BRACKET,THERMOSTAT
11053-0733
$22.29
11065
CAP
11065-0063
$4.19
14075
CAP-ASSY
14075-0001
$142.53
16160
BODY,THERMOSTAT
16160-0095
$65.53
39062
HOSE-COOLING,THERMO-PIPE
39062-0004
$23.16
39062A
HOSE-COOLING,THERMO-RADIATOR
39062-0005
$23.16
39062B
HOSE-COOLING,RADIATOR-PIPE
39062-0008
$23.16
39062C
HOSE-COOLING,PIPE-WATER PUMP
39062-0009
$10.97
39062D
HOSE-COOLING,L=797
39062-0047
$14.69
39062E
HOSE-COOLING,RESERVOIR-PIPE
39062-0062
$11.71
39062F
HOSE-COOLING,RR HEAD-PIPE
39062-0064
$11.71
39192
PIPE-WATER
39192-0001
$46.24
39192A
PIPE-WATER,RR HEAD
39192-0007
$31.98
39192B
PIPE-WATER,FR HEAD
39192-0008
$65.26
39192C
PIPE-WATER,RADIATOR-W/P
39192-0009
$65.26
43078
RESERVOIR
43078-0020
$82.10
49054
THERMOSTAT
49054-1067
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
92001
BOLT,6X16
92001-1950
$4.31
92009
SCREW,5X14
92009-1341
$4.18
92022
WASHER,6.2X11X1
92022-304
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,TUBE
92037-1505
$4.76
92055
RING-O,53.5X2.6
92055-112
$6.63
92055A
RING-O,16.8X2.4
92055-1258
$4.92
92170
CLAMP
92170-1493
$5.00
92171
CLAMP
92171-0179
$8.20
92171B
CLAMP
92171-0261
$16.83
92171C
CLAMP
92171-0334
$5.00
92171D
CLAMP
92171-0338
$8.36
92192
TUBE,7X10X120
92192-0010
$5.18
130
BOLT-FLANGED,6X12
130BB0612
$2.34
132
BOLT-FLANGED-SMALL,6X10
132BB0610
$2.49
132A
BOLT-FLANGED-SMALL,6X12
132BB0612
$2.06
670
O RING,20MM
670B2020
$1.22
120
BOLT-SOCKET,6X12
120CB0612
$2.49
31064
PIPE-COMP
31064-0011
$140.04
92171A
CLAMP
92171-0209
$8.50
