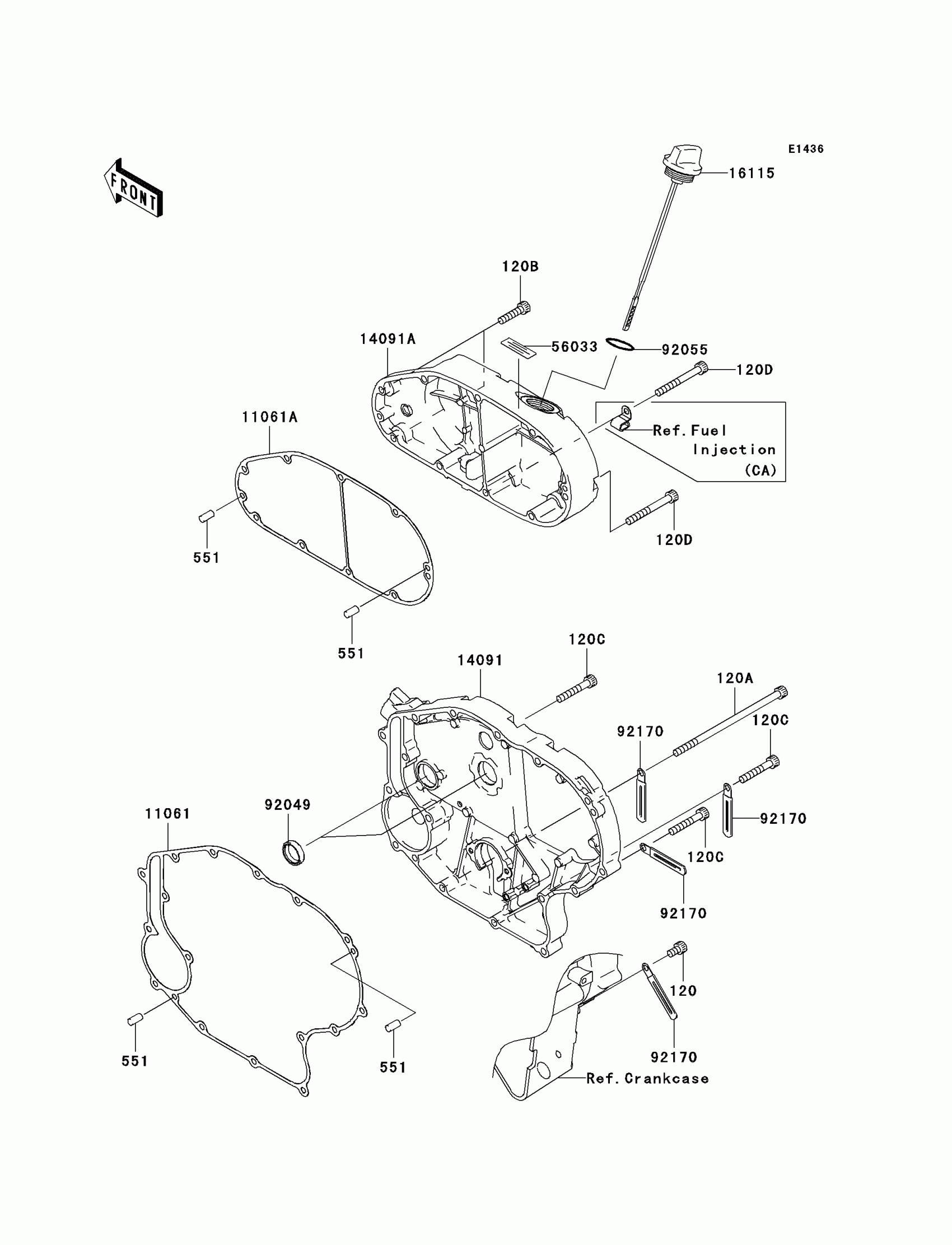

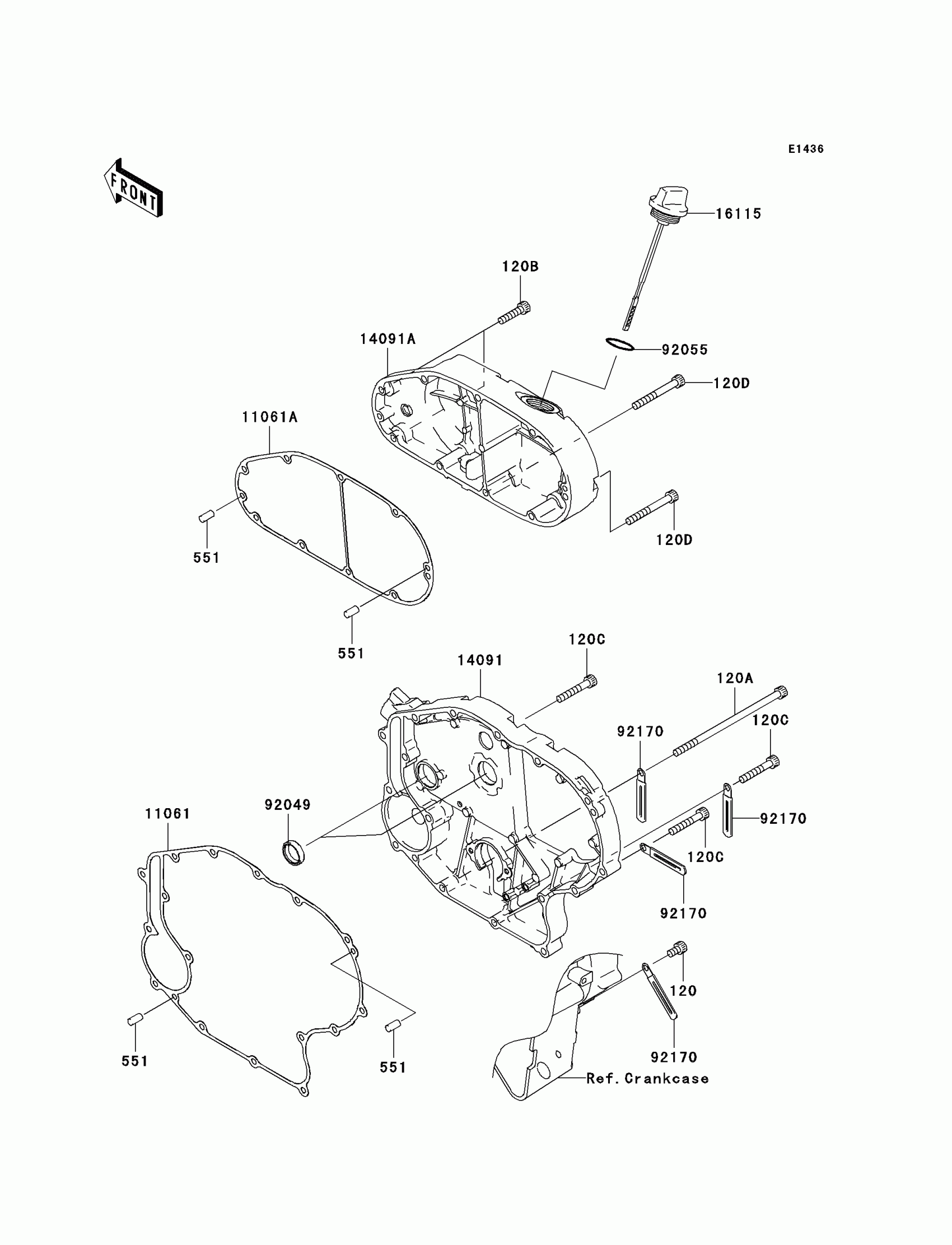

Kawasaki Vulcan® 2000 Right Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120R0610

$2.48

120A

BOLT-SOCKET,6X125

120R06125

$11.82

120B

BOLT-SOCKET,6X25

120R0625

$4.18

120C

BOLT-SOCKET,6X35

120R0635

$5.00

120D

BOLT-SOCKET,6X50

120R0650

$5.33

551

PIN-DOWEL,6X12

551A0612

$0.94

11061

GASKET,TRANSMISSION,INSIDE

11061-0017

$36.09

11061A

GASKET,TRANSMISSION,OUTSIDE

11061-0018

$23.16

14091

COVER,TRANSMISSION,INSIDE

14091-0251

$435.03

14091A

COVER,TRANSMISSION OUTSIDE

14091-0881

$501.43

16115

CAP-OIL FILLER

16115-0018

$96.38

92049

SEAL-OIL,20X26X6

92049-0019

$15.20

92055

RING-O,31.5X2.6

92055-049

$4.31

92170

CLAMP

92170-1514

$4.31
