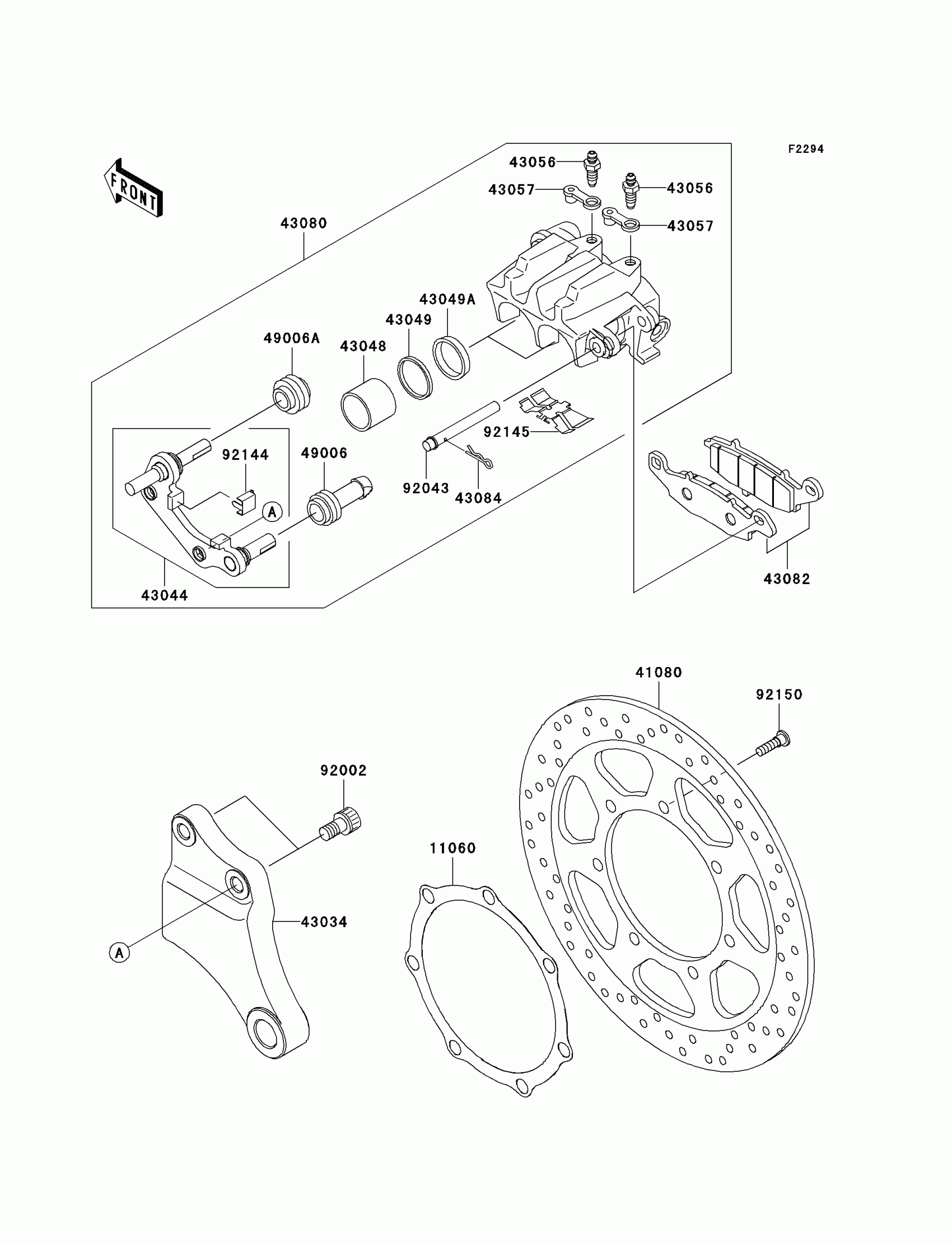

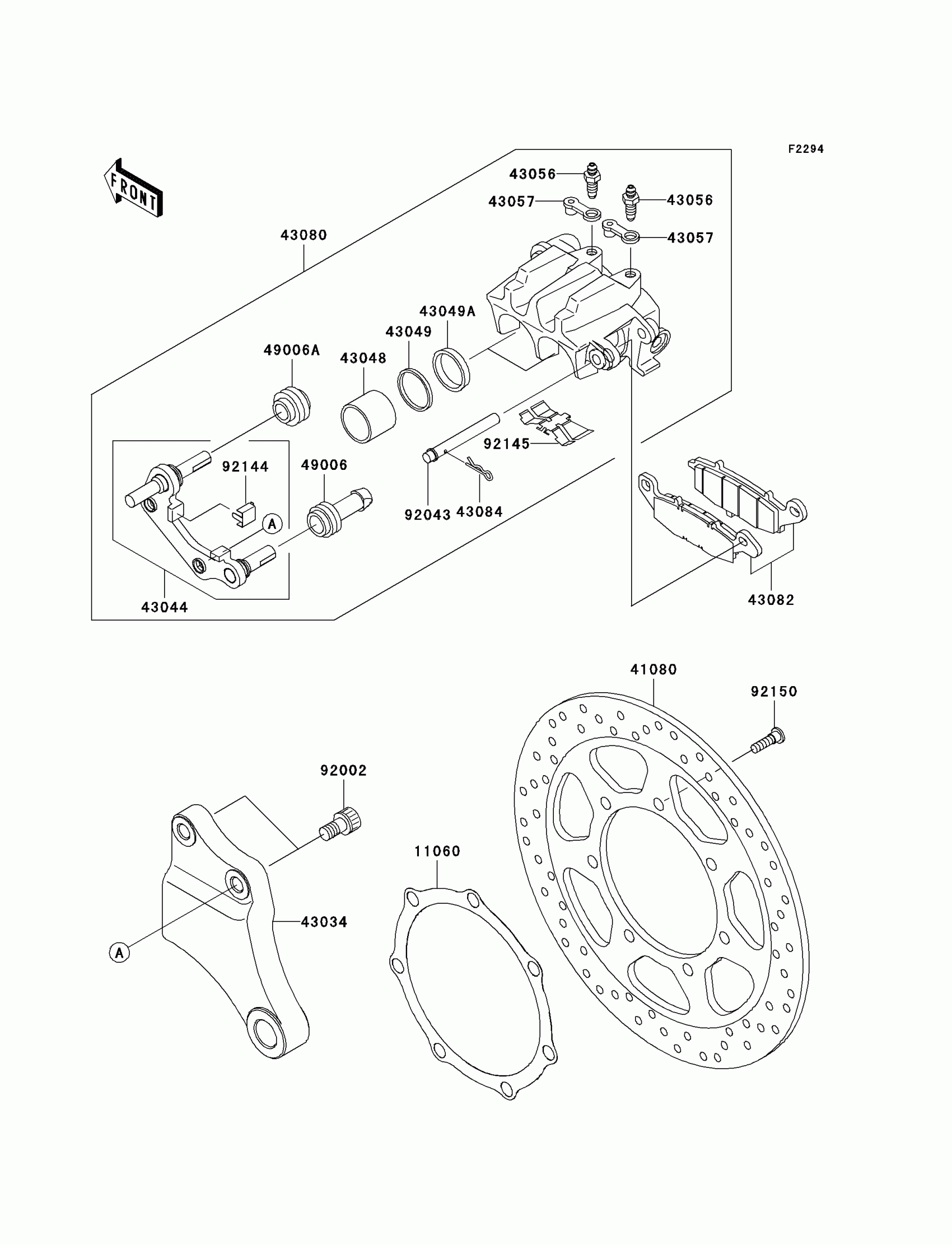

Kawasaki Vulcan® 2000 Rear Brake Diagram

Description

Price

11060

GASKET,DISC

11060-1865

$22.61

41080

DISC,RR,BLACK

41080-0153-11H

$369.52

43034

HOLDER-BRAKE,REAR CALIPER

43034-0033

$189.36

43044

HOLDER-COMP-CALIPER,RR

43044-1134

$175.85

43048

PISTON-CALIPER

43048-1094

$59.39

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5098-DJ

$371.03

43082

PAD-ASSY-BRAKE

43082-0052

$70.29

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92002

BOLT,SOCKET,10X17

92002-1713

$7.34

92043

PIN,PAD

92043-1640

$6.36

92144

SPRING,STOPPER

92144-1831

$5.46

92145

SPRING,PAD

92145-1382

$16.24

92150

BOLT,SOCKET,8X30

92150-1771

$4.69
