Description

Price

120

BOLT-SOCKET,6X12

120P0612

$1.60

120A

BOLT-SOCKET,6X10

120R0610

$2.48

120B

BOLT-SOCKET,6X16

120T0616

$2.33

120C

BOLT-SOCKET,6X30

120W0630

$2.95

551

PIN-DOWEL

551R0408

$5.38

670

O RING,10MM

670D1510

$4.69

670A

O RING,14MM

670D2014

$5.52

670B

O RING,16MM

670D2016

$1.70

13271

PLATE,FILTER BASE

13271-0218

$84.68

13280

HOLDER

13280-0008

$8.72

14014

PLATE-POSITION

14014-0013

$2.38

14043

FILTER

14043-0004

$47.86

16097

FILTER-ASSY-OIL

16097-1072

$14.50

16126

VALVE,CHECK

16126-0009

$4.39

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32154

PIPE

32154-0077

$53.07

32154A

PIPE,CRANKCASE-MISSION COVER

32154-0427

$146.73

39193

PIPE-OIL,CLUTCH COVER-OIL PUMP

39193-0016

$34.46

41077

ADAPTER

41077-0003

$41.24

41077A

ADAPTER

41077-0010

$43.21

49065

FILTER-OIL

49065-0001

$34.84

92022

WASHER,6.2X11X1

92022-304

$3.65

92055

RING-O,20.8X1.9

92055-1259

$6.64

92055A

RING-O,OIL FILTER

92055-1503

$9.51

92055B

RING-O,12.3X1.9

92055-1594

$2.34

92145

SPRING

92145-0134

$3.23

92151

BOLT,SOCKET,6X16

92151-3770

$2.38

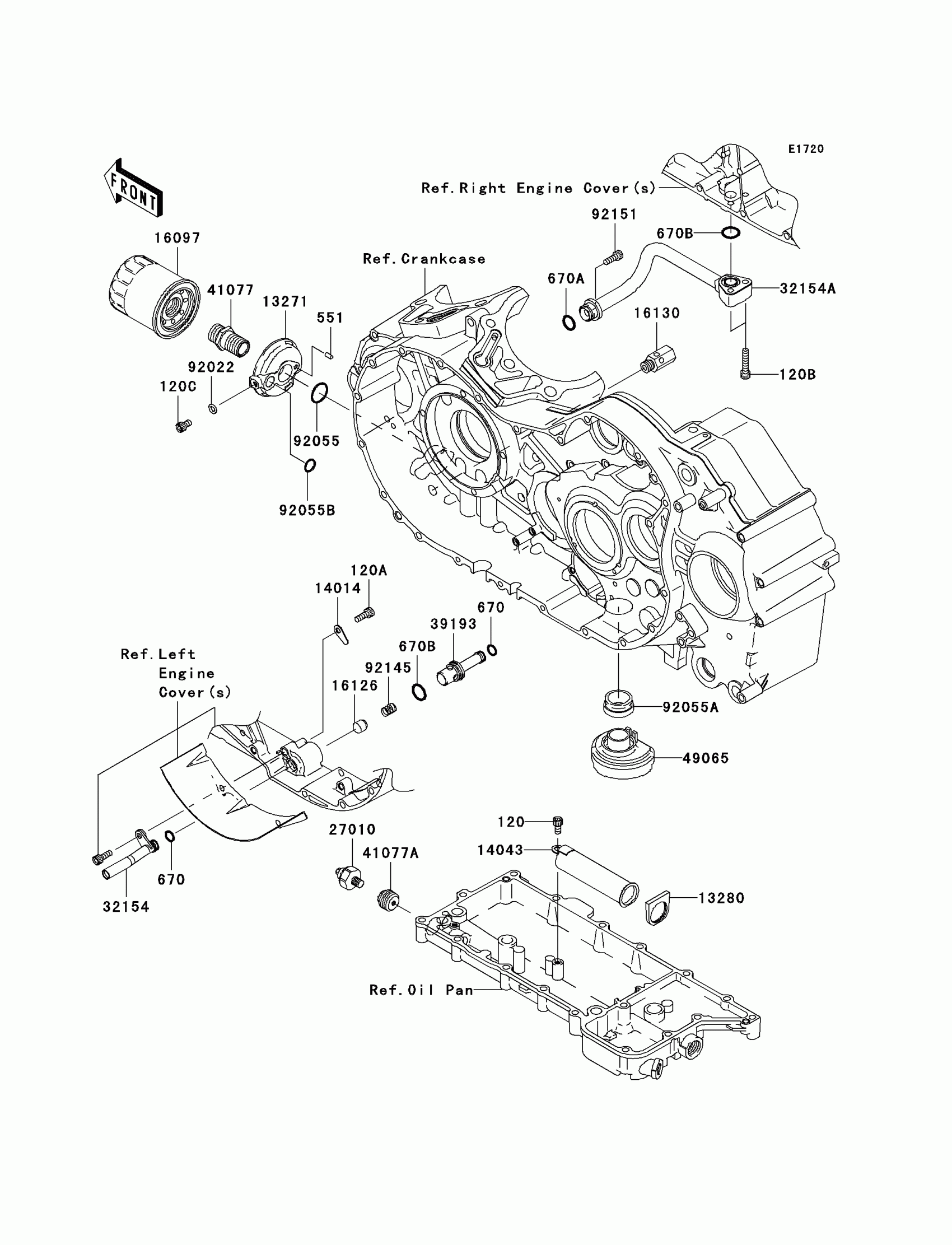

Kawasaki Vulcan 2000 Oil Filter Diagram

BOLT-SOCKET,6X12

BOLT-SOCKET,6X10

BOLT-SOCKET,6X16

BOLT-SOCKET,6X30

PIN-DOWEL

O RING,10MM

O RING,14MM

O RING,16MM

PLATE,FILTER BASE

HOLDER

PLATE-POSITION

FILTER

FILTER-ASSY-OIL

VALVE,CHECK

VALVE-ASSY-RELIEF

SWITCH,OIL PRESSURE

PIPE

PIPE,CRANKCASE-MISSION COVER

PIPE-OIL,CLUTCH COVER-OIL PUMP

ADAPTER

ADAPTER

FILTER-OIL

WASHER,6.2X11X1

RING-O,20.8X1.9

RING-O,OIL FILTER

RING-O,12.3X1.9

SPRING

BOLT,SOCKET,6X16
