Description

Price

120

BOLT-SOCKET,6X22

120S0622

$4.95

120A

BOLT-SOCKET,6X35

120W0635

$1.98

551

PIN-DOWEL,6X12

551A0612

$0.94

11065

CAP

11065-0054

$11.71

13280

HOLDER,HEAD LAMP

13280-0021

$137.94

14091

COVER,HEAD LAMP

14091-0241

$42.81

23006

RIM-LAMP

23006-0003

$238.85

23007

LENS-COMP,HEAD LAMP

23007-0028

$656.13

23017

SOCKET,HEAD LAMP

23017-1067

$90.48

23021

WASHER

23021-010

$4.31

23062

BRACKET-COMP,HEAD LAMP

23062-0017

$65.85

49016

COVER-SEAL,SOCKET

49016-1203

$12.14

55022

COVER-HEAD LAMP,LH

55022-0012

$605.00

55022A

COVER-HEAD LAMP,RH

55022-0013

$622.42

55022B

COVER-HEAD LAMP,UPP

55022-0015

$455.97

92009

SCREW,5X16

92009-1879

$1.06

92015

NUT,5MM

92015-1354

$4.92

92022

WASHER-PLAIN

92022-183

$3.92

92069

BULB,12V 65W,H9

92069-0007

Unavailable

92069A

BULB,12V 55W,H7

92069-1126

Unavailable

92075

DAMPER

92075-104

$5.24

92152

COLLAR

92152-0161

$5.24

92153

BOLT,SOCKET,6X16

92153-0404

$3.07

92153A

BOLT,SOCKET,5X16

92153-0624

$9.92

92153B

BOLT,SOCKET,8X16

92153-0709

$28.50

92172

SCREW,5X16

92172-0142

$3.43

92200

WASHER,8.8X23.5X0.5

92200-0136

$4.43

92210

NUT,5MM

92210-0128

$3.98

92210A

NUT

92210-0129

$3.98

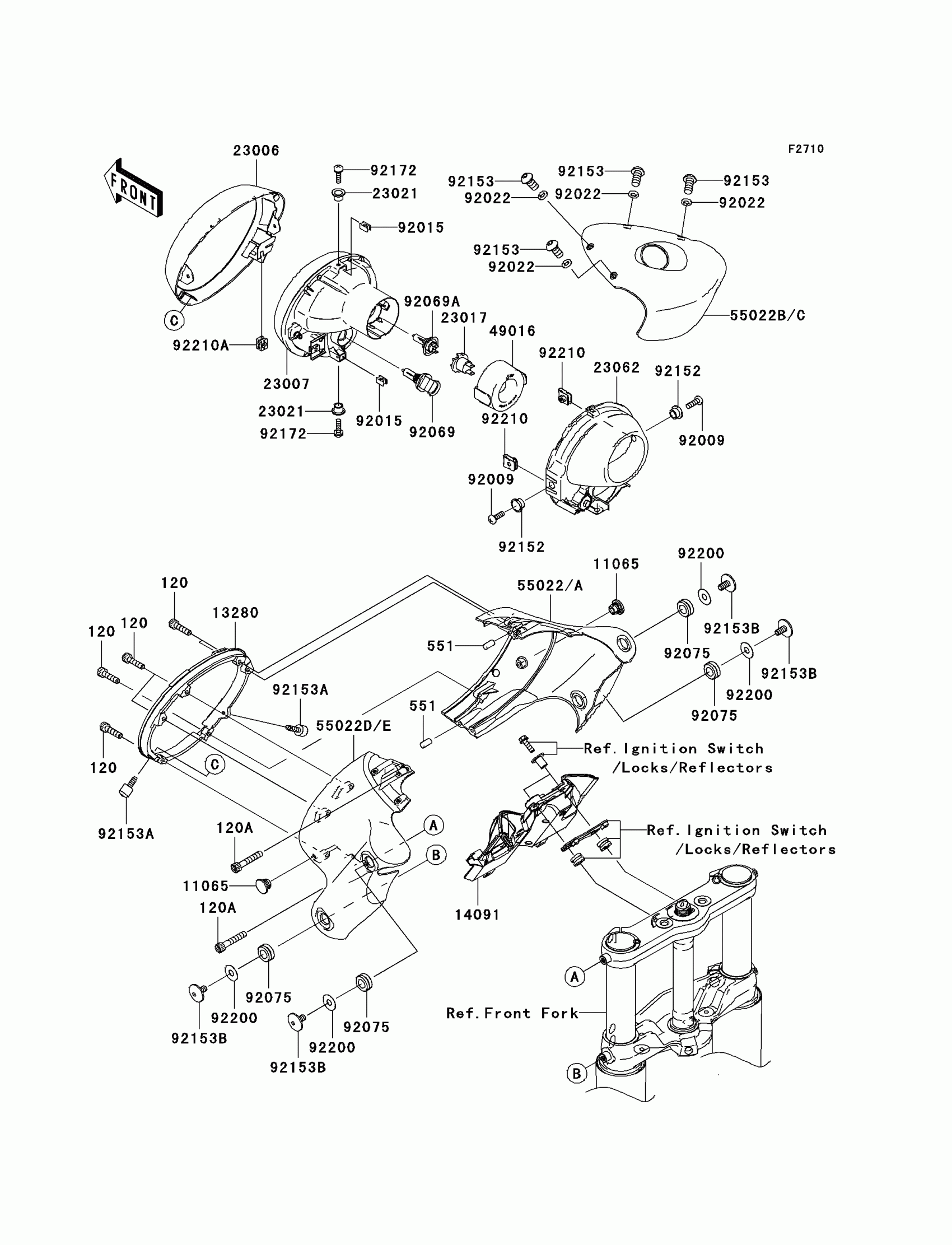

Kawasaki Vulcan 2000 Headlight(s) Diagram

BOLT-SOCKET,6X22

BOLT-SOCKET,6X35

PIN-DOWEL,6X12

CAP

HOLDER,HEAD LAMP

COVER,HEAD LAMP

RIM-LAMP

LENS-COMP,HEAD LAMP

SOCKET,HEAD LAMP

WASHER

BRACKET-COMP,HEAD LAMP

COVER-SEAL,SOCKET

COVER-HEAD LAMP,LH

COVER-HEAD LAMP,RH

COVER-HEAD LAMP,UPP

SCREW,5X16

NUT,5MM

WASHER-PLAIN

BULB,12V 65W,H9

BULB,12V 55W,H7

DAMPER

COLLAR

BOLT,SOCKET,6X16

BOLT,SOCKET,5X16

BOLT,SOCKET,8X16

SCREW,5X16

WASHER,8.8X23.5X0.5

NUT,5MM

NUT
