Description

Price

120

BOLT-SOCKET,6X16

120S0616

$1.23

130

BOLT-FLANGED,10X55

130L1055

$6.21

132

BOLT-FLANGED-SMALL,8X16

132L0816

$3.84

132A

BOLT-FLANGED-SMALL,8X30

132L0830

$4.15

482

CIRCLIP-TYPE-E

482L7000

$3.92

482A

CIRCLIP-TYPE-E,8MM

482L8000

$0.67

21176

SENSOR,BANK

21176-0021

$19.88

34003

HOLDER-STEP,FR,LH

34003-0020

$109.30

34003A

HOLDER-STEP,FR,LH

34003-0026

$139.21

34003B

HOLDER-STEP,FR,RH

34003-0029

$184.11

34003C

HOLDER-STEP,RR

34003-0030

$40.37

34003D

HOLDER-STEP,FR,RH

34003-0031

$139.21

34028

STEP,FR

34028-0011

$107.21

34028A

STEP,RR

34028-0017

$23.45

55020

GUARD,MUFFLER

55020-0099

$36.08

92043

PIN,8X36.5

92043-1339

$7.84

92043A

PIN,10X98.5

92043-1707

$10.49

92092

BUSHING-RUBBER

92092-0005

$18.14

92144

SPRING

92144-1266

$8.79

92161

DAMPER,FOOT BOARD

92161-0126

$78.82

92161A

DAMPER,STEP

92161-1339

$16.53

92200

WASHER,10.3X28X2.3

92200-0113

$6.12

92200A

WASHER,22.5X33X2.3

92200-1482

$2.75

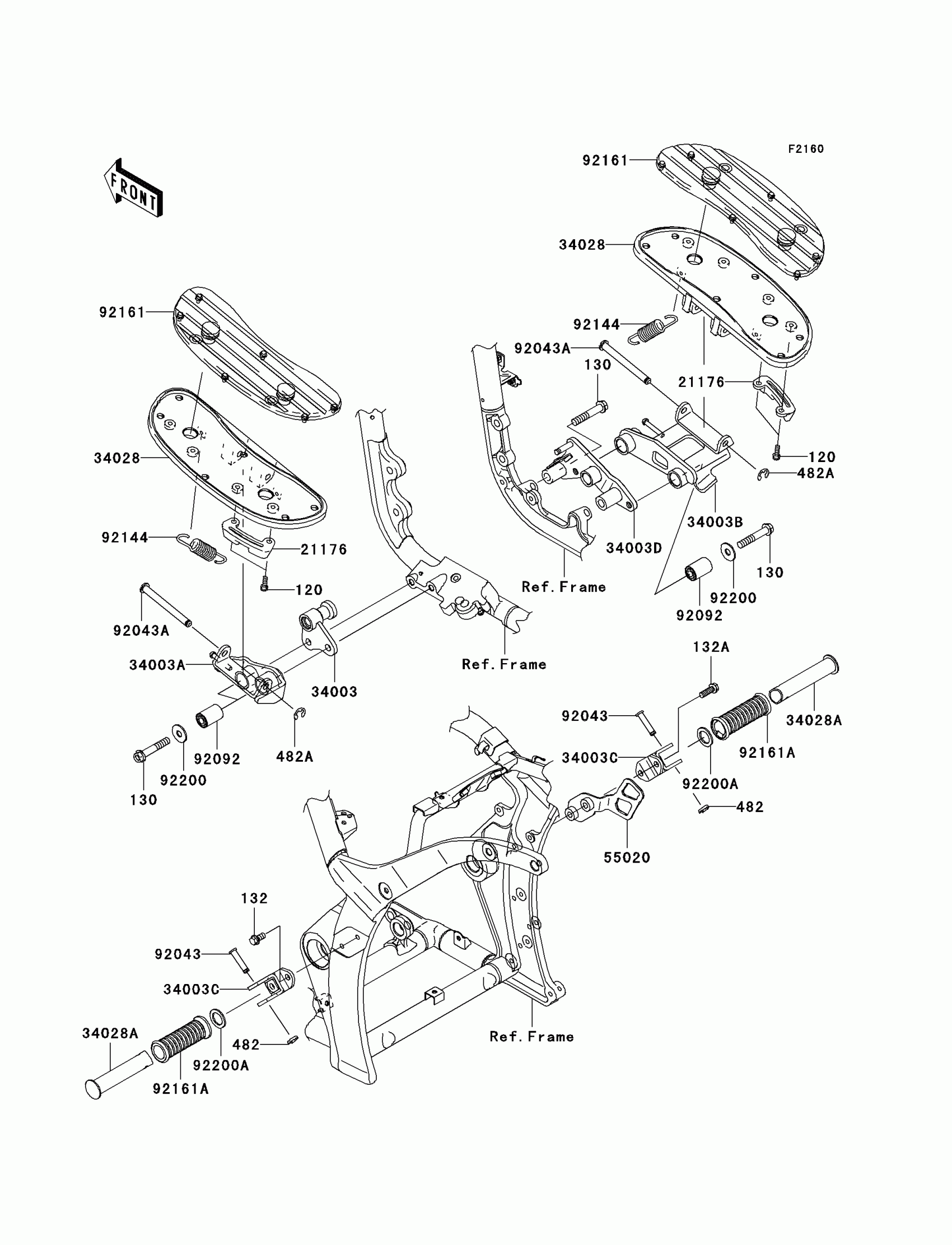

Kawasaki Vulcan 2000 Footrests Diagram

BOLT-SOCKET,6X16

BOLT-FLANGED,10X55

BOLT-FLANGED-SMALL,8X16

BOLT-FLANGED-SMALL,8X30

CIRCLIP-TYPE-E

CIRCLIP-TYPE-E,8MM

SENSOR,BANK

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,RH

HOLDER-STEP,RR

HOLDER-STEP,FR,RH

STEP,FR

STEP,RR

GUARD,MUFFLER

PIN,8X36.5

PIN,10X98.5

BUSHING-RUBBER

SPRING

DAMPER,FOOT BOARD

DAMPER,STEP

WASHER,10.3X28X2.3

WASHER,22.5X33X2.3
