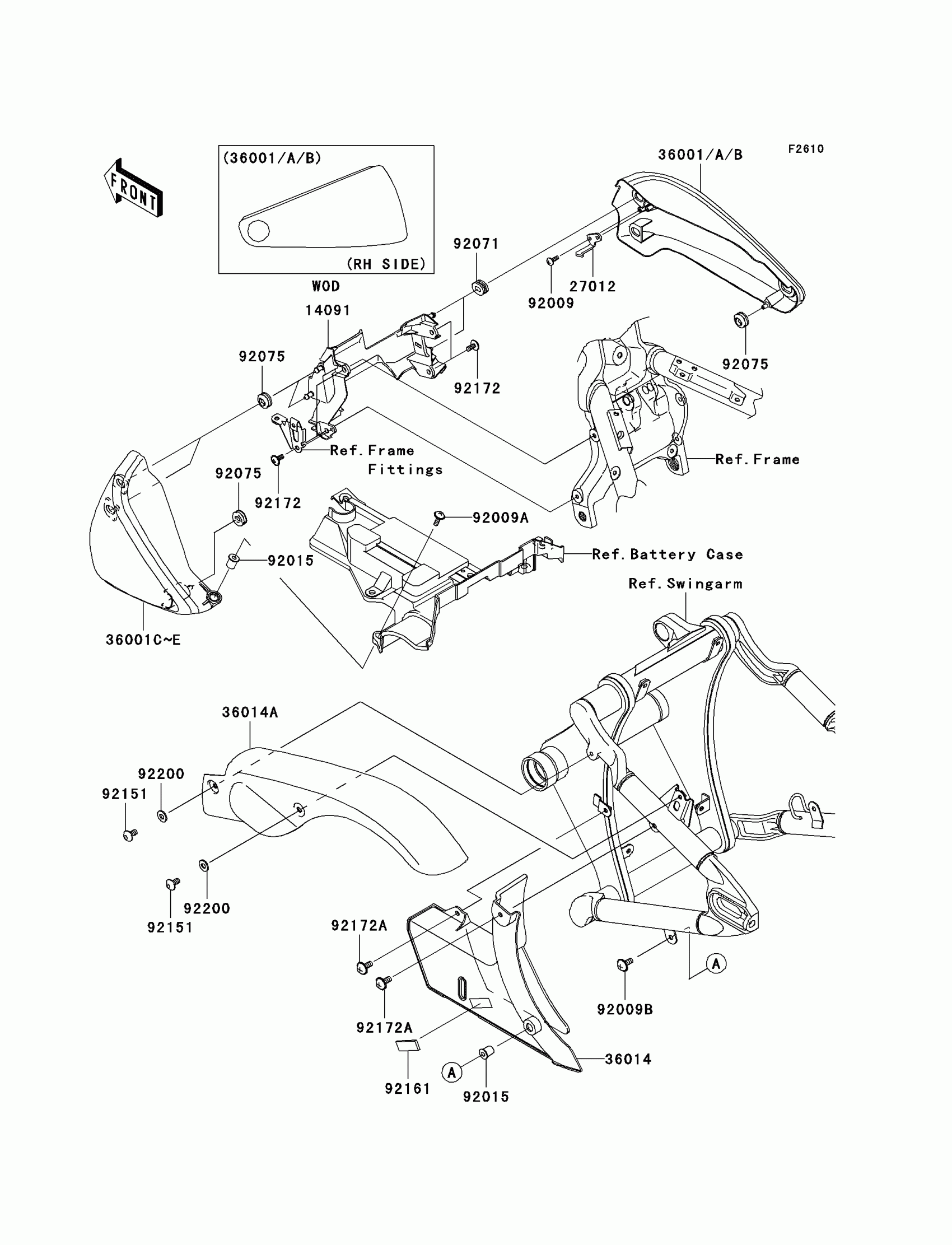

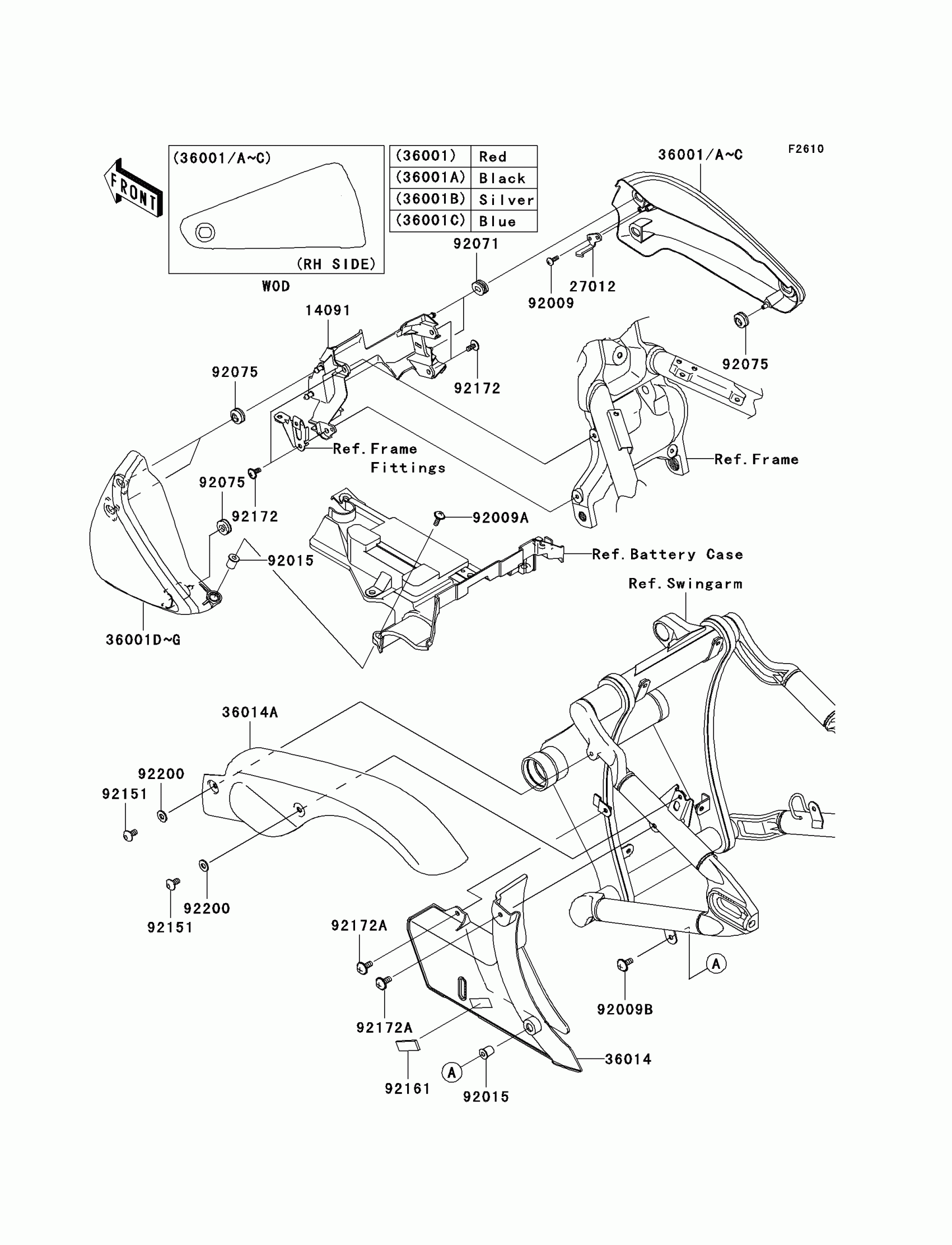

Kawasaki Vulcan 2000 Side Covers/Chain Cover Diagram

Description

Price

14091

COVER,SIDE COVER,CNT

14091-0237

$39.43

27012

HOOK,SIDE COVER,RH

27012-0025

$5.24

36001A

COVER-SIDE,RH,C.C.RED

36001-0031-L1

$252.43

36001B

COVER-SIDE,RH,P.C.WHITE

36001-0031-667

$252.43

36001D

COVER-SIDE,LH,C.C.RED

36001-0035-L1

$252.43

36001E

COVER-SIDE,LH,P.C.WHITE

36001-0035-667

$252.43

36014

CASE-CHAIN,LWR

36014-0014

$50.64

36014A

CASE-CHAIN,UPP

36014-0026

$147.74

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

$4.13

92009A

SCREW,6X25

92009-1465

$3.92

92009B

SCREW,6X14

92009-1662

$3.92

92015

NUT

92015-1700

$8.58

92071

GROMMET

92071-0011

$3.95

92075

DAMPER

92075-1067

$4.69

92151

BOLT,SOCKET,6X12

92151-1940

$3.74

92161

DAMPER

92161-0124

$3.44

92172

SCREW,6X14

92172-0004

$2.80

92172A

SCREW,6X14

92172-0140

$5.24

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.74
