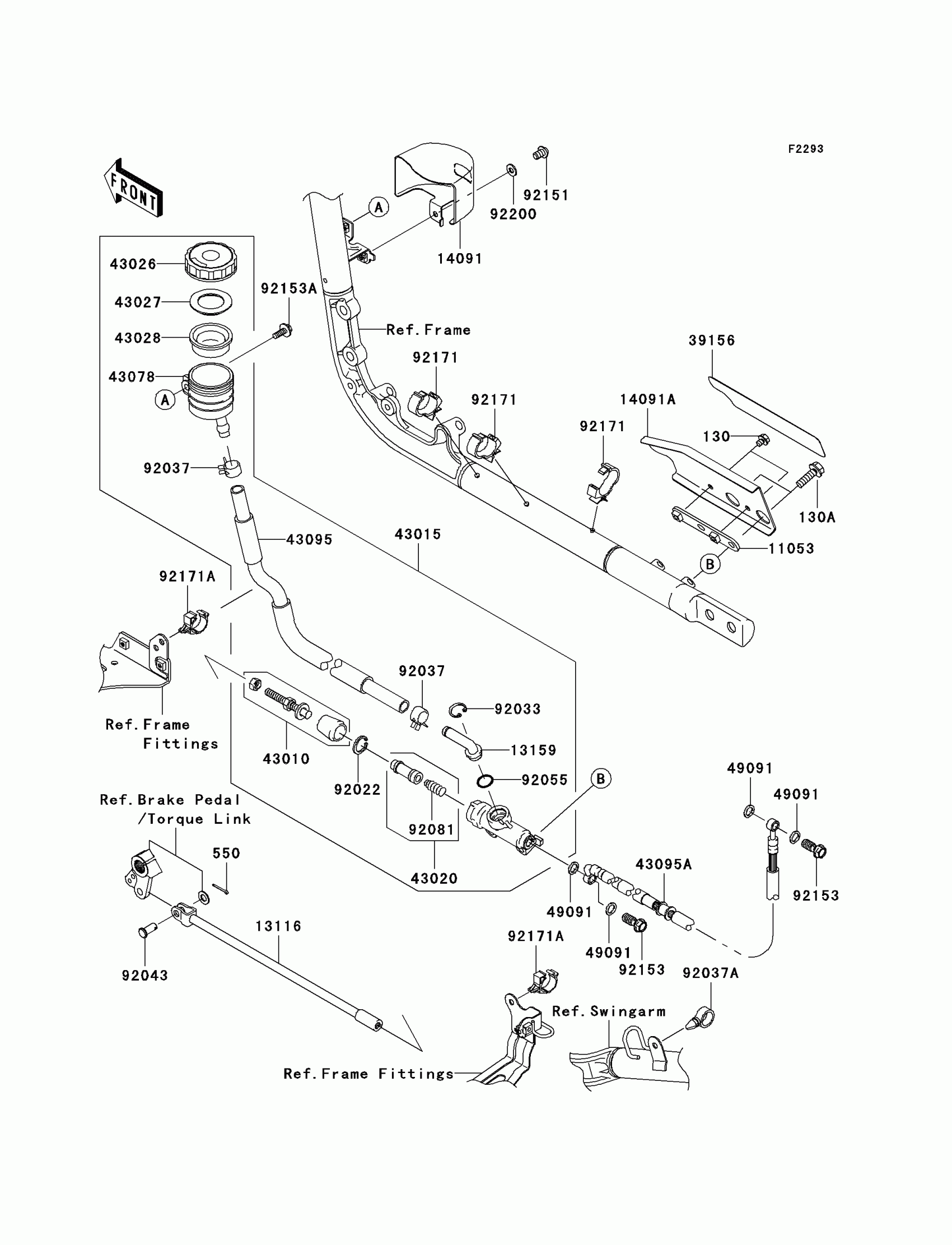

Kawasaki Vulcan 2000 Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130L0610

Unavailable

130A

BOLT-FLANGED,8X30

130L0830

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

11053

BRACKET,HEAT GUARD COVER

11053-0948

$9.19

13116

ROD-PUSH

13116-0011

$74.08

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

14091

COVER,REAR MASTER HEAT GUARD

14091-0273

$38.24

14091A

COVER,RESERVOIR TANK

14091-0352

$96.24

39156

PAD,RR MASTER CYLINDER

39156-0057

$8.59

43010

ROD-ASSY-BRAKE

43010-0004

$80.20

43015

CYLINDER-ASSY-MASTER,RR

43015-0042

$302.82

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$24.59

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0039

$67.45

43095A

HOSE-BRAKE,RR

43095-0169

$148.89

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1827

$5.69

92043

PIN,8X16

92043-1013

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92151

BOLT,SOCKET,6X12

92151-1940

$2.84

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,FLANGED,6X20

92153-0673

$2.63

92171

CLAMP,20MM DIA.

92171-0081

$3.75

92171A

CLAMP,BRAKE HOSE

92171-0316

$2.93

92200

WASHER,6.5X14.5X1.5

92200-3775

$1.30
