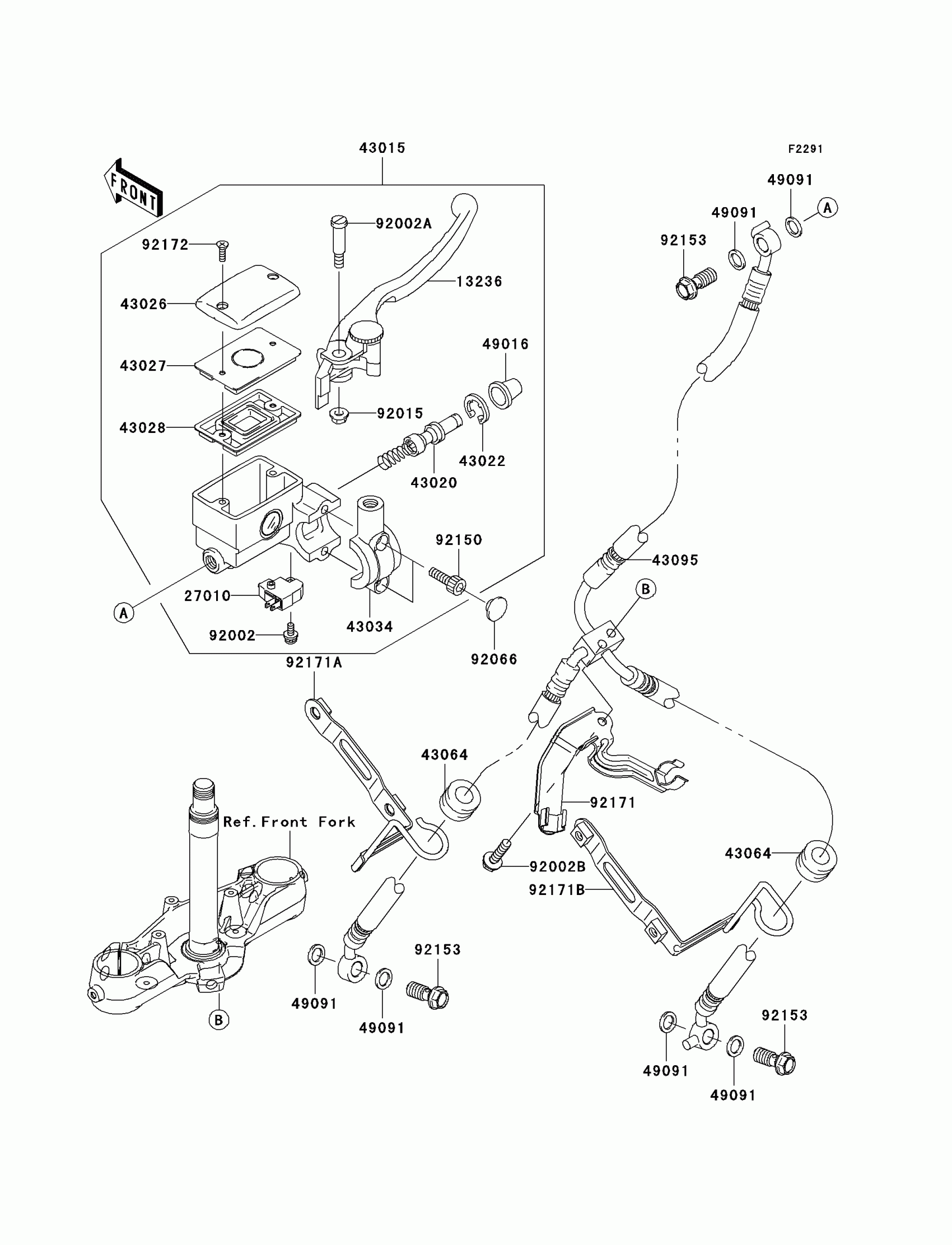

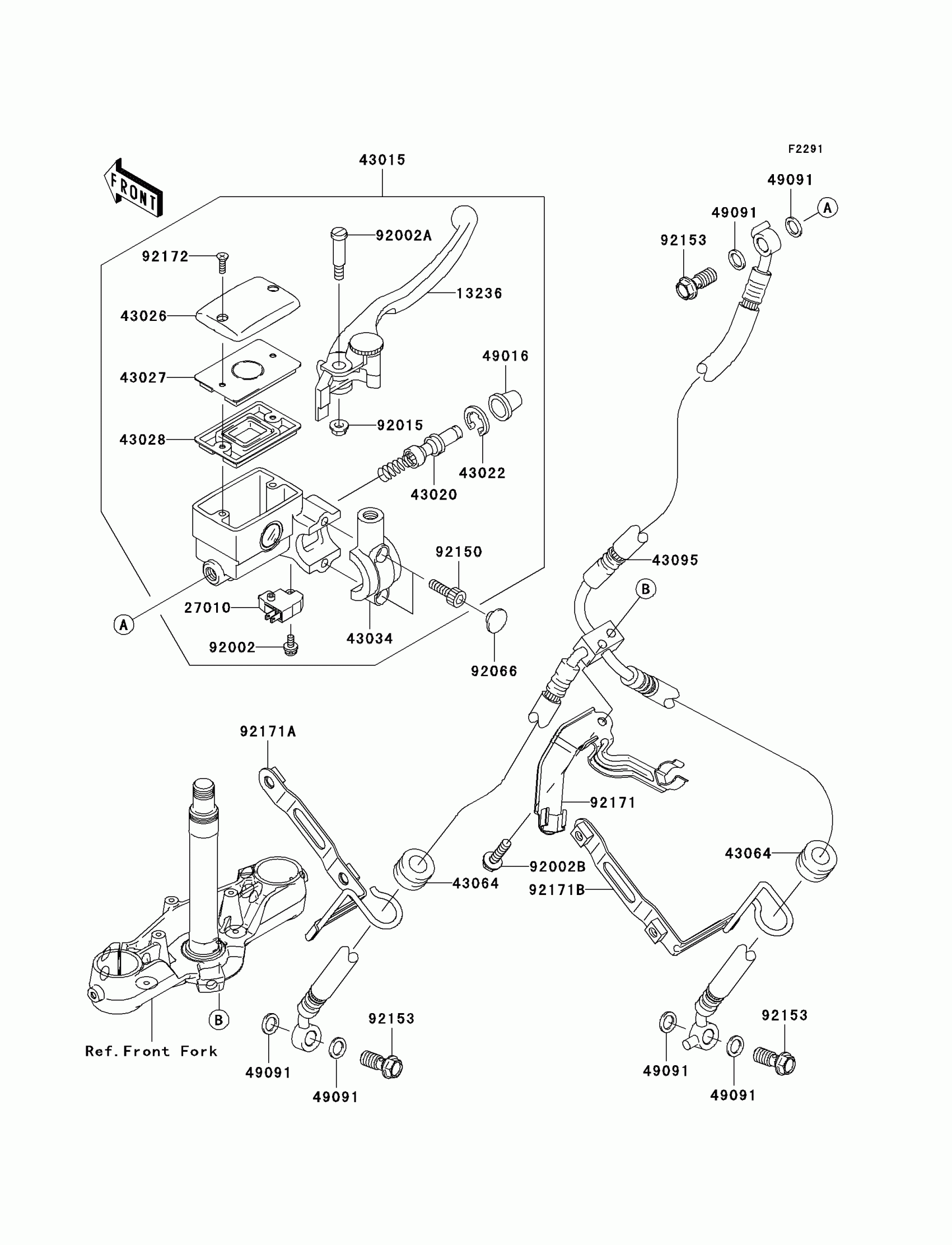

Kawasaki Vulcan 2000 Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1315

$44.27

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0025

$452.78

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-0003

Unavailable

43027

PLATE-DIAPHRAGM

43027-1059

$5.78

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE

43034-1172

$38.17

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43095

HOSE-BRAKE,FR

43095-0233

$174.41

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,SCREW,4X12

92002-1323

$2.99

92002A

BOLT,LEVER SET

92002-1561

$11.22

92002B

BOLT,6X26.6

92002-1912

$4.34

92015

NUT,FLANGED,6MM

92015-1528

$4.18

92066

PLUG

92066-1301

$4.59

92150

BOLT,SOCKET,6MM

92150-1025

$7.56

92153

BOLT,OIL,L=23

92153-0627

$4.15

92171

CLAMP,BRAKE HOSE

92171-0449

$25.58

92171A

CLAMP,BRAKE HOSE,LH

92171-0530

$23.68

92171B

CLAMP,BRAKE HOSE,RH

92171-0531

$23.68

92172

SCREW

92172-0083

$3.34
