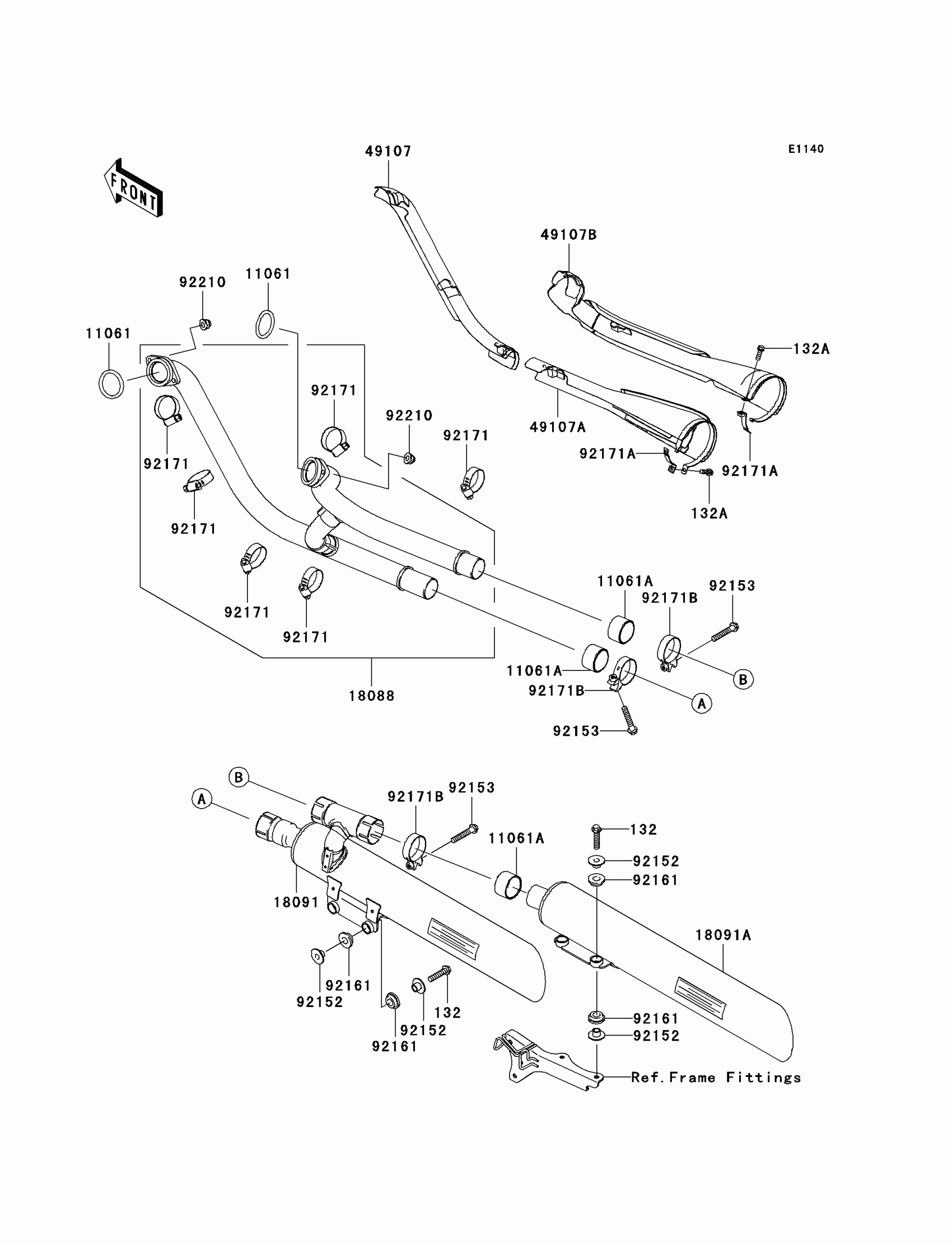

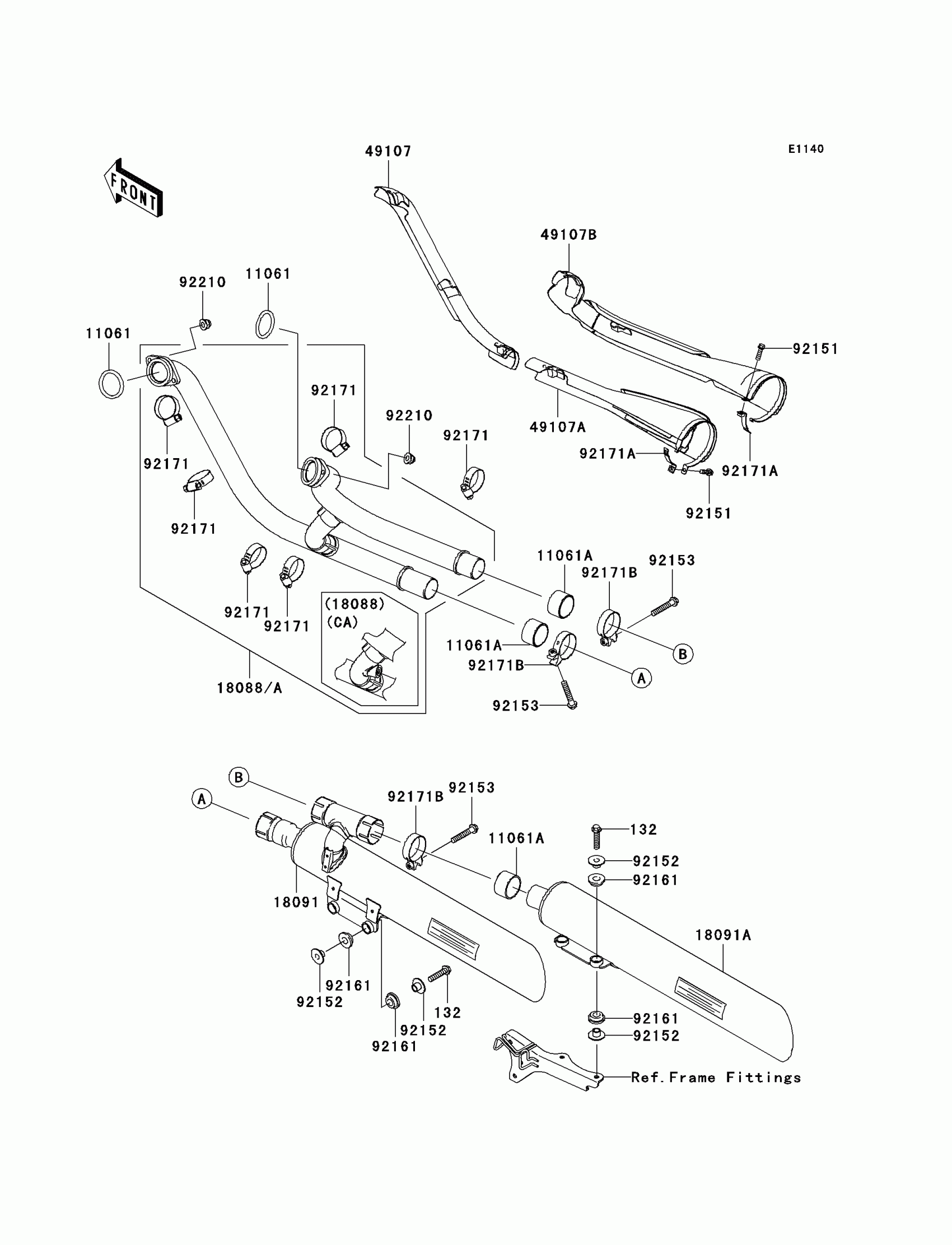

Kawasaki Vulcan® 2000 Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X35

132BB0835

$3.39

132A

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

11061

GASKET,EXHAUST PIPE

11061-0013

$15.45

11061A

GASKET,MUFFLER CONNECTING

11061-0240

$34.51

18088

PIPE-EXHAUST

18088-0452

$851.74

18091

BODY-COMP-MUFFLER,LWR

18091-0527

$932.32

18091A

BODY-COMP-MUFFLER,UPP

18091-0528

$927.01

49107

COVER-EXHAUST PIPE,FR,FR

49107-0005

$234.23

49107A

COVER-EXHAUST PIPE,FR,RR

49107-0033

$435.03

49107B

COVER-EXHAUST PIPE,RR

49107-0048

$417.01

92152

COLLAR,8.8X12X10.6

92152-0082

$11.59

92153

BOLT,8X45

92153-0702

$3.44

92161

DAMPER

92161-0135

$3.44

92171

CLAMP

92171-0072

$9.73

92171A

CLAMP

92171-0294

$15.60

92171B

CLAMP

92171-0358

$26.73

92210

NUT,CAP,8MM

92210-1132

$4.18
