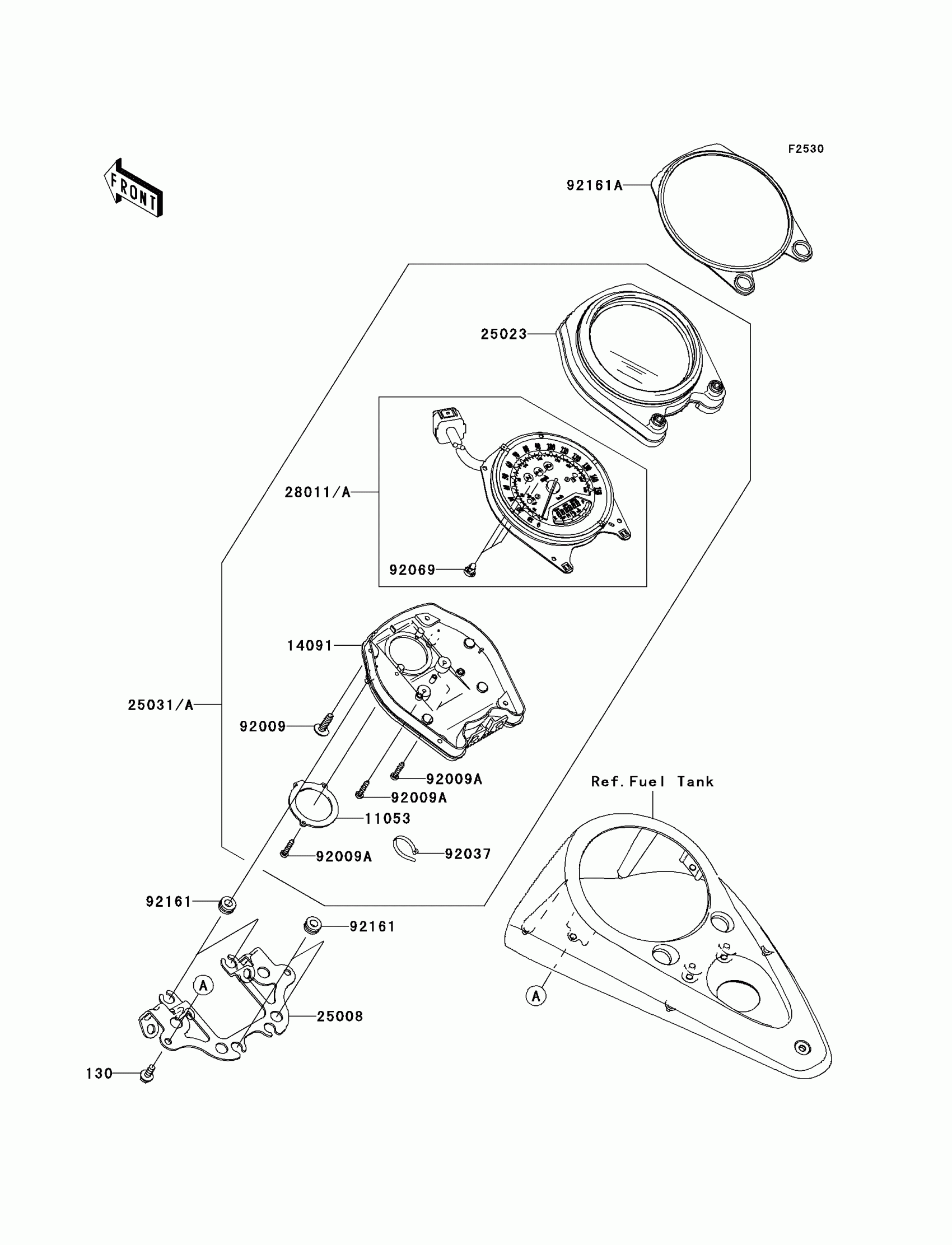

Kawasaki Vulcan 2000 Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130L0614

$2.33

11053

BRACKET,METER

11053-0022

$14.79

14091

COVER,METER,LWR

14091-0009

$95.78

25008

BRACKET-METER

25008-0011

$27.63

25023

COVER-METER CASE,UPP

25023-0002

$185.36

92009

SCREW,TAPPING,4X16

92009-1163

$4.10

92009A

SCREW,TAPPING,3X12

92009-1255

$3.65

92037

CLAMP

92037-1173

$3.49

92069

BULB,T3.4,12V1.1W

92069-1110

$7.73

92161

DAMPER

92161-0056

$3.44

92161A

DAMPER,METER

92161-0320

$27.25

25031

METER-ASSY,KPH

25031-0101

Unavailable

25031A

METER-ASSY,MPH

25031-0108

$884.39

28011

METER,SPEED,KPH

28011-0046

Unavailable

28011A

METER,SPEED,MPH

28011-0052

Unavailable
