2012 Kawasaki Vulcan® 1700 Voyager® Throttle Diagram

← All diagrams

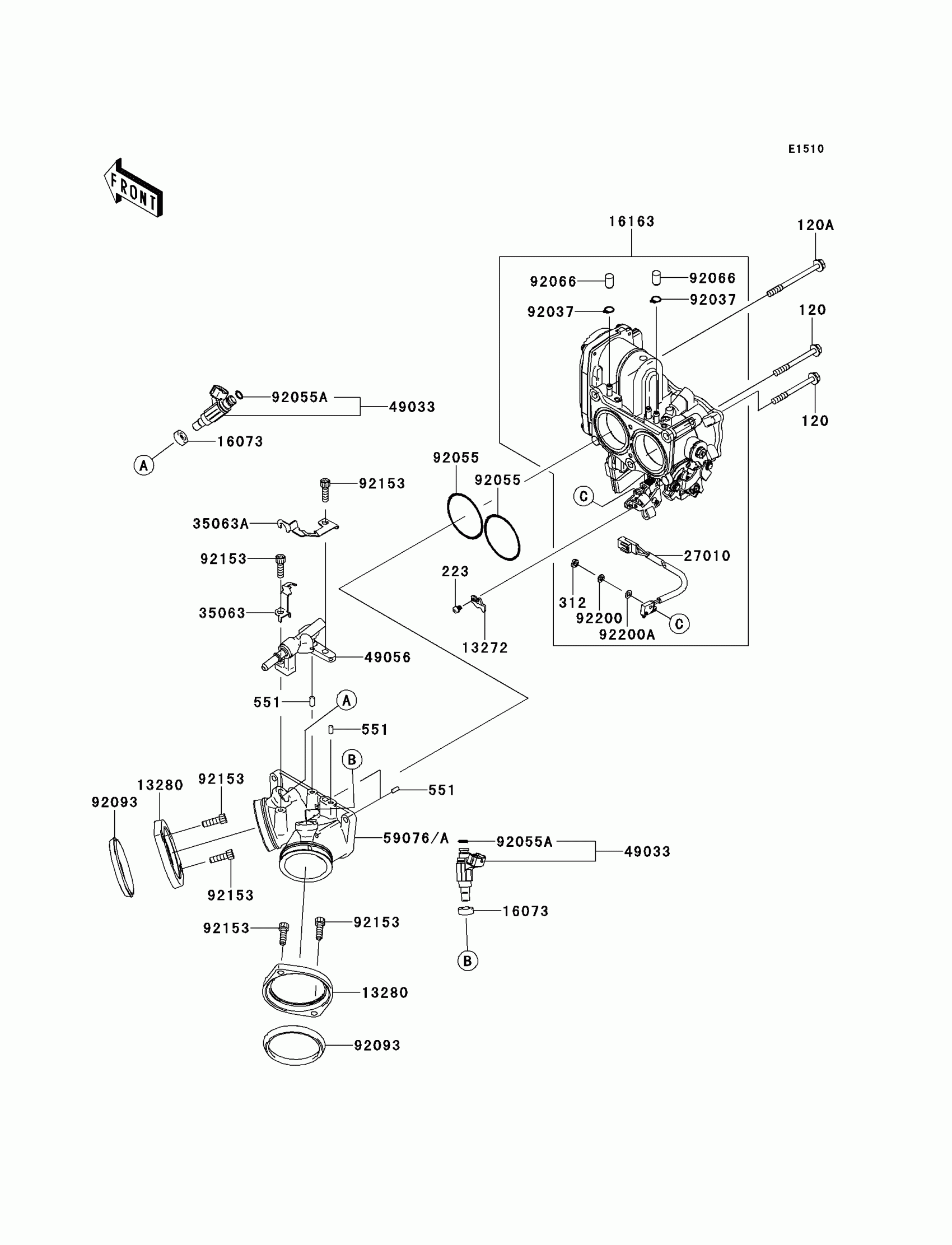

Find the part on the Throttle diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X60

120CA0660

1

$2.59

In stock

120A

BOLT-SOCKET,6X75

120CA0675

1

$2.64

In stock

223

1

$2.93

In stock

312

NUT-HEX

312BC0300

1

$1.71

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock

13272

PLATE,CABLE STOPPER

13272-0620

1

$4.20

In stock

13280

1

$32.93

In stock

16073

INSULATOR

16073-3707

1

$4.90

In stock

16163

1

$964.81

In stock

27010

1

$73.33

In stock

35063

STAY

35063-0075

1

$7.61

In stock

35063A

STAY

35063-0076

1

$7.61

In stock

49033

NOZZLE-INJECTION

49033-0003

1

$132.04

In stock

49056

PIPE-INJECTION

49056-0020

1

$180.74

In stock

59076A

MANIFOLD-INTAKE

59076-0005

1

$231.19

In stock

92037

1

$1.64

In stock

92055

RING-O,49.7X2.4

92055-0183

1

$2.00

In stock

92055A

1

$1.64

In stock

92066

PLUG,FITTING

92066-1549

1

$6.23

In stock

92093

SEAL

92093-0006

1

$20.93

In stock

92153

BOLT,SOCKET,6X20

92153-1031

1
Out of stock

92200

WASHER,SPRING

92200-0539

1
Out of stock

92200A

WASHER

92200-0540

1
Out of stock
