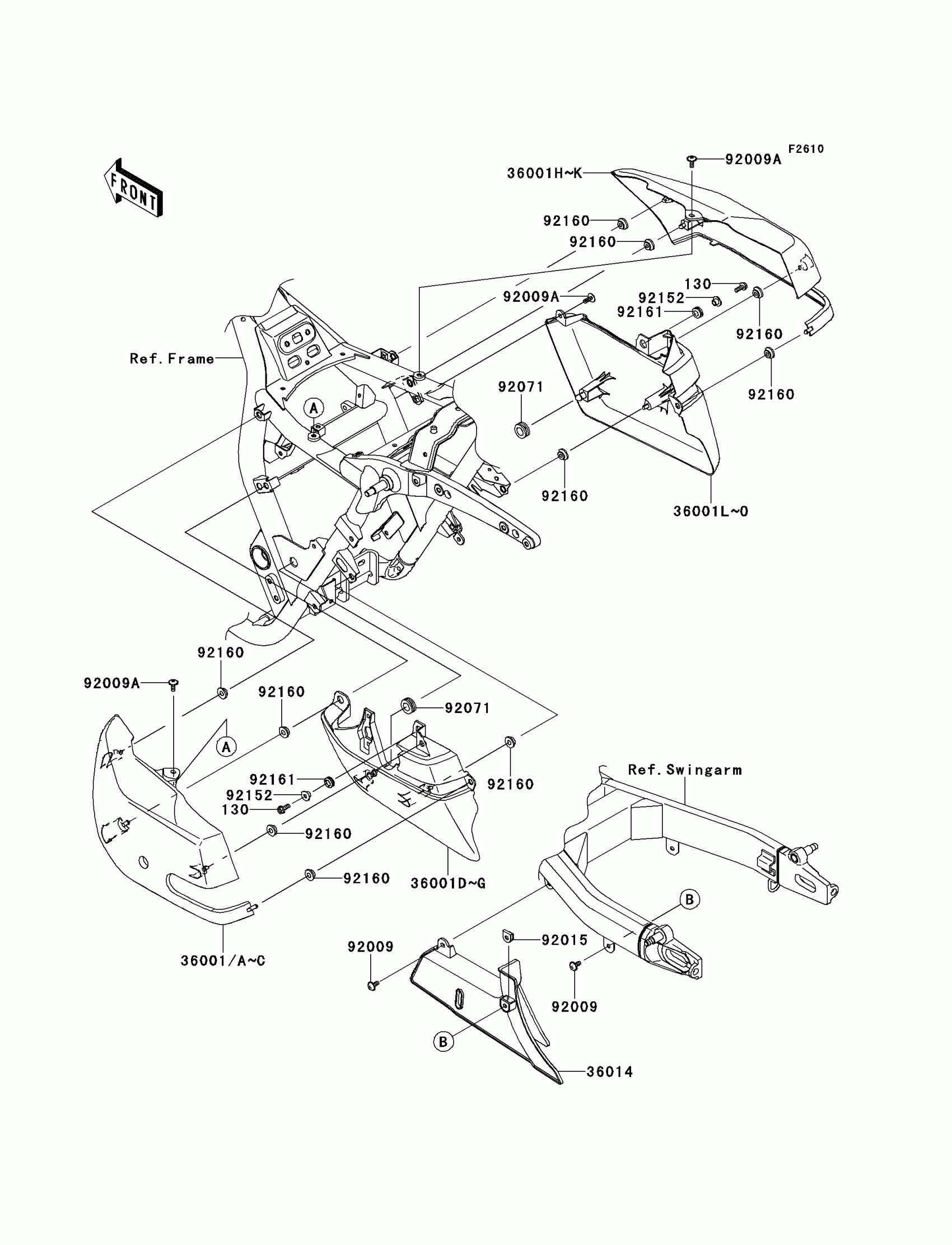

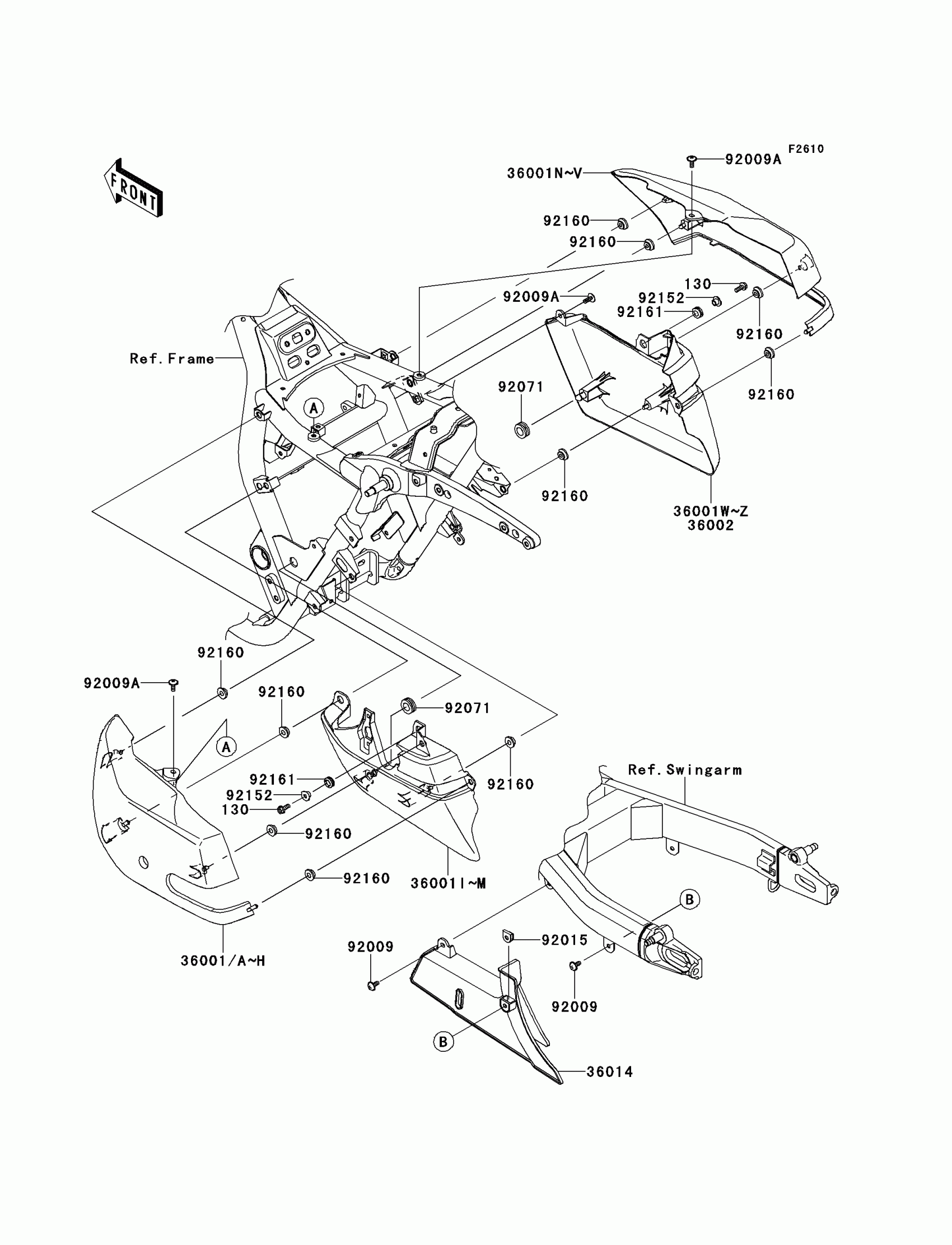

Kawasaki VULCAN® 1700 VOYAGER® Side Covers/Chain Cover Diagram

Description

Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

36001

COVER-SIDE,LH,UPP,BLACK

36001-0139-B5

$238.69

36001C

COVER-SIDE,LH,UPP,P.C.WHITE

36001-0139-667

$238.69

36001D

COVER-SIDE,LH,LWR,M.N.BLUE

36001-0140-C6

$227.63

36001E

COVER-SIDE,LH,LWR,M.P.SILVER

36001-0140-GU

$229.83

36001H

COVER-SIDE,RH,UPP,BLACK

36001-0141-B5

$238.69

36001K

COVER-SIDE,RH,UPP,P.C.WHITE

36001-0141-667

$238.69

36001L

COVER-SIDE,RH,LWR,M.N.BLUE

36001-0142-C6

$227.63

36001M

COVER-SIDE,RH,LWR,M.P.SILVER

36001-0142-GU

$229.83

36014

CASE-CHAIN

36014-0042

$45.06

92009

SCREW,6X14

92009-1555

$3.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLIP,6MM

92015-1904

$6.57

92071

GROMMET

92071-1131

$7.77

92152

COLLAR

92152-0295

$5.65

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0266

$1.78
