2012 Kawasaki Vulcan® 1700 Voyager® Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

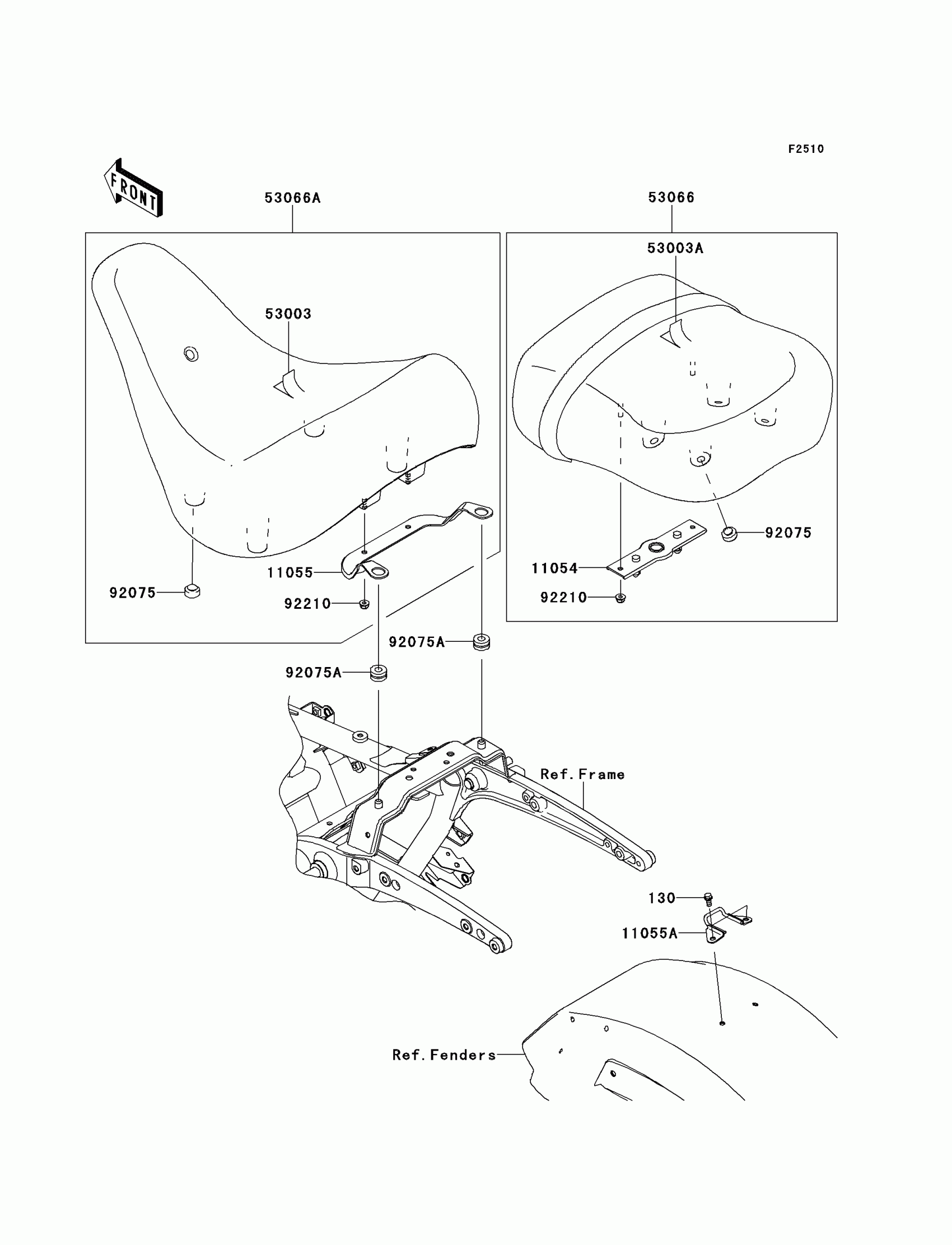

2012 Kawasaki Vulcan® 1700 Voyager® Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

11054

BRACKET,SEAT

11054-0417

1
Out of stock

11055

BRACKET

11055-0612

1
Out of stock

11055A

BRACKET,REAR SEAT

11055-1211

1
Out of stock

53003

LEATHER,REAR SEAT,BLACK

53003-0155-MA

1
Out of stock

53003A

LEATHER,FRONT SEAT,BLACK

53003-0156-MA

1
Out of stock

53066

SEAT-ASSY,FR,BLACK

53066-0232-MA

1
Out of stock

53066B

SEAT,RR,LEATHER BLK+BAND BLK

53066-0233-12Y

1
Out of stock

92075

DAMPER,10X20X8

92075-1927

1
Out of stock

92075A

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92210

NUT

92210-0401

1
Out of stock
