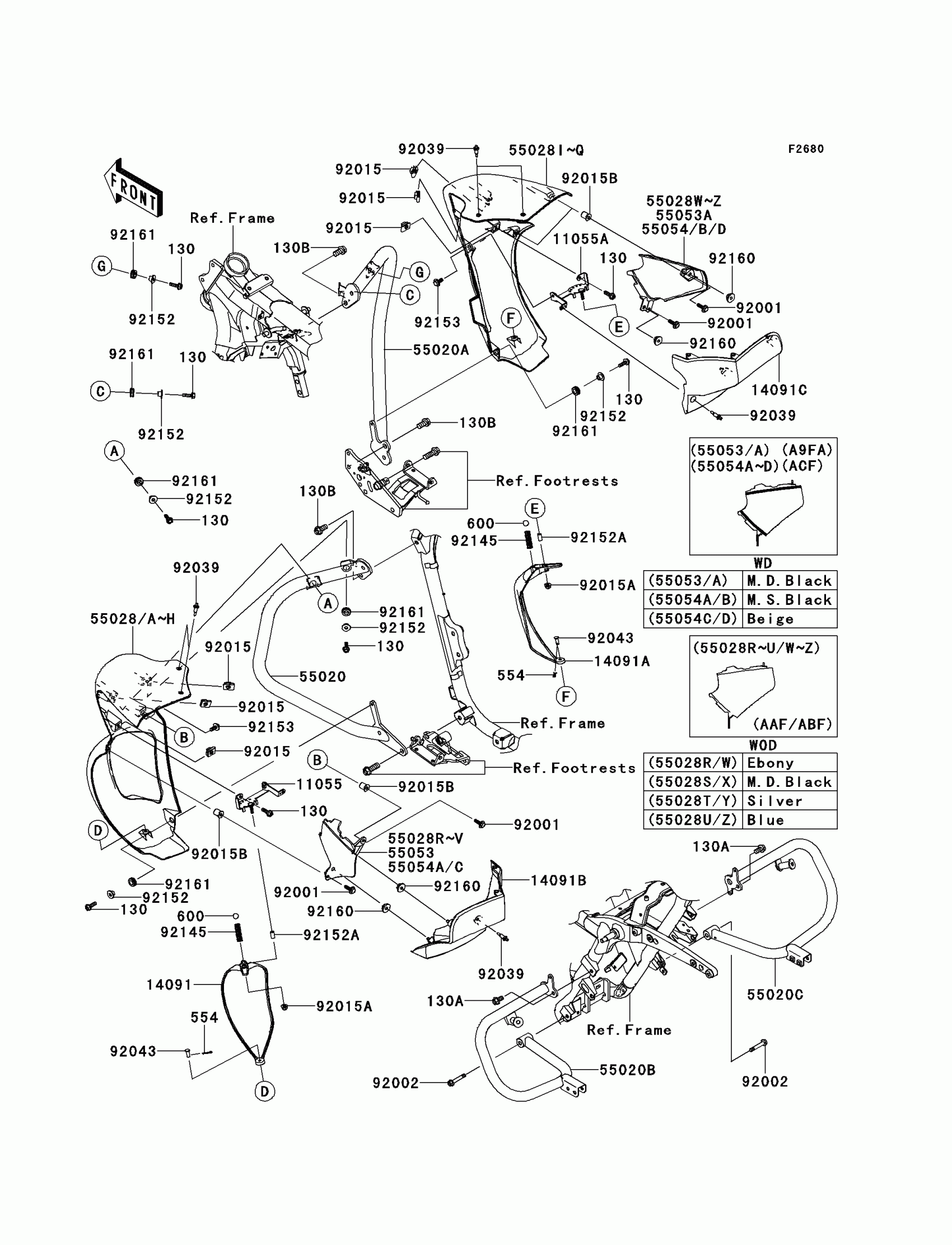

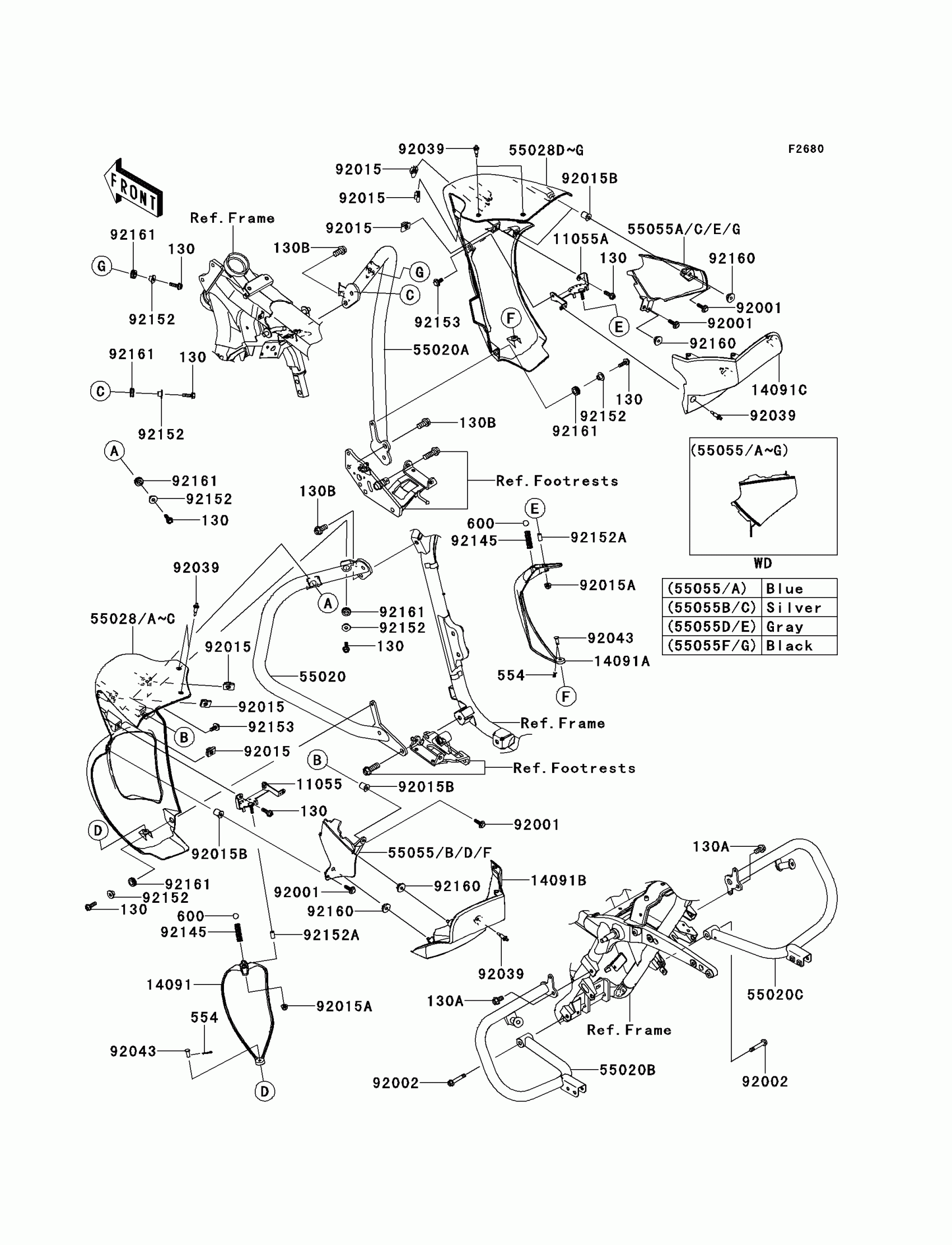

Find the part on the Guard diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

1

$20.56

In stock

11055A

1

$20.56

In stock

14091

1

$26.49

In stock

14091A

1

$29.08

In stock

14091B

COVER,LH

14091-1787

1

$37.15

In stock

14091C

COVER,RH

14091-1788

1

$37.15

In stock

55020

GUARD,FR,LH

55020-0512

1
Out of stock

55020A

GUARD,FR,RH

55020-0513

1

$187.02

In stock

55020B

GUARD,RR,LH

55020-0535

1

$179.78

In stock

55020C

GUARD,RR,RH

55020-0536

1

$179.78

In stock

55028

1

$406.53

In stock

55028I

1

$406.53

In stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

130A

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130B

BOLT-FLANGED,10X20

130BC1020

1

$3.27

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1

$0.92

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

55054A

1

$134.73

In stock

55054B

1

$136.16

In stock

92001

BOLT,6X20

92001-1460

1

$3.12

In stock

92002

BOLT,FLANGED,8X47

92002-1850

1
Out of stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92015A

1

$3.43

In stock

92015B

NUT

92015-1700

1

$6.82

In stock

92039

RIVET

92039-1283

1

$2.29

In stock

92043

PIN,6X11

92043-092

1

$4.17

In stock

92145

SPRING

92145-1319

1

$1.54

In stock

92152

COLLAR

92152-0295

1

$4.47

In stock

92152A

COLLAR,6.2X7.8X14

92152-0771

1

$1.78

In stock

92153

BOLT,6X16

92153-1215

1
Out of stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER

92161-0266

1

$1.53

In stock

55028A

1

$406.53

In stock

55028J

1

$406.53

In stock

55054C

1

$134.73

In stock

55054D

1

$136.16

In stock
