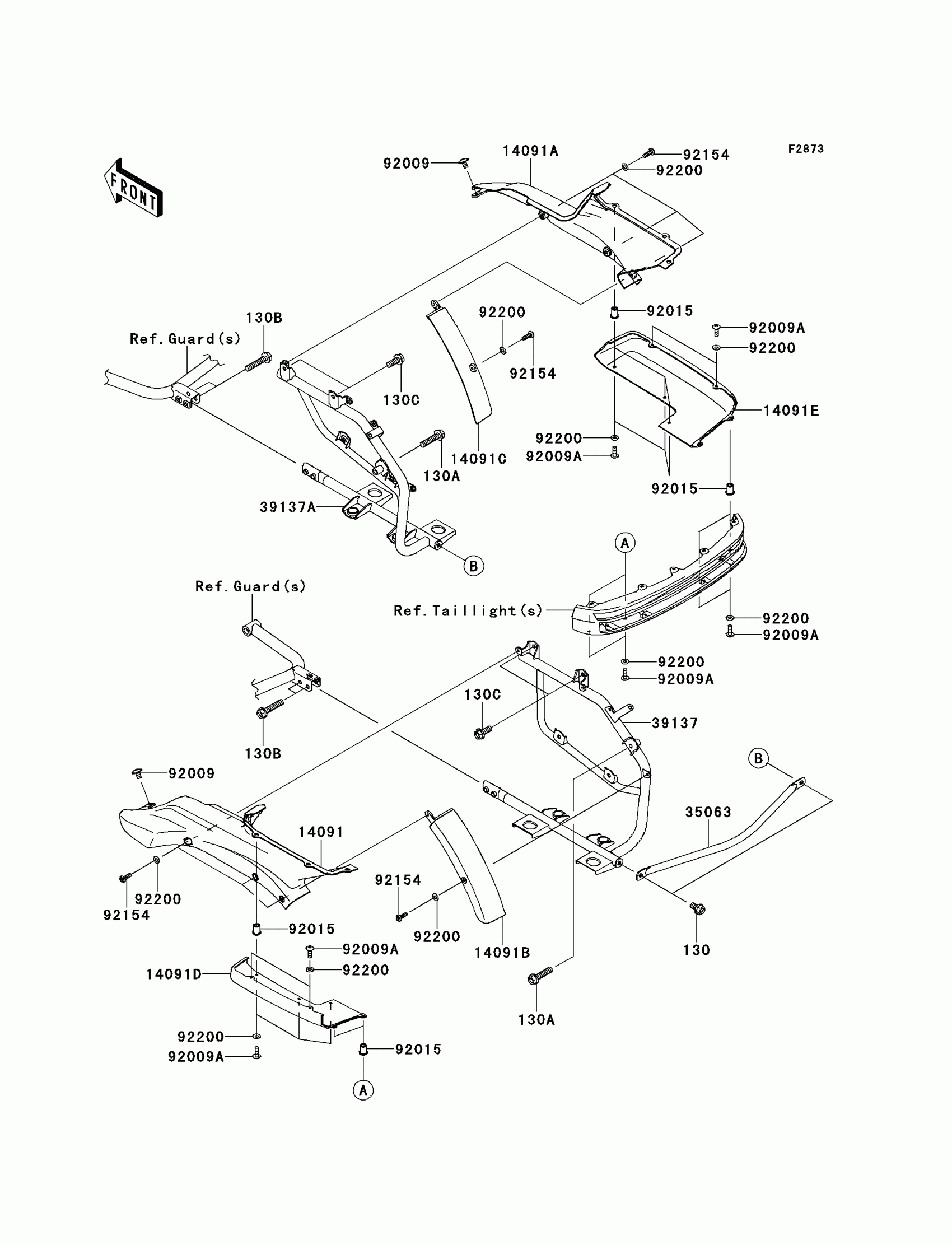

Kawasaki VULCAN® 1700 VOYAGER® Saddlebags(Side Bag Bracket) Diagram

Description

Price

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,8X35

130BA0835

$1.46

130B

BOLT-FLANGED,8X40

130BA0840

$1.98

130C

BOLT-FLANGED,8X20

130CA0820

$1.71

14091

COVER,STAY,LWR,LH

14091-0950

$387.07

14091A

COVER,STAY,LWR,RH

14091-0951

$387.07

14091B

COVER,STRUT,LH

14091-0957

$64.16

14091C

COVER,STRUT,RH

14091-0958

$64.16

14091D

COVER,STAY,UPP,LH

14091-1661

$218.11

14091E

COVER,STAY,UPP,RH

14091-1662

$218.11

35063

STAY,PANNIER

35063-0537

$58.29

39137

STAY-COMP,PANNIER,LH

39137-0048

$304.83

39137A

STAY-COMP,PANNIER,RH

39137-0049

$304.83

92009

SCREW,6X10,WHITE

92009-1286

$4.31

92009A

SCREW,5X16,WHITE

92009-1464

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92154

BOLT,SOCKET,5X16

92154-0287

$2.41

92200

WASHER,NATURAL,5.3X11.5X1.0

92200-0538

$0.88
