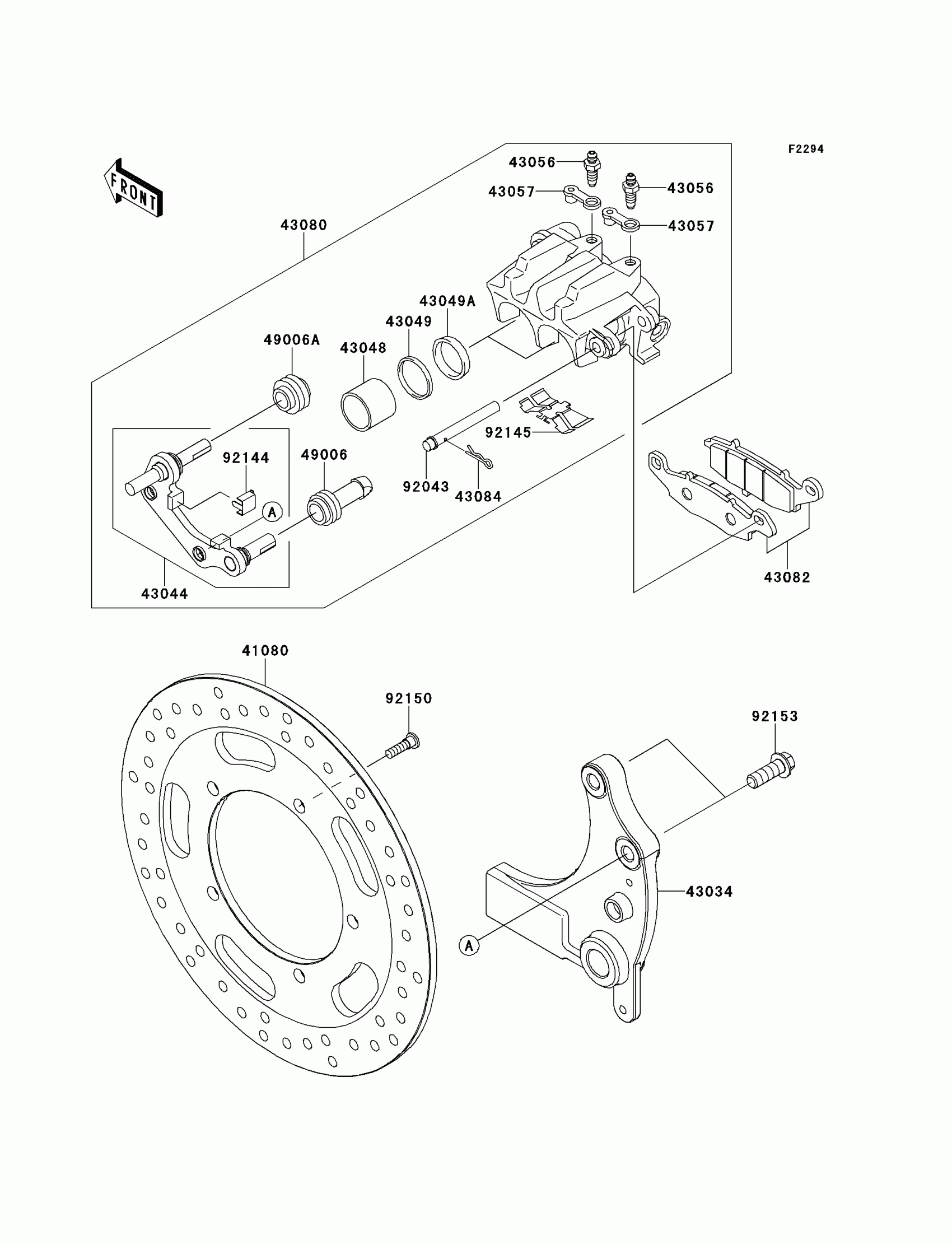

Kawasaki VULCAN® 1700 VOYAGER® Rear Brake Diagram

Description

Price

41080A

DISC,RR,BLACK

41080-0157-11H

$371.43

43034

HOLDER-BRAKE,REAR CALIPER,SIL

43034-0031-28Z

$185.96

43044

HOLDER-COMP-CALIPER,RR

43044-1134

$175.85

43048

PISTON-CALIPER

43048-1094

$59.39

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-0007

$23.79

43057

CAP-BREATHER

43057-003

$2.45

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5098-DJ

$371.03

43082

PAD-ASSY-BRAKE

43082-0105

Unavailable

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1640

$6.36

92144

SPRING,STOPPER

92144-1831

$5.46

92145

SPRING,PAD

92145-1382

$16.24

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED,10X28

92153-1987

$3.29
