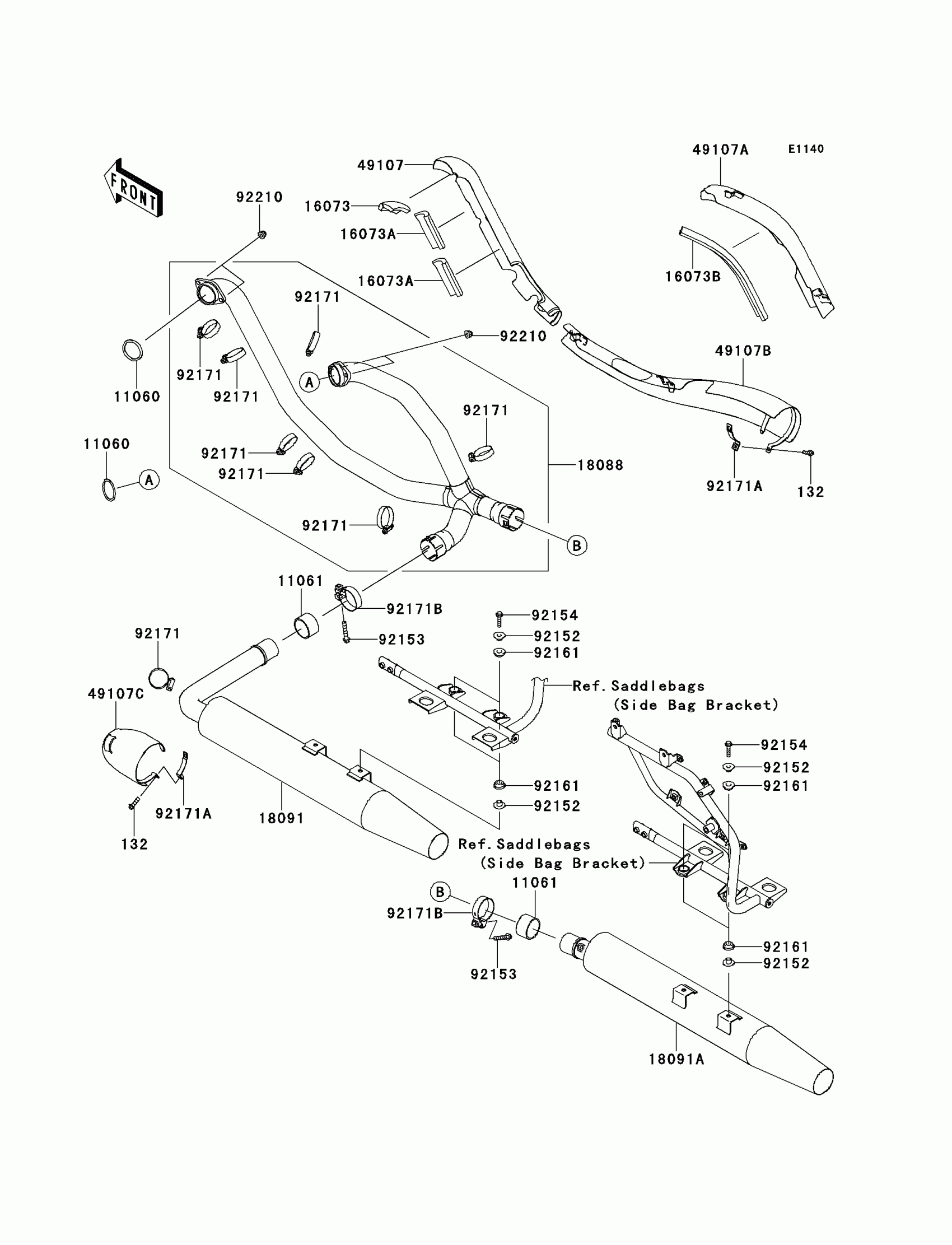

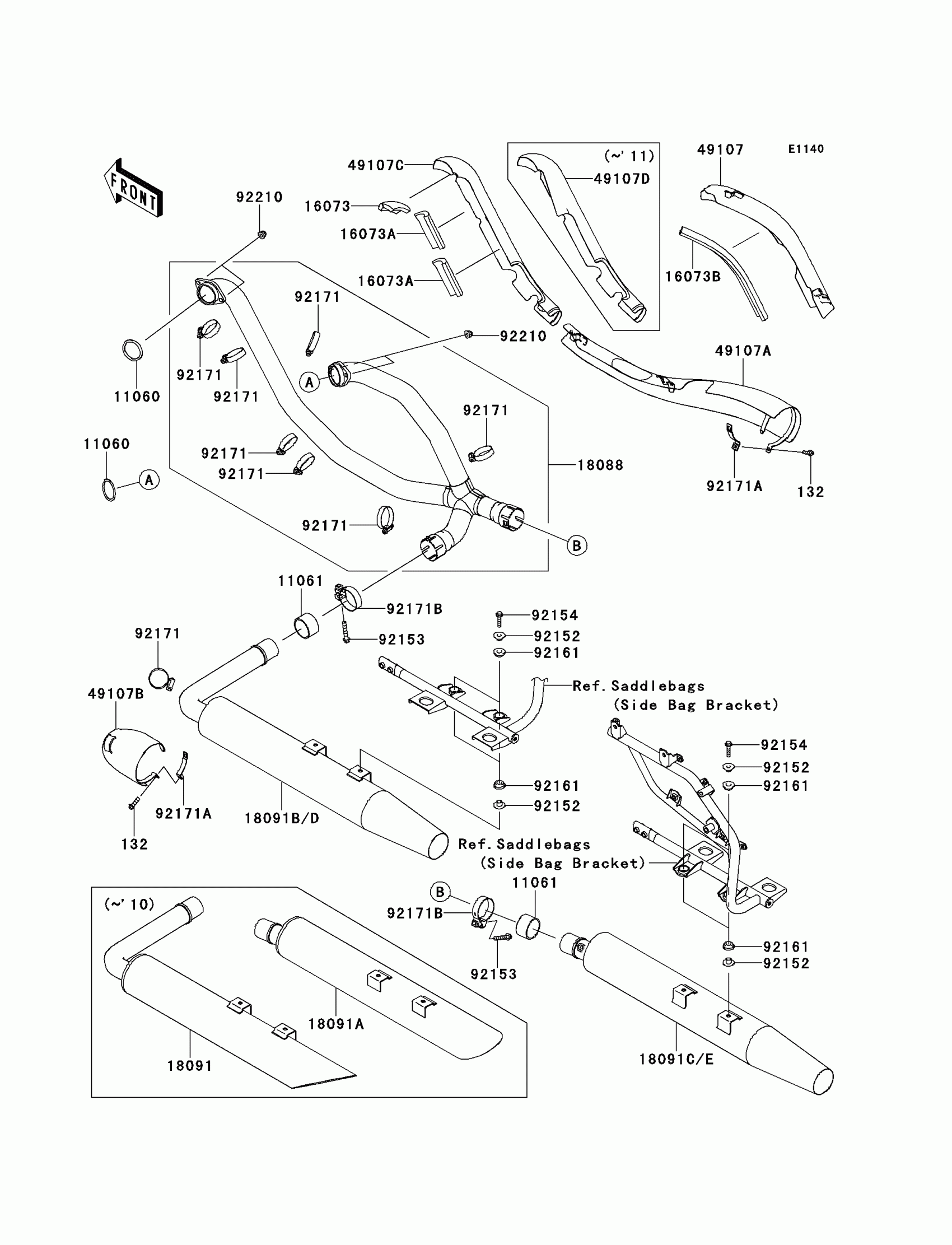

Kawasaki VULCAN® 1700 VOYAGER® Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

11061

GASKET,MUFFLER CONNECTING

11061-0240

$34.51

16073

INSULATOR

16073-0125

$11.82

16073A

INSULATOR

16073-0126

$14.87

16073B

INSULATOR

16073-0128

$54.18

18088

PIPE-EXHAUST

18088-0414

$672.44

18091D

BODY-COMP-MUFFLER,LH

18091-0833

$1,029.60

18091E

BODY-COMP-MUFFLER,RH

18091-0834

$1,029.60

49107

COVER-EXHAUST PIPE,RR

49107-0122

Unavailable

49107A

COVER-EXHAUST PIPE,FR-R

49107-0153

Unavailable

49107B

COVER-EXHAUST PIPE,LH

49107-0154

Unavailable

49107C

COVER-EXHAUST PIPE,FR-F

49107-0166

Unavailable

92152

COLLAR,8.8X12X10.6

92152-0082

$11.59

92153

BOLT,8X45

92153-0702

$3.44

92154

BOLT,FLANGED,8X32

92154-0136

$2.55

92161

DAMPER

92161-0135

$3.44

92171

CLAMP

92171-0072

$9.73

92171A

CLAMP

92171-0294

$15.60

92171B

CLAMP

92171-0358

$26.73

92210

NUT,CAP,8MM

92210-1132

$4.18
