2012 Kawasaki Vulcan® 1700 Voyager® Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

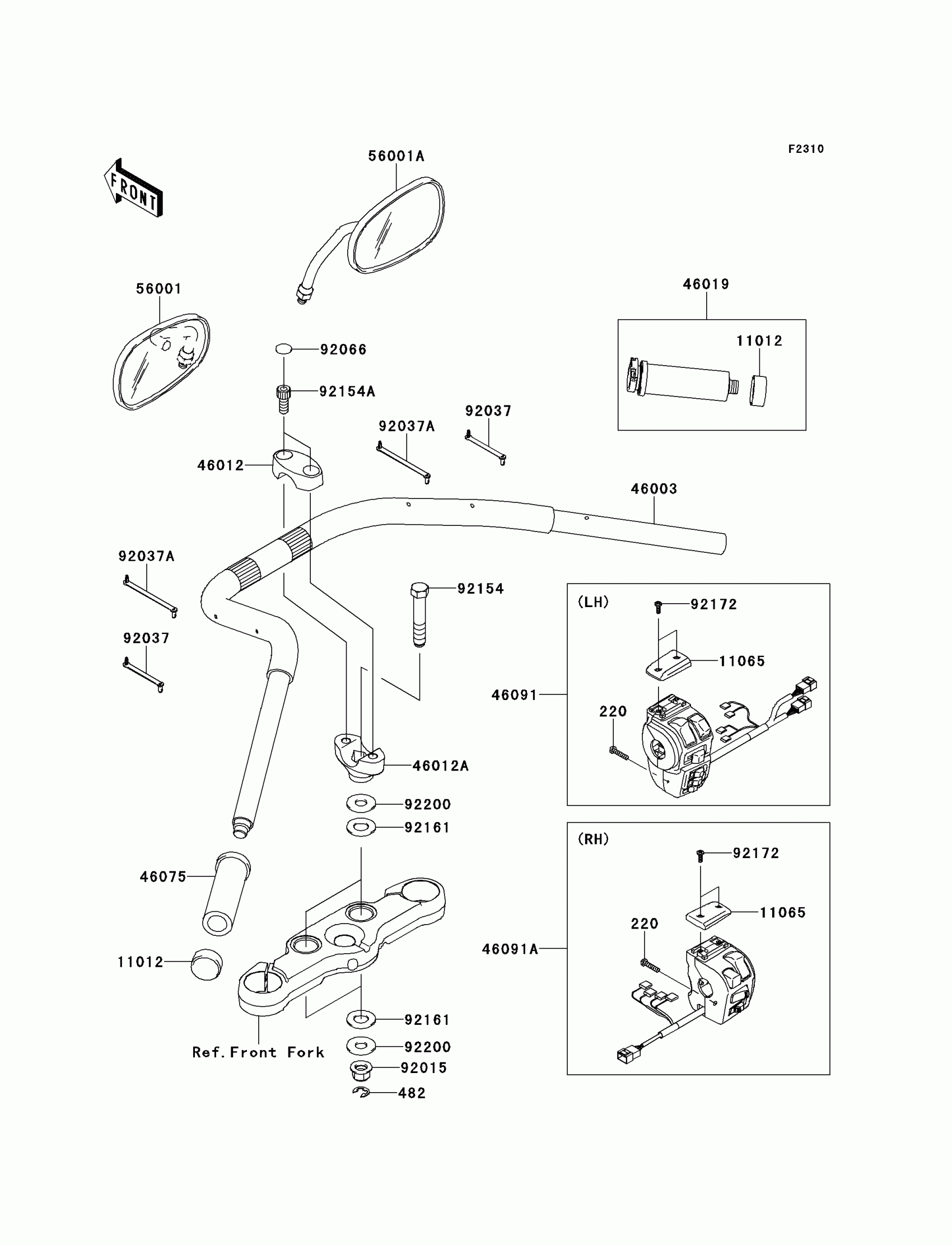

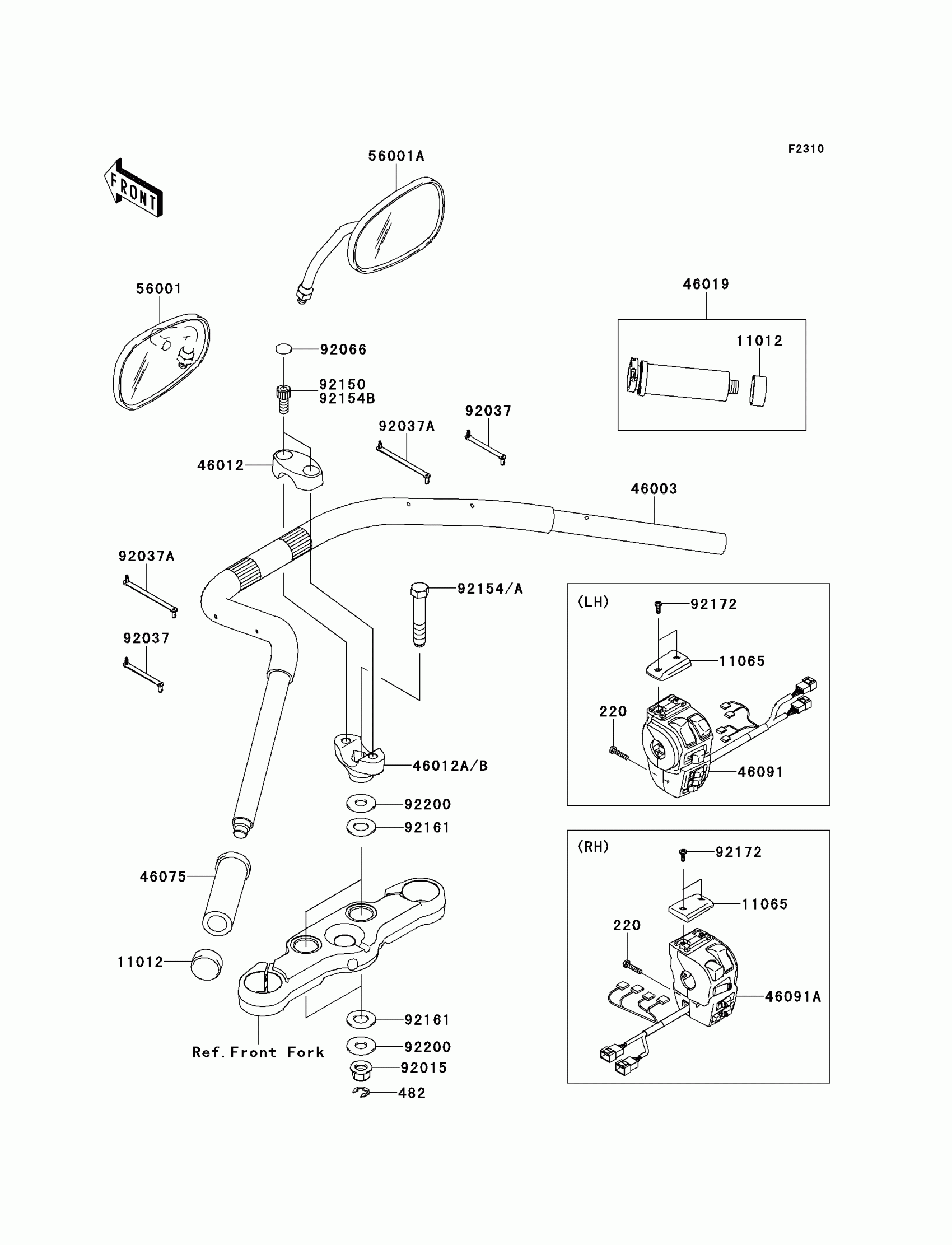

2012 Kawasaki Vulcan® 1700 Voyager® Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,5X25

220AB0525

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

11012

CAP,GRIP END

11012-1975

1
Out of stock

11065

CAP,HOUSING SWITCH

11065-0270

1
Out of stock

46003

HANDLE

46003-0174

1
Out of stock

46012

HOLDER-HANDLE,UPP

46012-0072

1
Out of stock

46012B

HOLDER-HANDLE,LWR

46012-0083

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-1109

1
Out of stock

46075

GRIP,LH

46075-1074

1
Out of stock

46091

HOUSING-ASSY-CONTROL,LH

46091-0141

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,RH

46091-0142

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0032

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0033

1
Out of stock

92015

NUT,FLANGED,14MM

92015-1401

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP,SPEED,L=80.5

92037-1903

1
Out of stock

92066

PLUG

92066-1285

1
Out of stock

92154A

BOLT,UPSET,14X77

92154-0318

1
Out of stock

92154B

BOLT,SOCKET,10X25

92154-0350

1
Out of stock

92161

DAMPER,18X35X2.2

92161-0836

1
Out of stock

92172

SCREW,4X12

92172-0420

1
Out of stock

92200

WASHER,14.2X35X2.3

92200-0534

1
Out of stock
