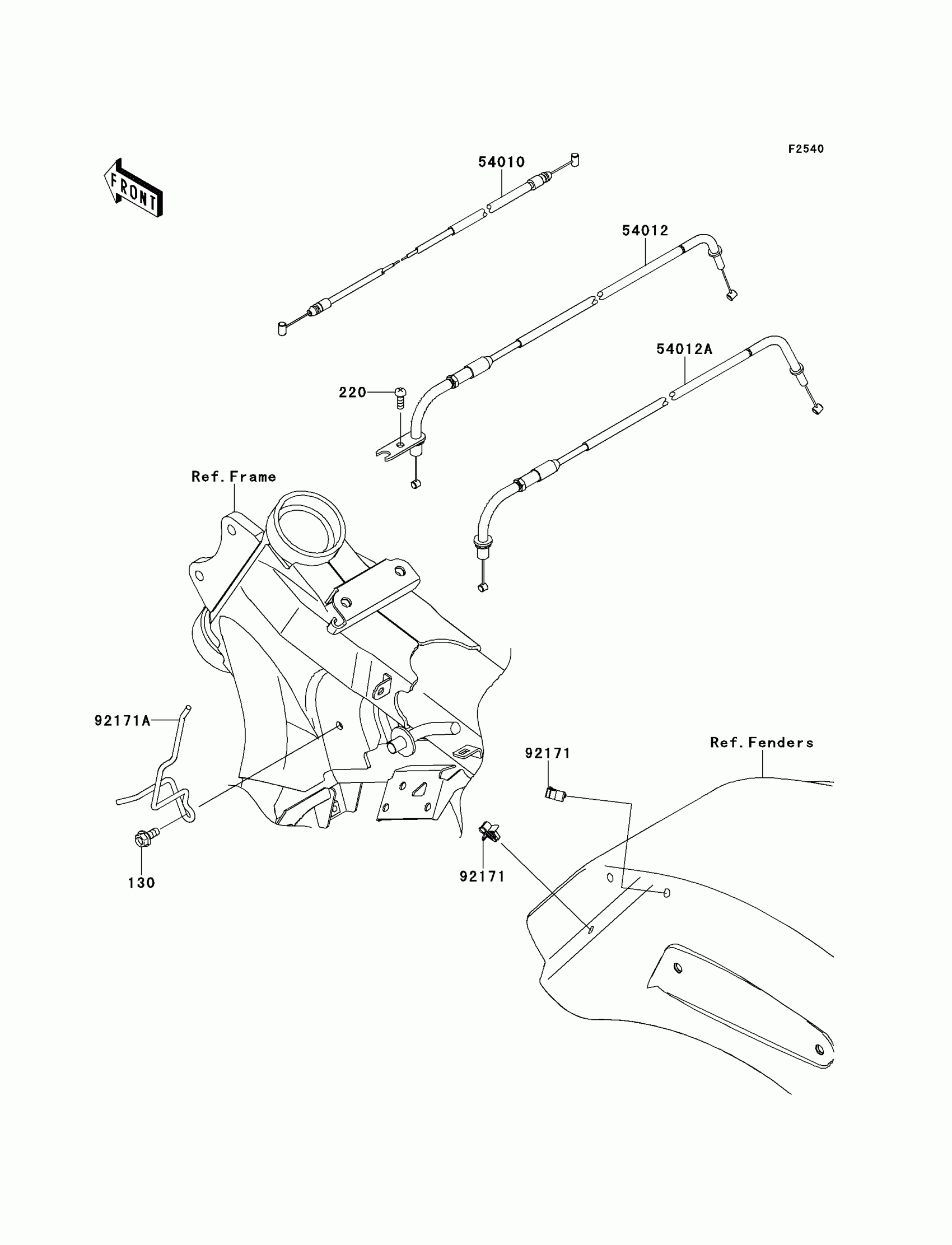

2012 Kawasaki Vulcan® 1700 Voyager® Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BB0614

1
Out of stock

220

SCREW-PAN-CROS,5X14

220AB0514

1
Out of stock

54010

CABLE,SEAT LOCK

54010-0092

1
Out of stock

54012

CABLE-THROTTLE,OPENING

54012-0282

1
Out of stock

54012A

CABLE-THROTTLE,CLOSING

54012-0283

1
Out of stock

92171

CLAMP,SEAT LOCK CABLE

92171-0328

1
Out of stock

92171A

CLAMP,CABLE

92171-1838

1
Out of stock
← Rear Master Cylinder Front Fork →
