Description

Price

120

BOLT-SOCKET,6X16

120CB0616

$1.27

130

BOLT-FLANGED,8X25

130BB0825

$4.45

482

CIRCLIP-TYPE-E

482EA7000

$3.92

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

600

BALL-STEEL,1/4

600A0800

$0.62

14091

COVER,REAR STEP

14091-1808

$33.22

21176

SENSOR,BANK

21176-0123

$22.09

32085

STOPPER,REAR STEP

32085-0045

$3.29

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0102-18R

$119.72

34003A

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0103-18R

$124.87

34028

STEP,FR,LH

34028-0124

$110.41

34028A

STEP,FR,RH

34028-0125

Unavailable

34028B

STEP,RR

34028-0131

$66.59

35063

STAY,RR,RH,F.S.BLACK

35063-0649-18R

$80.77

35063A

STAY,RR,LH,F.S.BLACK

35063-0669-18R

$80.77

92043

PIN,8X76.5

92043-0054

$2.90

92043A

PIN,10X98.5

92043-1707

$10.49

92144

SPRING

92144-1266

$8.79

92145

SPRING

92145-1319

$1.81

92153

BOLT,SOCKET,6X10

92153-1096

$2.80

92154

BOLT,FLANGED,10X30

92154-0284

$3.52

92161

DAMPER,STEP HOLDER

92161-0746

$7.60

92161A

DAMPER,STEP

92161-0766

$5.29

92161B

DAMPER,FOOT BOARD

92161-0770

$68.83

92161C

DAMPER,REAR STEP

92161-0771

$54.46

92161D

DAMPER,REAR STEP

92161-0772

$7.24

92161E

DAMPER,10X35X3

92161-0840

$2.03

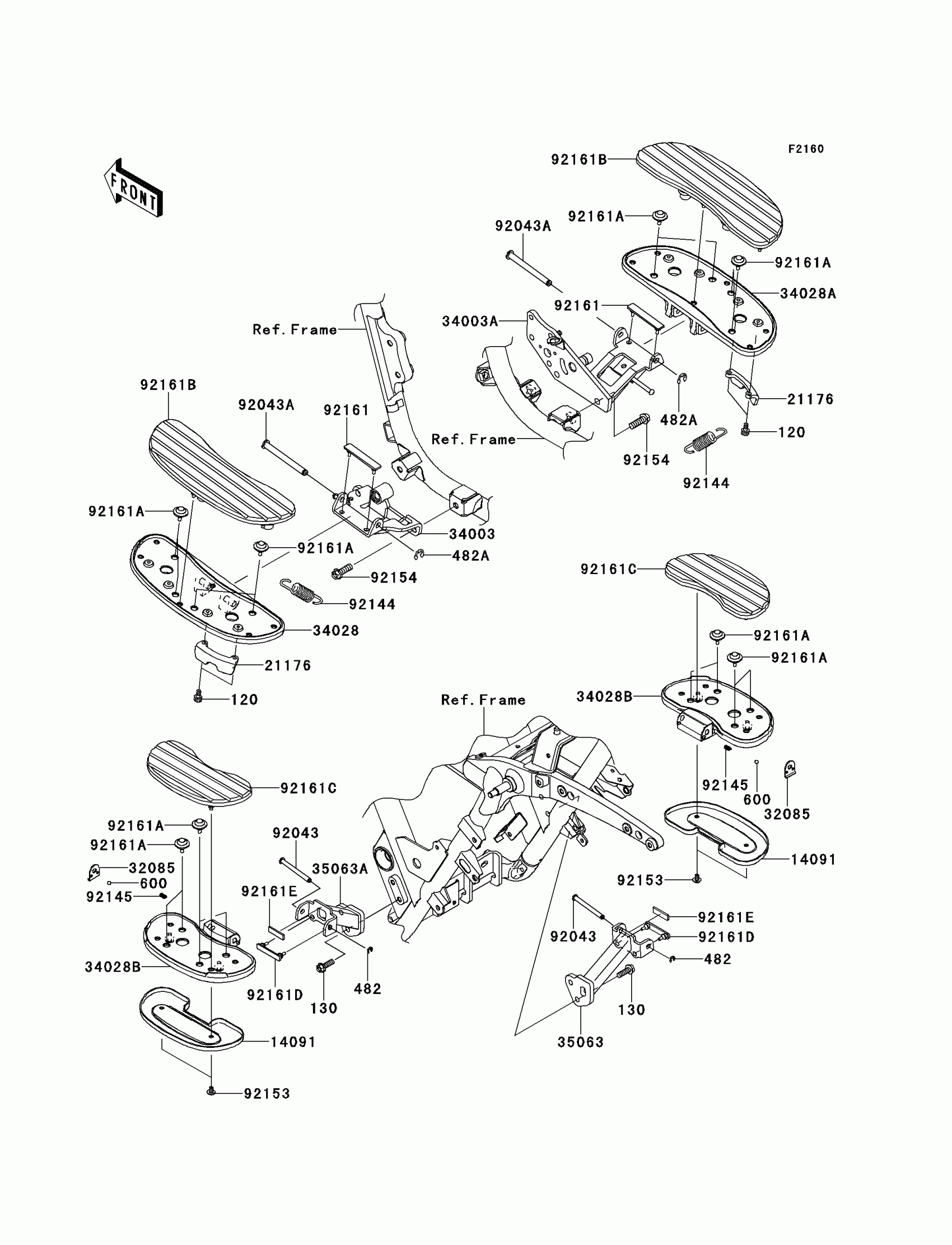

Kawasaki VULCAN® 1700 VOYAGER® Footrests Diagram

BOLT-SOCKET,6X16

BOLT-FLANGED,8X25

CIRCLIP-TYPE-E

CIRCLIP-TYPE-E,8MM

BALL-STEEL,1/4

COVER,REAR STEP

SENSOR,BANK

STOPPER,REAR STEP

HOLDER-STEP,FR,LH,F.S.BLACK

HOLDER-STEP,FR,RH,F.S.BLACK

STEP,FR,LH

STEP,FR,RH

STEP,RR

STAY,RR,RH,F.S.BLACK

STAY,RR,LH,F.S.BLACK

PIN,8X76.5

PIN,10X98.5

SPRING

SPRING

BOLT,SOCKET,6X10

BOLT,FLANGED,10X30

DAMPER,STEP HOLDER

DAMPER,STEP

DAMPER,FOOT BOARD

DAMPER,REAR STEP

DAMPER,REAR STEP

DAMPER,10X35X3
