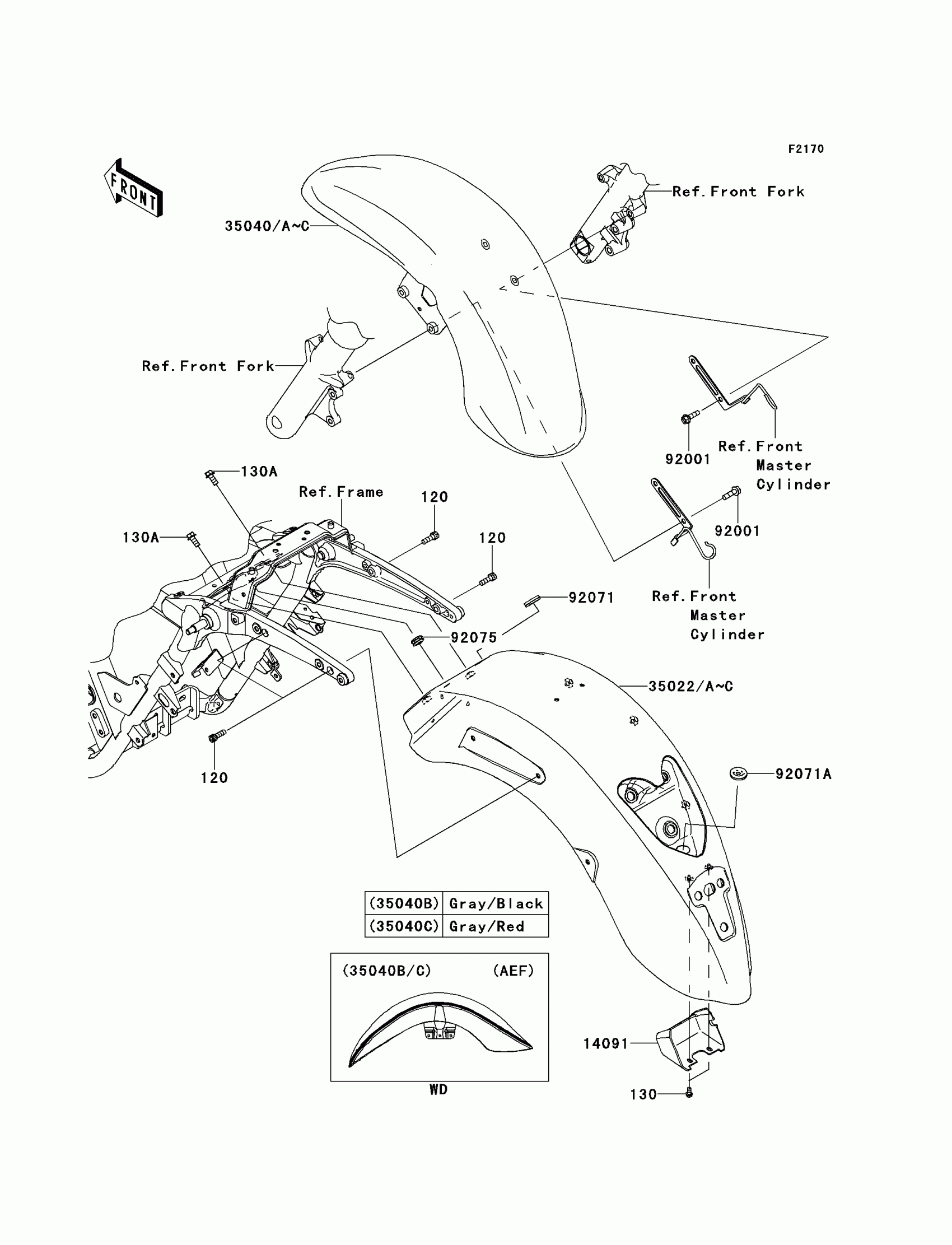

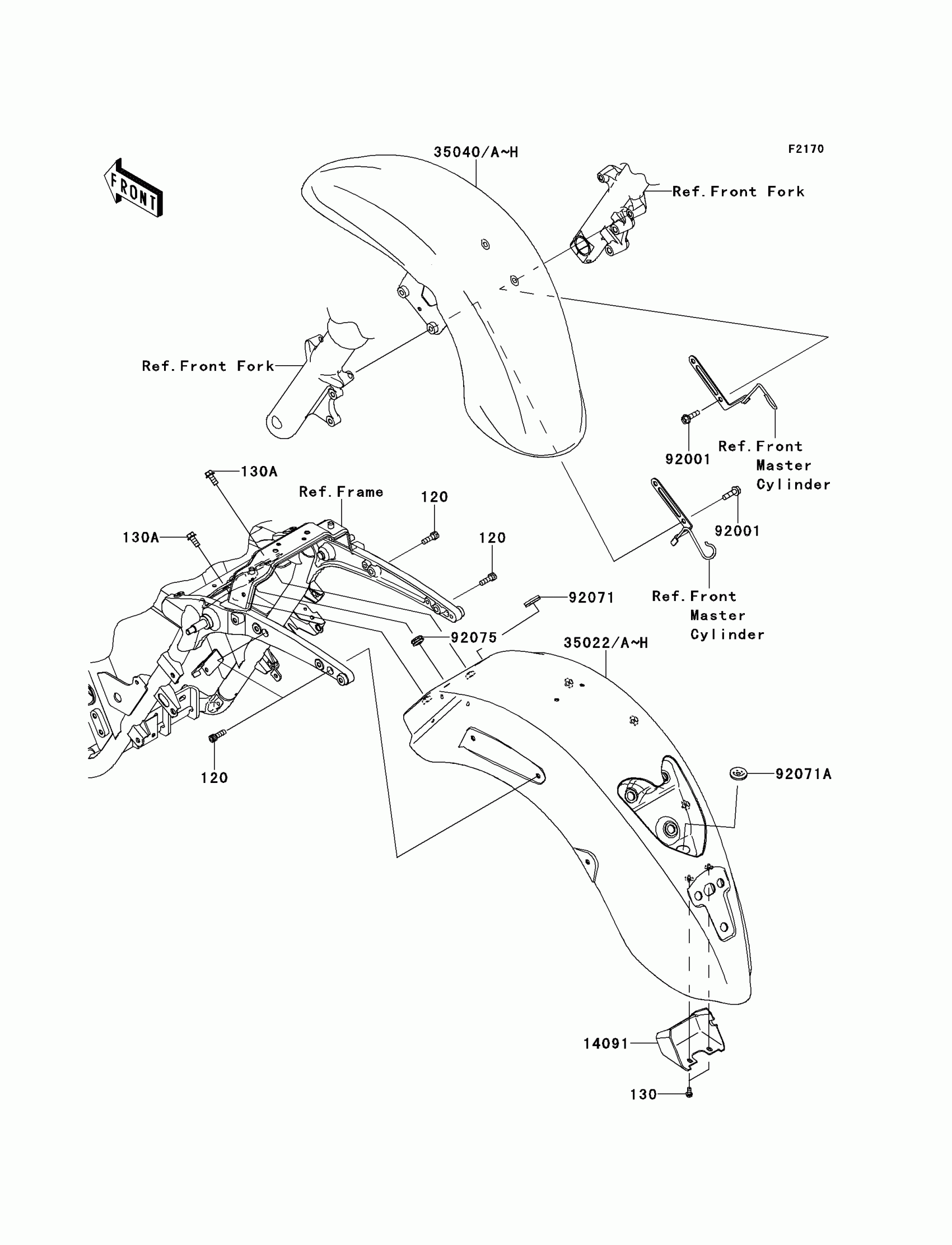

Kawasaki VULCAN® 1700 VOYAGER® Fenders Diagram

Description

Price

120

BOLT-SOCKET,8X25

120CA0825

$2.06

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

14091

COVER,HARNESS CONNECTOR

14091-1630

$9.96

35022

FENDER-COMP-REAR,BLACK

35022-0066-B5

$1,030.96

35022B

FENDER-COMP-REAR,P.C.WHITE

35022-0066-667

$1,030.96

35040

FENDER-COMP-FRONT,BLACK

35040-0017-B5

$775.36

35040A

FENDER-COMP-FRONT,P.C.WHITE

35040-0017-667

$730.34

92001

BOLT,FLANGED,8X28

92001-1095

$6.57

92071

GROMMET

92071-1228

$6.51

92071A

GROMMET

92071-1265

$4.63

92075

DAMPER

92075-1067

$4.69
