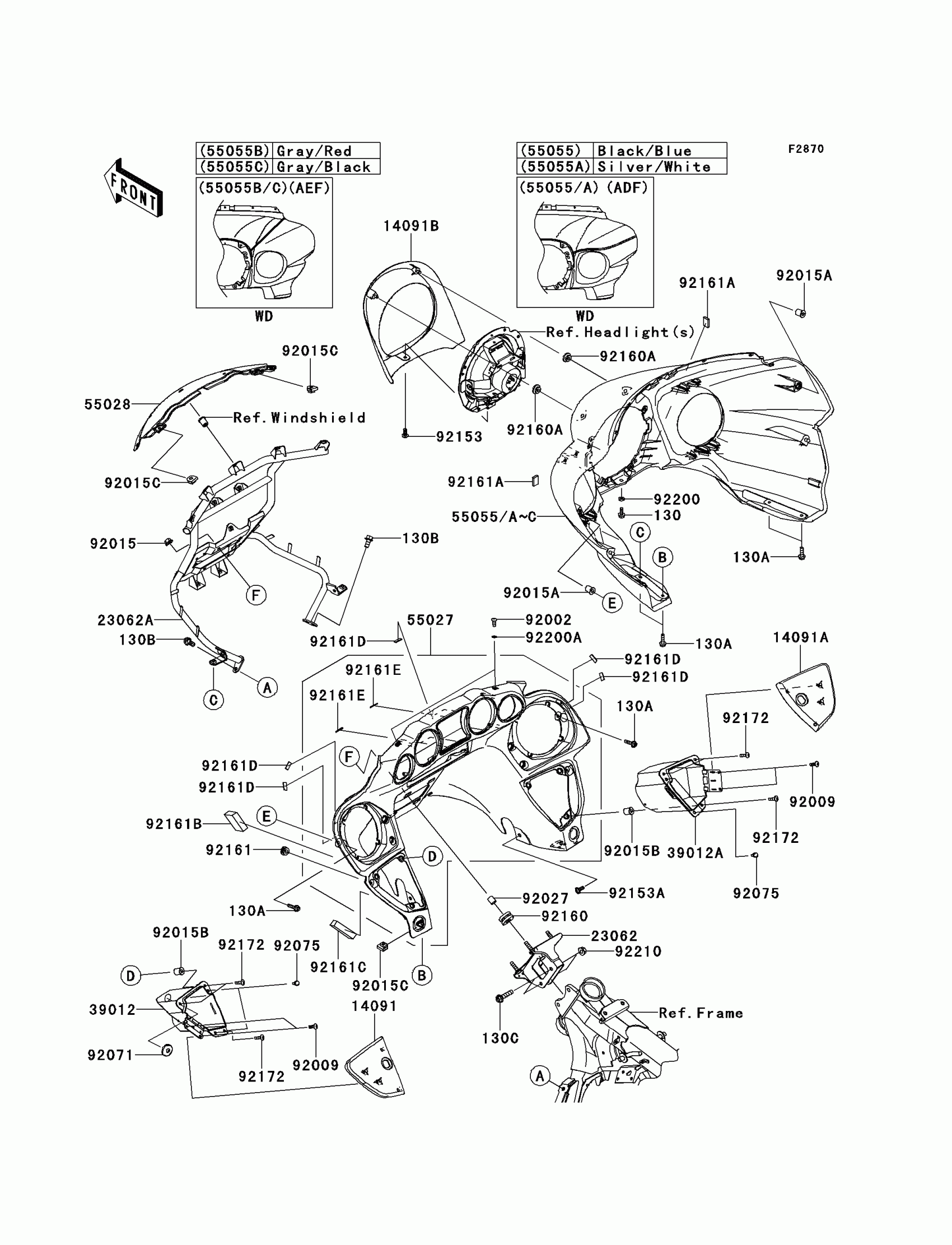

Kawasaki VULCAN® 1700 VOYAGER® Cowling Diagram

#

Description
Price

14091

COVER,STORAGE CASE,LH,F.BLACK

14091-0946-6Z

$21.76

14091A

COVER,STORAGE CASE,RH,F.BLACK

14091-0947-6Z

$21.76

14091B

COVER,HEAD LAMP

14091-0948

$261.67

23062

BRACKET-COMP,HEAD PIPE

23062-0105

$98.06

23062A

BRACKET-COMP,COWLING

23062-0720

$348.78

39012

CASE-STORAGE,LH

39012-0027

$58.31

39012A

CASE-STORAGE,RH

39012-0028

$50.40

55027

COWLING-ASSY,UPP,INNER,BLACK

55027-0063-6Z

$647.44

55028

COWLING,CNT,F.BLACK

55028-0227-6Z

$56.14

55055

COWLING,UPP,OUTER,BLACK/BLUE

55055-5074-45D

$1,302.61

55055A

COWLING,UPP,OUTER,SILVER/WHITE

55055-5077-18Q

$1,302.61

92002

BOLT,6X14

92002-1700

$4.71

92009

SCREW,TAPPING,5X10

92009-1332

$2.99

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT

92015-1700

$6.55

92015B

NUT,WELL,5MM

92015-1757

$5.58

92015C

NUT,CLIP,6MM

92015-1904

$4.93

92027

COLLAR,8.8X12X14

92027-012

$4.67

92071

GROMMET,TAIL LAMP WIRE

92071-079

$3.27

92075

DAMPER,6X10X15

92075-1808

$1.06

92153

BOLT,SOCKET,6X16

92153-0817

$1.57

92153A

BOLT,SOCKET,6X15

92153-1451

$1.53

92160

DAMPER

92160-1007

$4.18

92160A

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0317

$2.34

92161A

DAMPER

92161-0717

$0.86

92161B

DAMPER

92161-0784

$2.25

92161C

DAMPER

92161-0785

$2.25

92161D

DAMPER

92161-0965

$1.44

92161E

DAMPER,3X25X0.3

92161-0996

$0.85

92172

SCREW,5X18

92172-0428

$0.86

130

BOLT-FLANGED,6X16

130AA0616

$0.51

130A

BOLT-FLANGED,6X22

130BB0622

$2.79

130B

BOLT-FLANGED,8X16

130BB0816

$1.27

130C

BOLT-FLANGED,8X35

130BB0835

$3.39

92200

WASHER,6.5X12X2

92200-0511

$2.25

92200A

WASHER,6.2X10X1

92200-1465

$1.20

92210

NUT,FLANGED,8MM

92210-0004

$4.07
