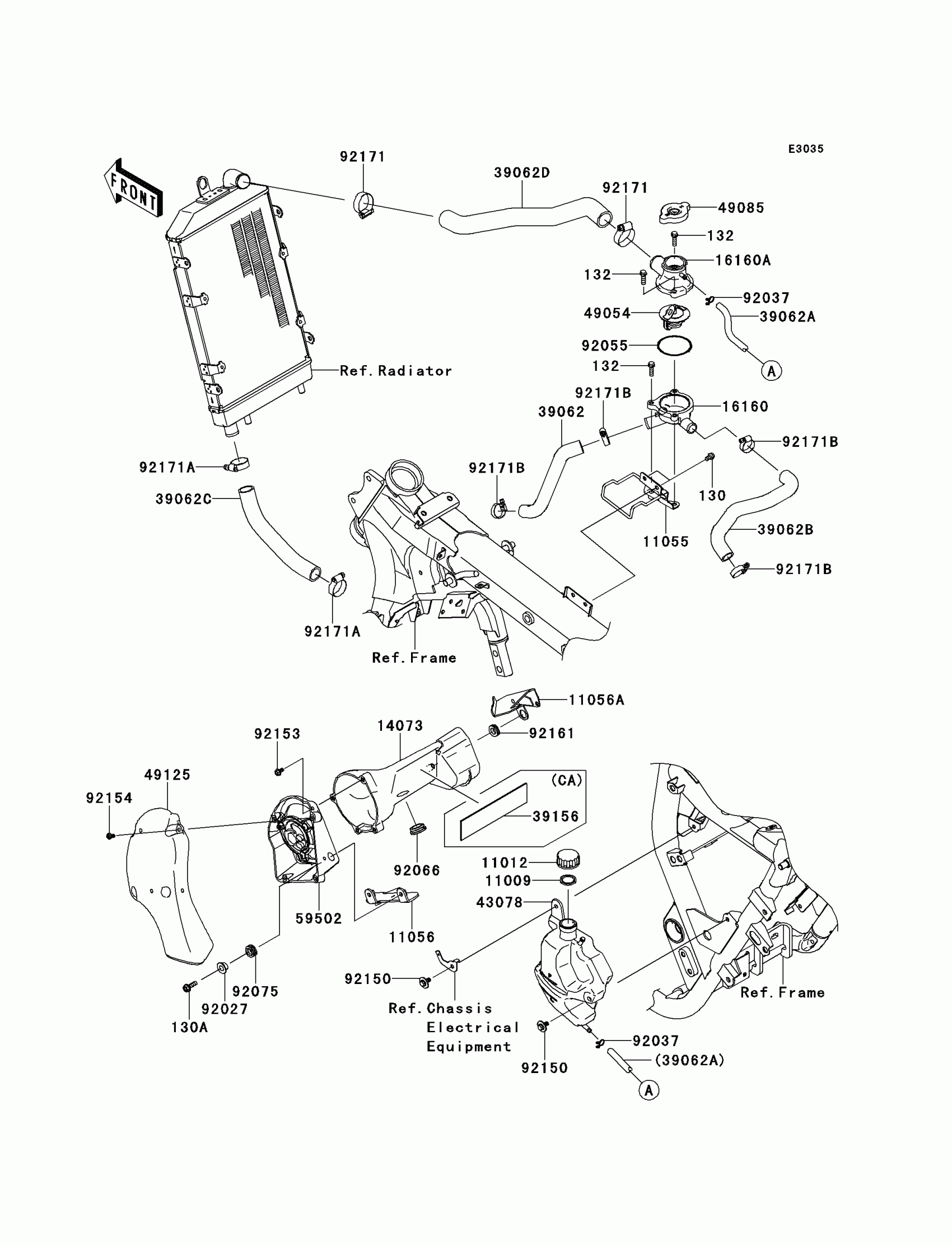

Kawasaki VULCAN® 1700 VOYAGER® Cooling Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X20
130BA0620
$1.74
132
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11055
BRACKET,THERMOCASE
11055-0571
$30.15
11056
BRACKET
11056-1471
$28.40
11056A
BRACKET
11056-1948
$94.36
14073
DUCT
14073-0739
$93.50
16160
BODY,LWR
16160-0158
$60.49
16160A
BODY,UPP
16160-1152
$67.73
39062
HOSE-COOLING,FR HEAD-THERMO
39062-0245
$14.66
39062A
HOSE-COOLING
39062-0291
$16.24
39062B
HOSE-COOLING,RR HEAD-THERMO
39062-0315
$21.40
39062C
HOSE-COOLING,RAD-W/P IN PIPE
39062-0600
$17.98
39062D
HOSE-COOLING,THERMO-RAD
39062-0601
$36.62
43078
RESERVOIR
43078-0067
$43.39
49054
THERMOSTAT
49054-0004
$59.01
49085
CAP-ASSY-PRESSURE,P1.1
49085-1070
$50.52
49125
SHROUD
49125-0565
$46.93
59502
FAN-ASSY
59502-0563
$370.56
92027
COLLAR
92027-1045
$5.52
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,53.5X2.6
92055-112
$6.63
92066
PLUG
92066-1389
$4.26
92075
DAMPER
92075-1634
$4.69
92150
BOLT,FLANGED,6X14,WASHER
92150-1392
$4.80
92153
BOLT,FLANGED,5X10
92153-1881
$1.34
92154
BOLT,SOCKET,5X10
92154-0211
$2.12
92161
DAMPER
92161-1451
$7.58
92171
CLAMP
92171-0179
$8.20
92171A
CLAMP
92171-0261
$16.83
92171B
CLAMP
92171-0338
$8.36
39156
PAD,160X40X2
39156-0845
$8.53
