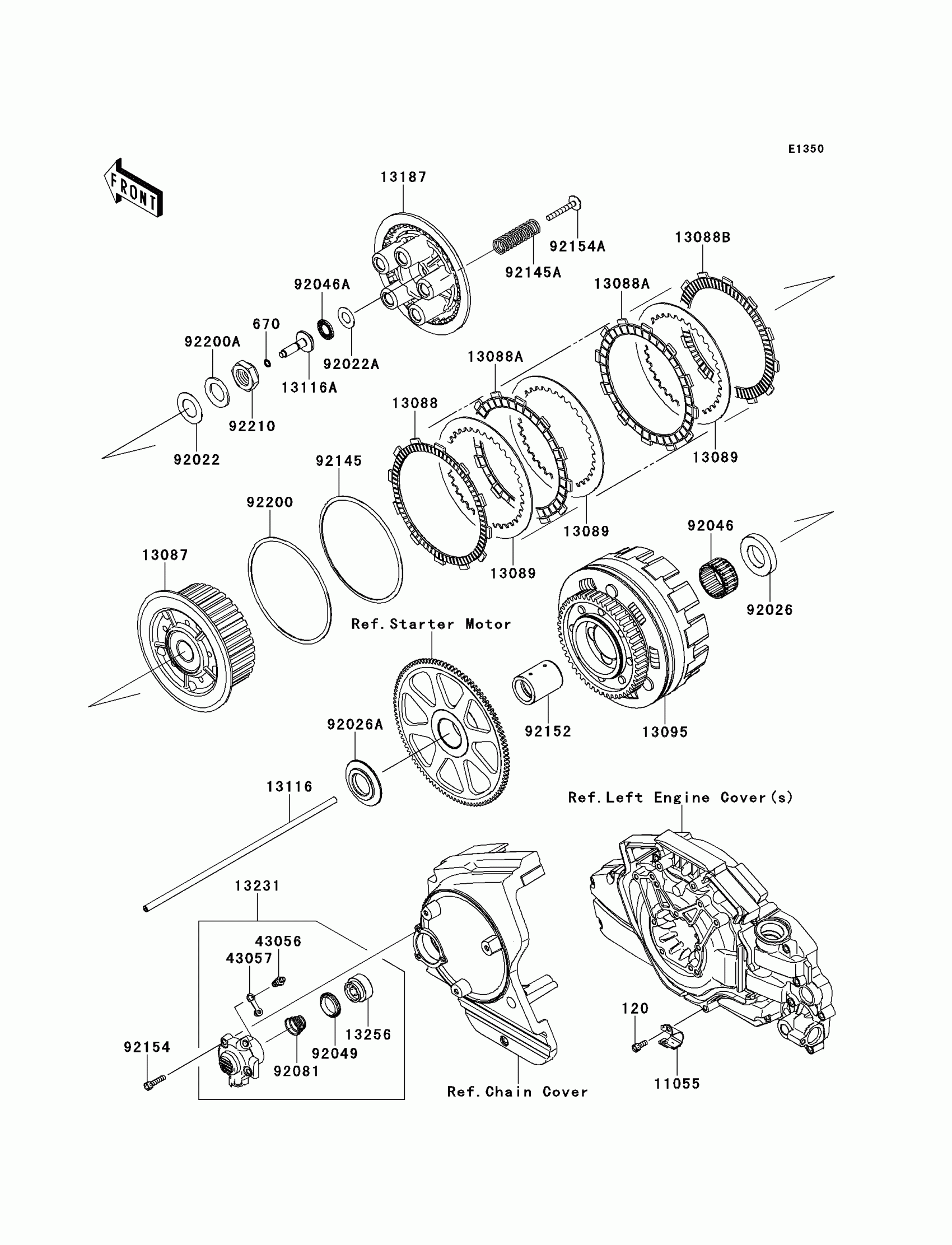

Kawasaki VULCAN® 1700 VOYAGER® Clutch Diagram
#
Description
Price
120
BOLT-SOCKET,6X14
120CC0614
$2.61
670
O RING,7MM
670D1507
$1.70
11055
BRACKET
11055-0528
$8.44
13087
HUB-CLUTCH
13087-0052
$160.70
13088
PLATE-FRICTION
13088-0001
$18.55
13088A
PLATE-FRICTION
13088-0011
$18.55
13088B
PLATE-FRICTION
13088-1146
$17.67
13089
PLATE-CLUTCH,T=2.0
13089-1075
$14.01
13095
HOUSING-COMP-CLUTCH
13095-0111
$881.28
13116
ROD-PUSH
13116-0027
$45.48
13116A
ROD-PUSH
13116-0033
$30.15
13187
PLATE-CLUTCH OPERATING
13187-0002
$93.81
13231
RELEASE-ASSY-CLUTCH
13231-0003
$153.35
13256
PISTON
13256-1052
$59.07
43056
BREATHER
43056-1055
Unavailable
43057
CAP-BREATHER
43057-1001
$4.91
92022
WASHER,25.3X44X1
92022-1390
$4.87
92022A
WASHER,15.1X29X1.0
92022-1463
$5.00
92026
SPACER
92026-0136
$7.60
92026A
SPACER
92026-0146
$45.62
92046
BEARING-NEEDLE,K40X48X25V3
92046-0001
$36.48
92046A
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92049
SEAL-OIL,PISTON
92049-1165
$19.64
92081
SPRING,CLUTCH RELEASE
92081-1644
$8.51
92145
SPRING
92145-0033
$7.88
92145A
SPRING
92145-0771
$9.80
92152
COLLAR,30X40X52.3
92152-0190
$63.95
92154
BOLT,SOCKET,6X25
92154-0085
$2.55
92154A
BOLT,CLUTCH OPERATING
92154-0352
$5.95
92200
WASHER,140.1X150X1.2
92200-0015
$7.95
92200A
WASHER,25.5X42X2.6
92200-0016
$5.79
92210
NUT,25MM
92210-0138
$5.79
