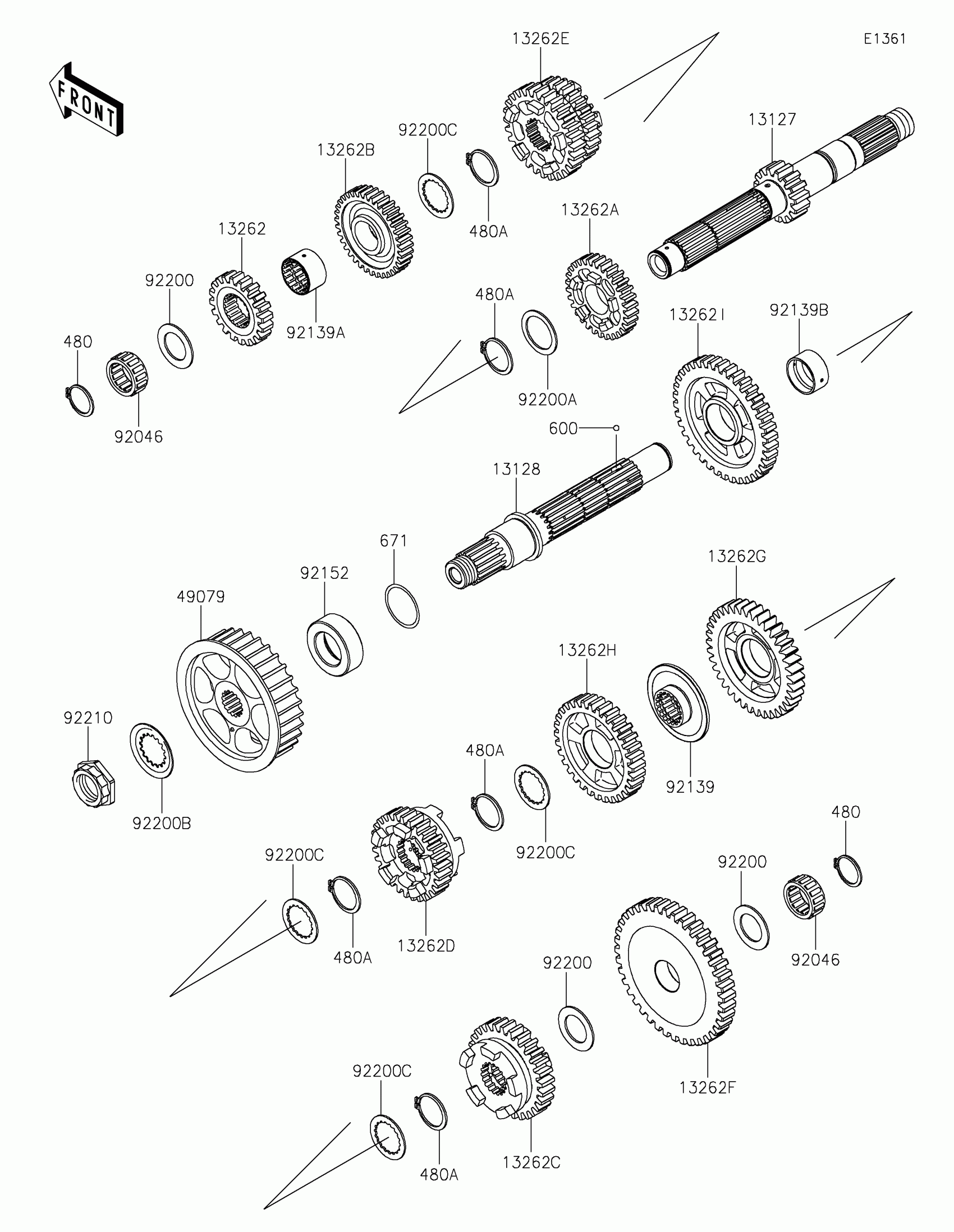

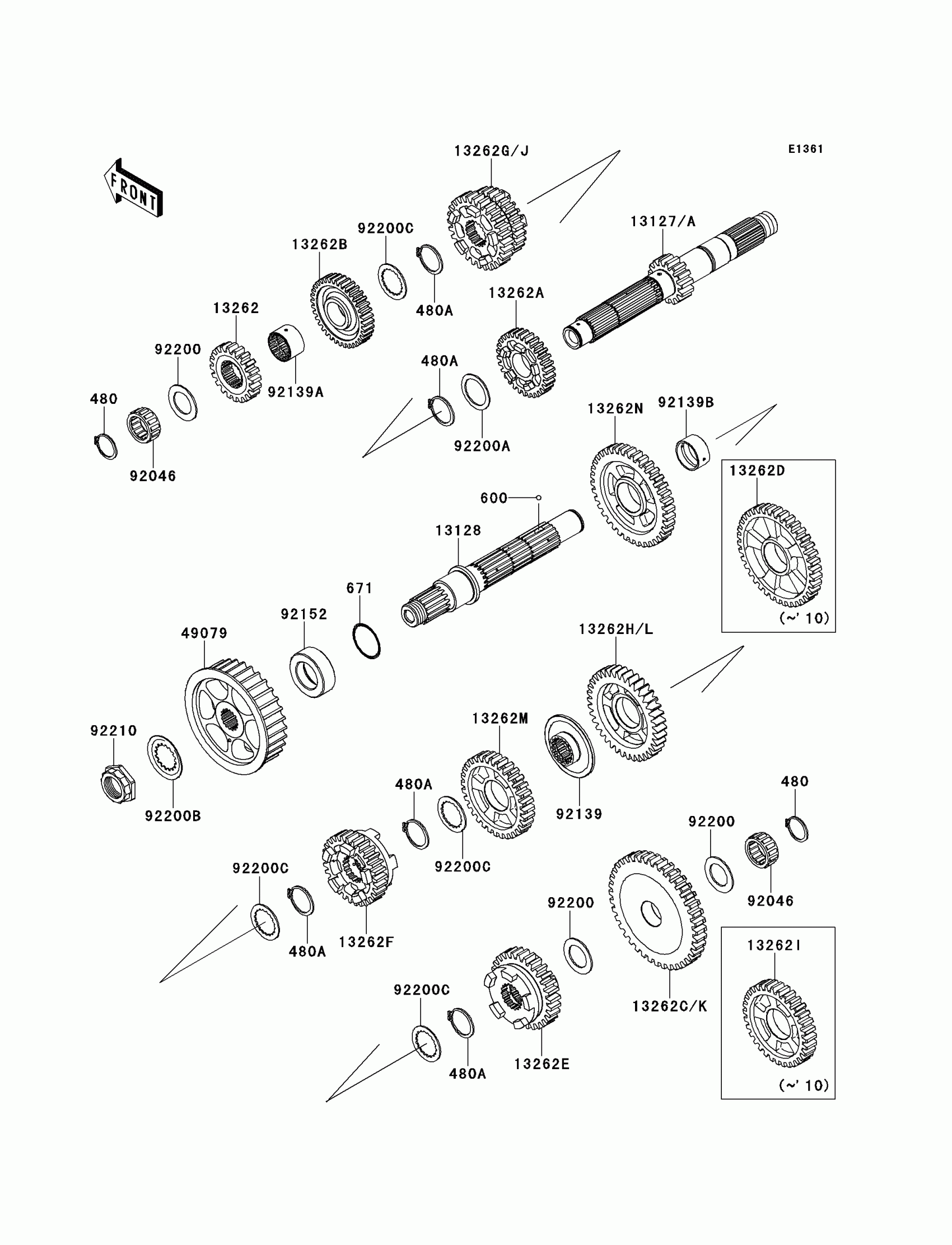

Kawasaki VULCAN® 1700 VOYAGER® ABS Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480A

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81

671

O RING

671D2535

$6.22

13127A

SHAFT-TRANSMISSION INPUT

13127-0083

$444.19

13128

SHAFT-TRANSMISSION OUTPUT

13128-0057

$444.19

13262

GEAR,INPUT 2ND,20T

13262-0603

$143.91

13262A

GEAR,INPUT 5TH,30T

13262-0605

$143.91

13262B

GEAR,INPUT 6TH,36T

13262-0606

$143.91

13262E

GEAR,OUTPUT 5TH,29T

13262-0611

$143.91

13262F

GEAR,OUTPUT 6TH,29T

13262-0612

$143.91

13262J

GEAR,INPUT 3RD&4TH,27T&28T

13262-0829

$143.91

13262K

GEAR,OUTPUT LOW,44T

13262-0831

$143.91

13262L

GEAR,OUTPUT 3RD,38T

13262-0832

$143.91

13262M

GEAR,OUTPUT 4TH,32T

13262-0833

$143.91

13262N

GEAR,OUTPUT 2ND,38T

13262-0834

$143.91

49079

PULLEY-BELT

49079-0020

$117.62

92046

BEARING-NEEDLE,KT 253515E02 C3

92046-0007

$23.24

92139

BUSHING,OUTPUT 3RD-4TH GEAR

92139-0007

$90.72

92139A

BUSHING,INPUT TOP GEAR

92139-0236

$50.09

92139B

BUSHING,OUTPUT 2ND GEAR

92139-0237

$50.09

92152

COLLAR,30X50X17.5

92152-0657

$35.12

92200

WASHER,25.3X40X1.6

92200-0427

$5.54

92200A

WASHER,30.3X40X1.5

92200-0428

$6.61

92200B

WASHER,31X50X1

92200-0505

$3.71

92200C

WASHER,30.3X40X1.5

92200-1381

$12.60

92210

NUT,25MM

92210-0554

$38.53
