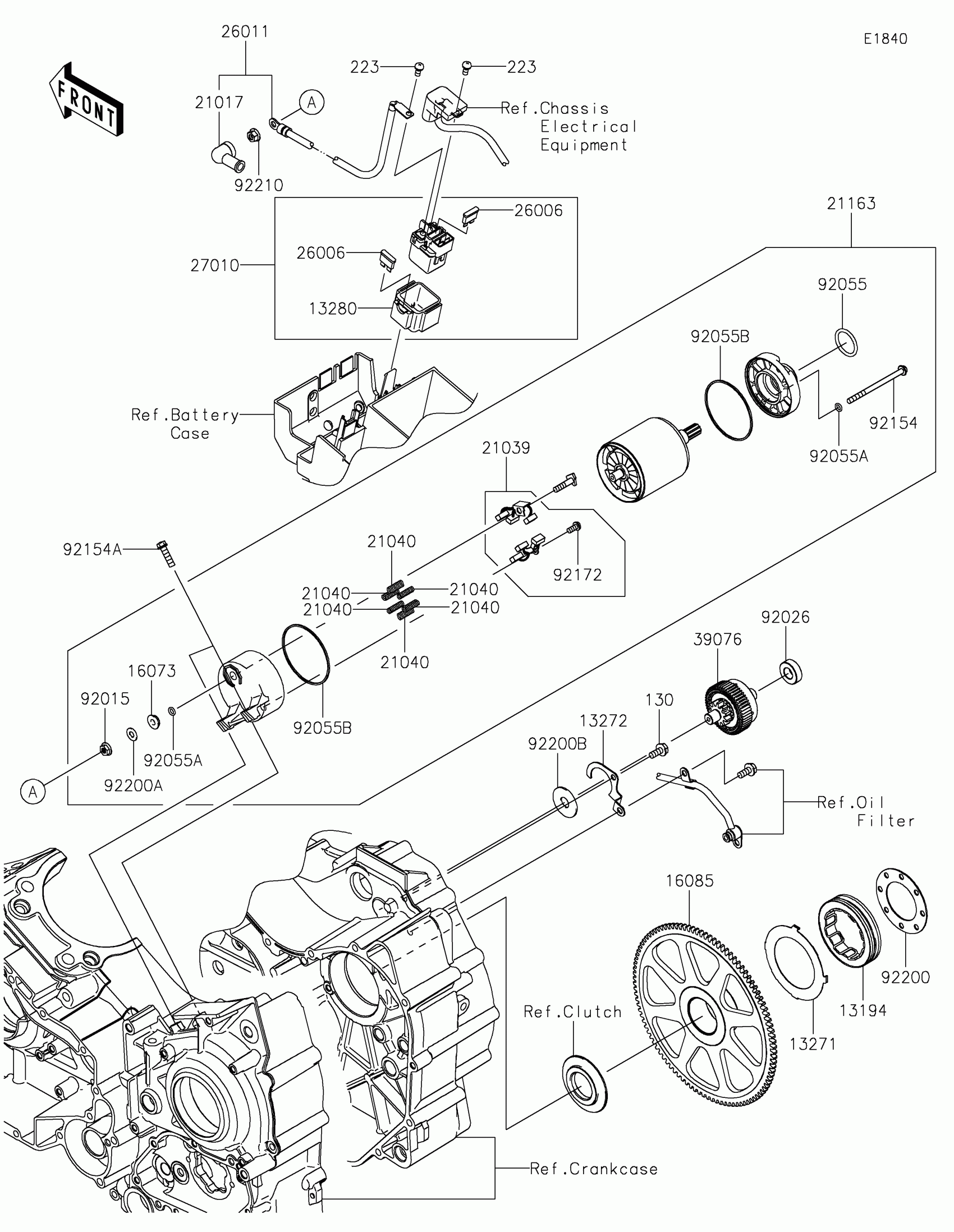

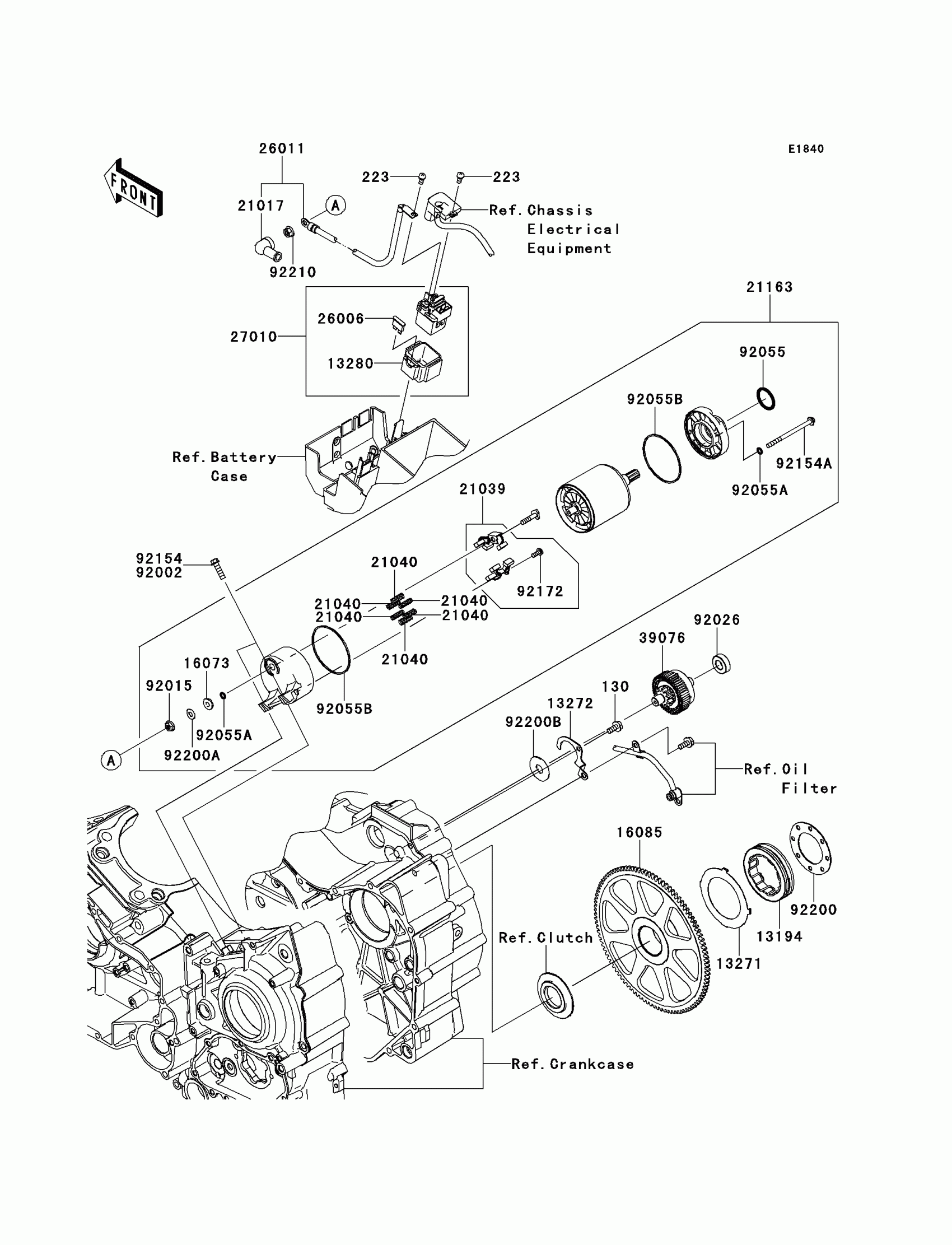

Kawasaki VULCAN® 1700 VOYAGER® ABS Starter Motor Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.43

13194

CLUTCH-ONEWAY

13194-0001

$158.87

13271

PLATE

13271-0037

$12.27

13272

PLATE,LIMITER

13272-0673

$5.29

13280

HOLDER

13280-1263

$13.72

16073

INSULATOR

16073-0053

$11.93

16085

GEAR,FREE WHEEL

16085-0121

$175.30

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21039

BRUSH

21039-0009

$42.60

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0055

$865.30

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD

26011-0239

$56.68

27010

SWITCH,MAGNETIC

27010-1446

$136.50

39076

LIMITER,STARTER IDLE GEAR

39076-0017

$241.76

92002

BOLT,6X25

92002-1344

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92026

SPACER,12.3X25X8.1

92026-0127

$7.60

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92154A

BOLT

92154-0265

$7.24

92172

SCREW

92172-0334

$4.65

92200

WASHER,44X73.5X1.2

92200-0019

$5.79

92200A

WASHER

92200-0386

$4.65

92200B

WASHER,12X34X1.6

92200-0478

$3.71

92210

NUT,6MM

92210-0188

$2.15
