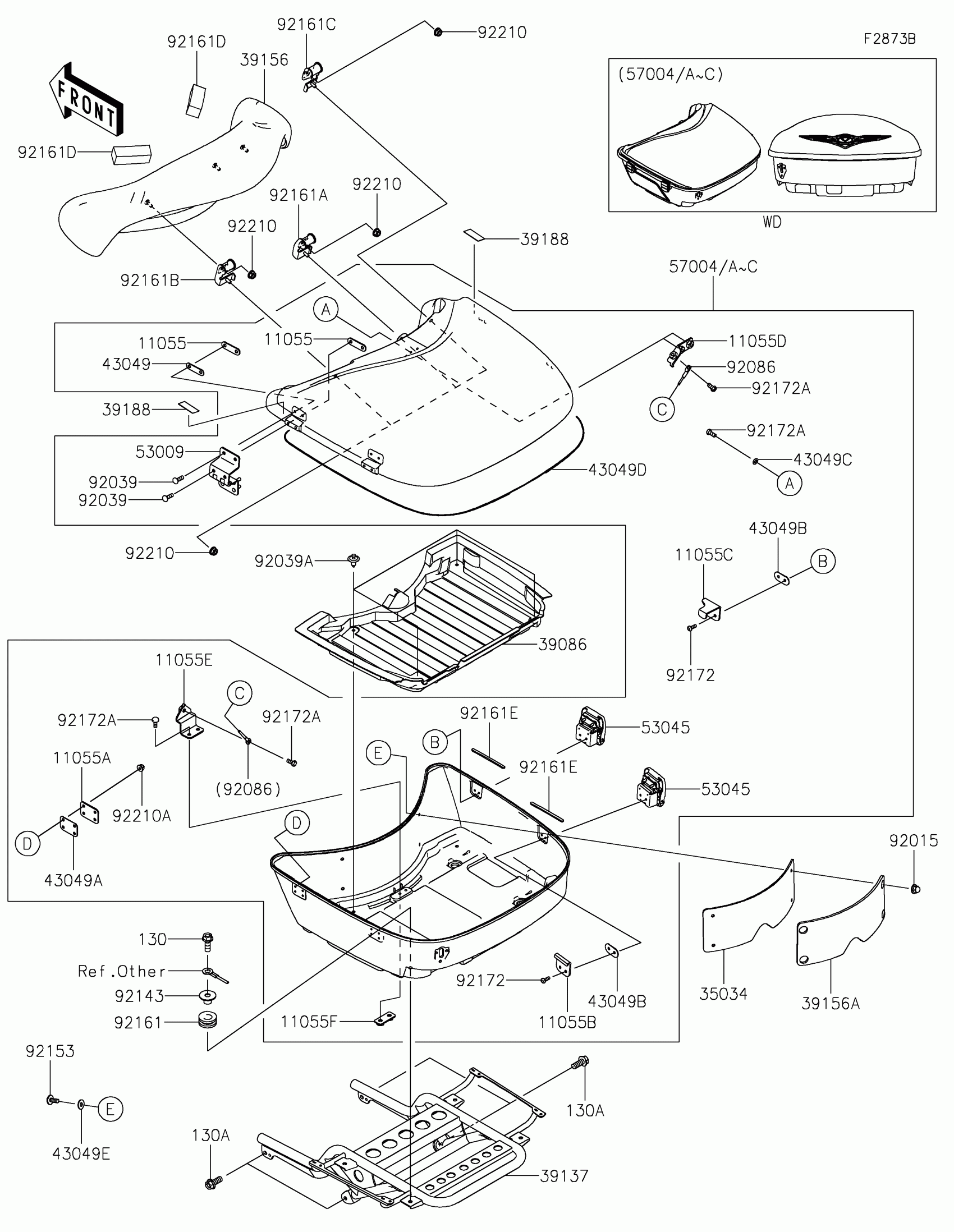

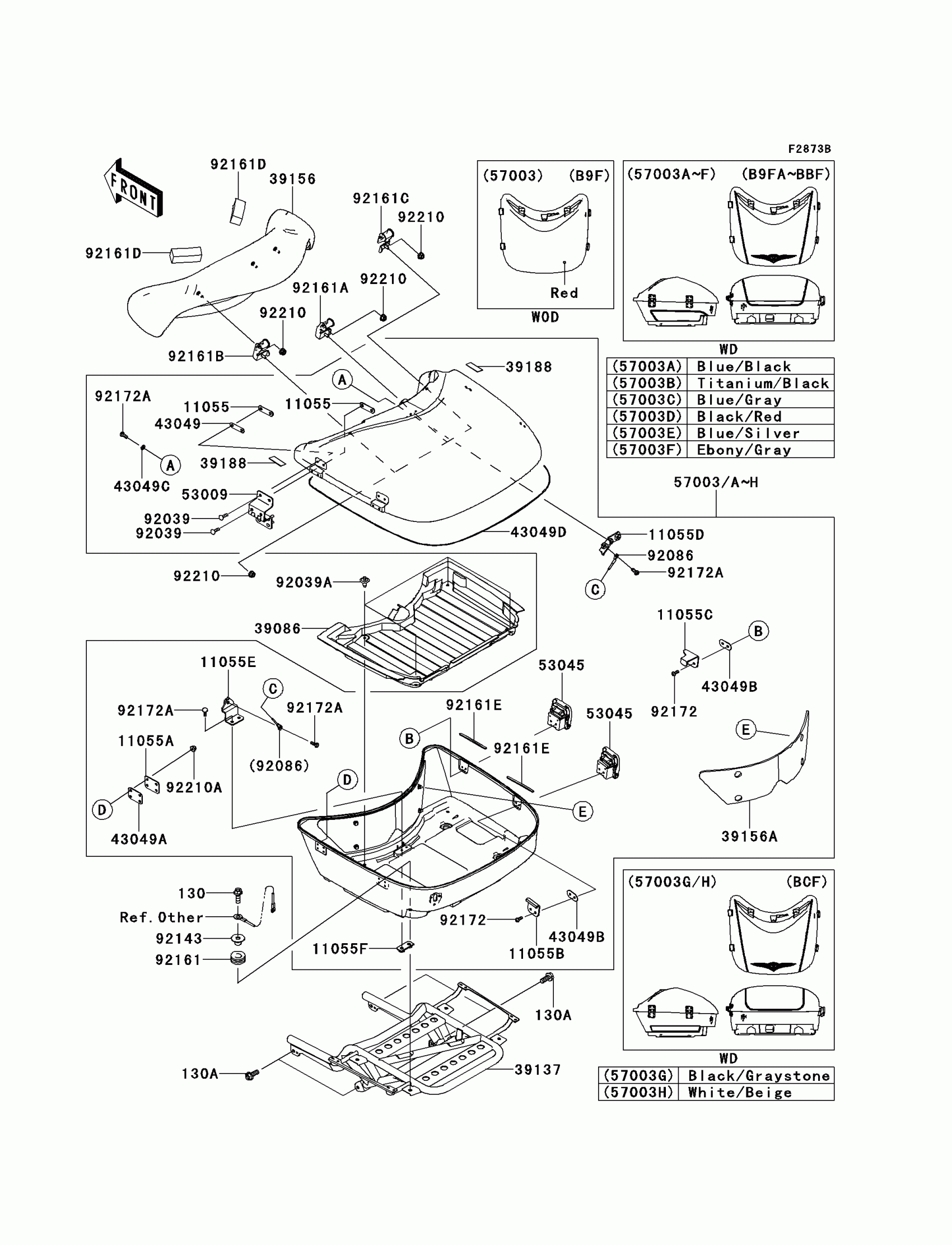

Kawasaki Vulcan 1700 Voyager ABS Saddlebags(Trunk) Diagram

#

Description
Price

11055

BRACKET

11055-1899

$2.75

11055A

BRACKET

11055-1900

$3.52

11055B

BRACKET

11055-1902

$5.95

11055C

BRACKET

11055-1904

$7.89

11055D

BRACKET

11055-1905

$21.33

11055E

BRACKET

11055-1906

$15.02

11055F

BRACKET

11055-1907

$11.71

35034

REINFORCE

35034-0564

$43.54

39086

PAD-STORAGE

39086-0001

$69.26

39137

STAY-COMP

39137-0555

$467.05

39156

PAD,UPP,BLACK

39156-0523-MA

$364.71

39156A

PAD

39156-0717

$21.89

39188

TAPE

39188-0016

$4.22

43049

PACKING

43049-0016

$2.73

43049A

PACKING

43049-0017

$3.48

43049B

PACKING

43049-0018

$2.73

43049C

PACKING

43049-0019

$2.73

43049D

PACKING

43049-0020

$43.00

43049E

PACKING

43049-0021

$1.30

53009

HINGE

53009-0028

$64.16

53045

HOOK-ASSY

53045-0015

$109.77

57004B

BAG-ASSY,CNT,M.C.GRAY

57004-5058-51A

$2,279.47

57004C

BAG-ASSY,CNT,M.O.BLUE

57004-5059-726

$2,194.67

92015

NUT,LOCK 6MM

92015-1262

$5.52

92039

RIVET

92039-0091

$4.92

92039A

RIVET

92039-1289

$2.80

92086

WIRE

92086-0014

$38.53

92143

COLLAR

92143-1450

$9.91

92153

BOLT,SOCKET,6X14

92153-1361

$2.61

92161

DAMPER

92161-0290

$6.07

92161A

DAMPER

92161-0754

$48.91

92161B

DAMPER

92161-0755

$48.91

92161C

DAMPER

92161-0756

$48.91

92161D

DAMPER

92161-0802

$5.29

92161E

DAMPER

92161-0819

$5.29

92172

SCREW

92172-0049

$1.69

92172A

SCREW

92172-0450

$2.03

92210

NUT

92210-0401

$3.86

92210A

NUT,CAP,4MM

92210-0434

$2.61

130

BOLT-FLANGED,8X22

130BA0822

$3.21

130A

BOLT-FLANGED,8X20

130CA0820

$1.71
