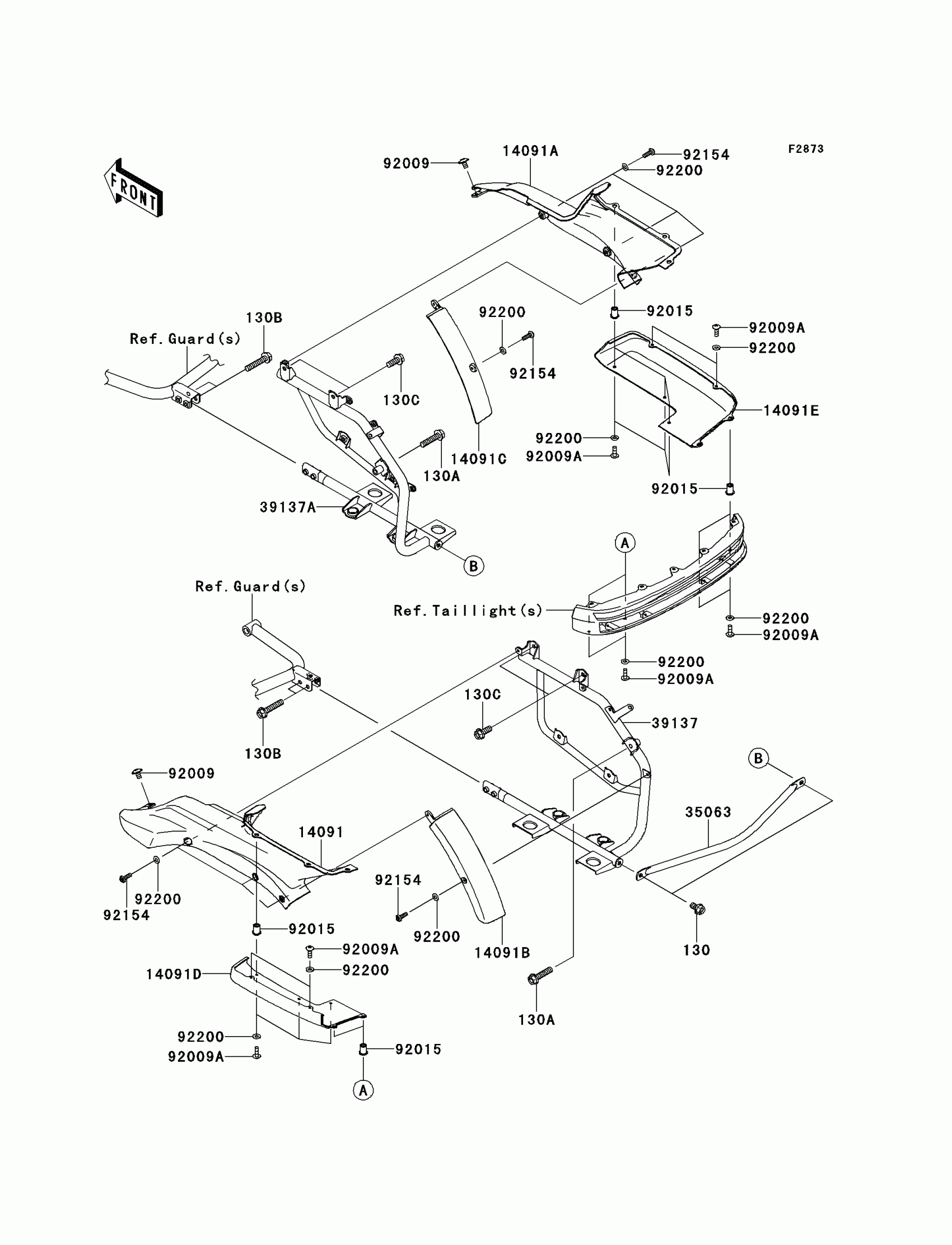

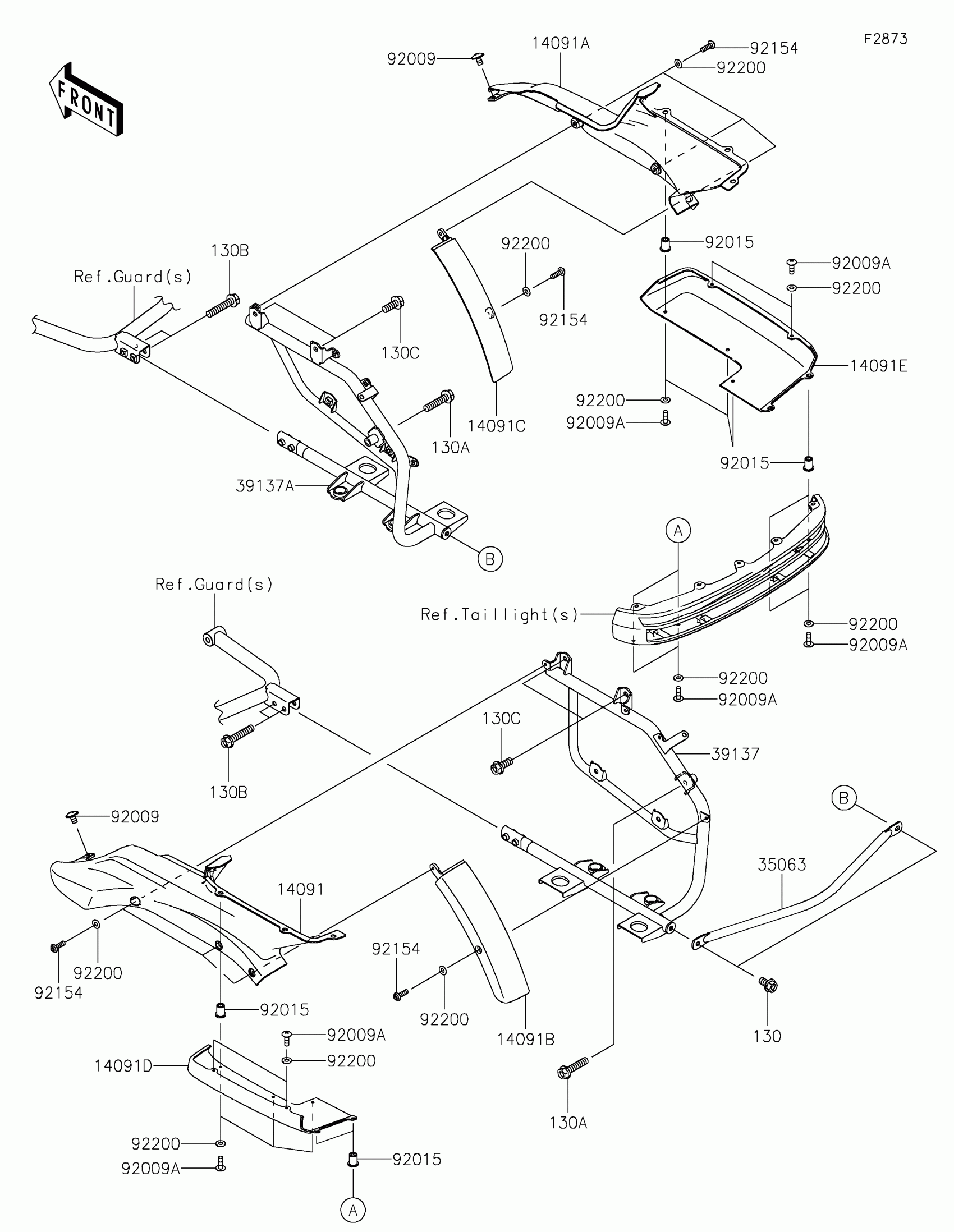

Kawasaki VULCAN® 1700 VOYAGER® ABS Saddlebags(Side Bag Bracket) Diagram

Description

Price

130

BOLT-FLANGED,8X14

130BA0814

$1.54

130A

BOLT-FLANGED,8X35

130BA0835

$1.13

130B

BOLT-FLANGED,8X40

130BA0840

$1.44

130C

BOLT-FLANGED,8X20

130CA0820

$1.27

14091

COVER,STAY,LWR,LH

14091-0950

$395.21

14091A

COVER,STAY,LWR,RH

14091-0951

$395.21

14091B

COVER,STRUT,LH

14091-0957

$65.38

14091C

COVER,STRUT,RH

14091-0958

$65.38

14091D

COVER,STAY,UPP,LH

14091-1661

$222.73

14091E

COVER,STAY,UPP,RH

14091-1662

$222.73

35063

STAY,PANNIER

35063-0537

$59.43

39137

STAY-COMP,PANNIER,LH

39137-0048

$311.16

39137A

STAY-COMP,PANNIER,RH

39137-0049

$311.16

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92009A

SCREW,5X16,WHITE

92009-1464

$2.99

92015

NUT,WELL,5MM

92015-1757

$5.58

92154

BOLT,SOCKET,5X16

92154-0287

$1.73

92200

WASHER,NATURAL,5.3X11.5X1.0

92200-0538

$0.74
