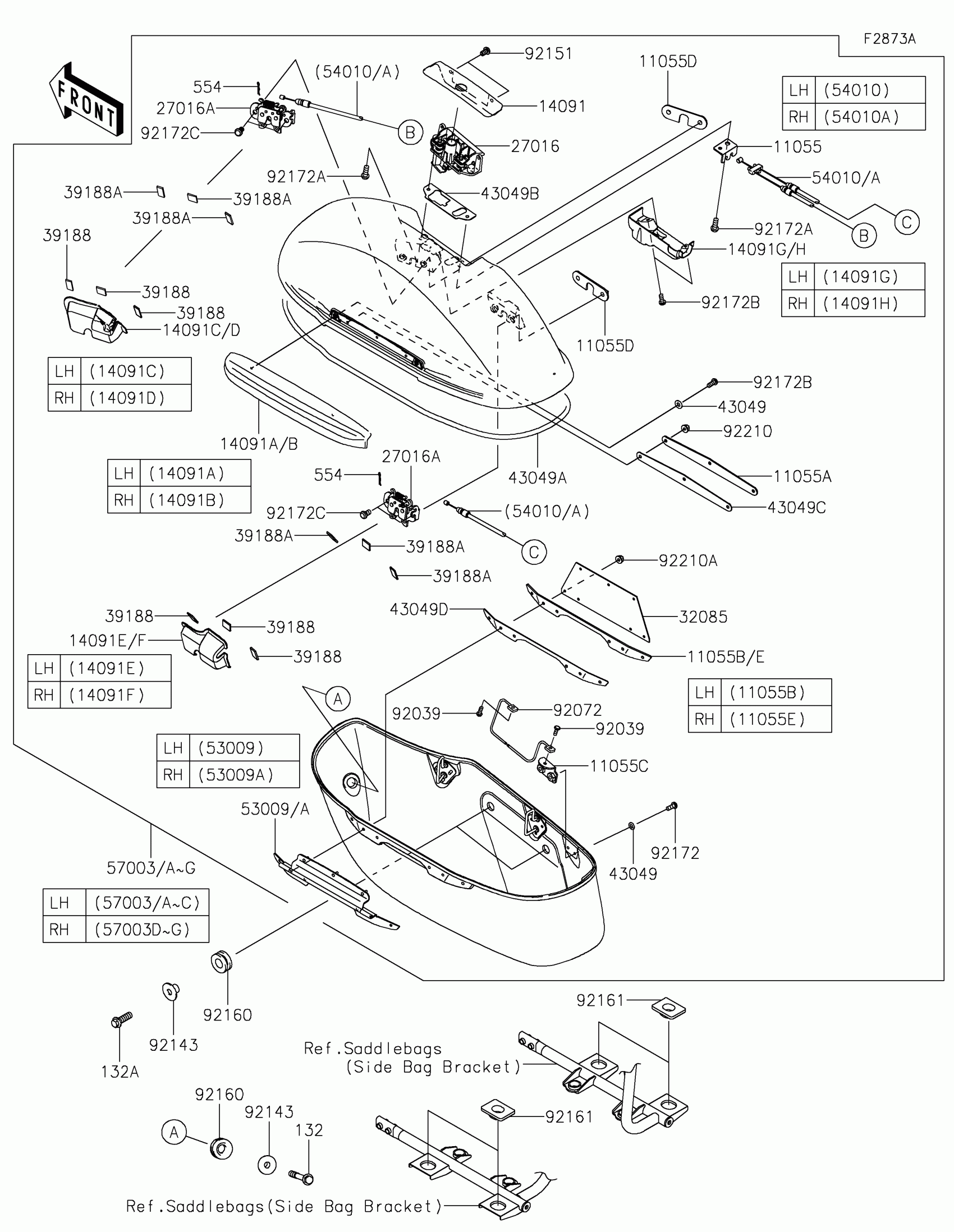

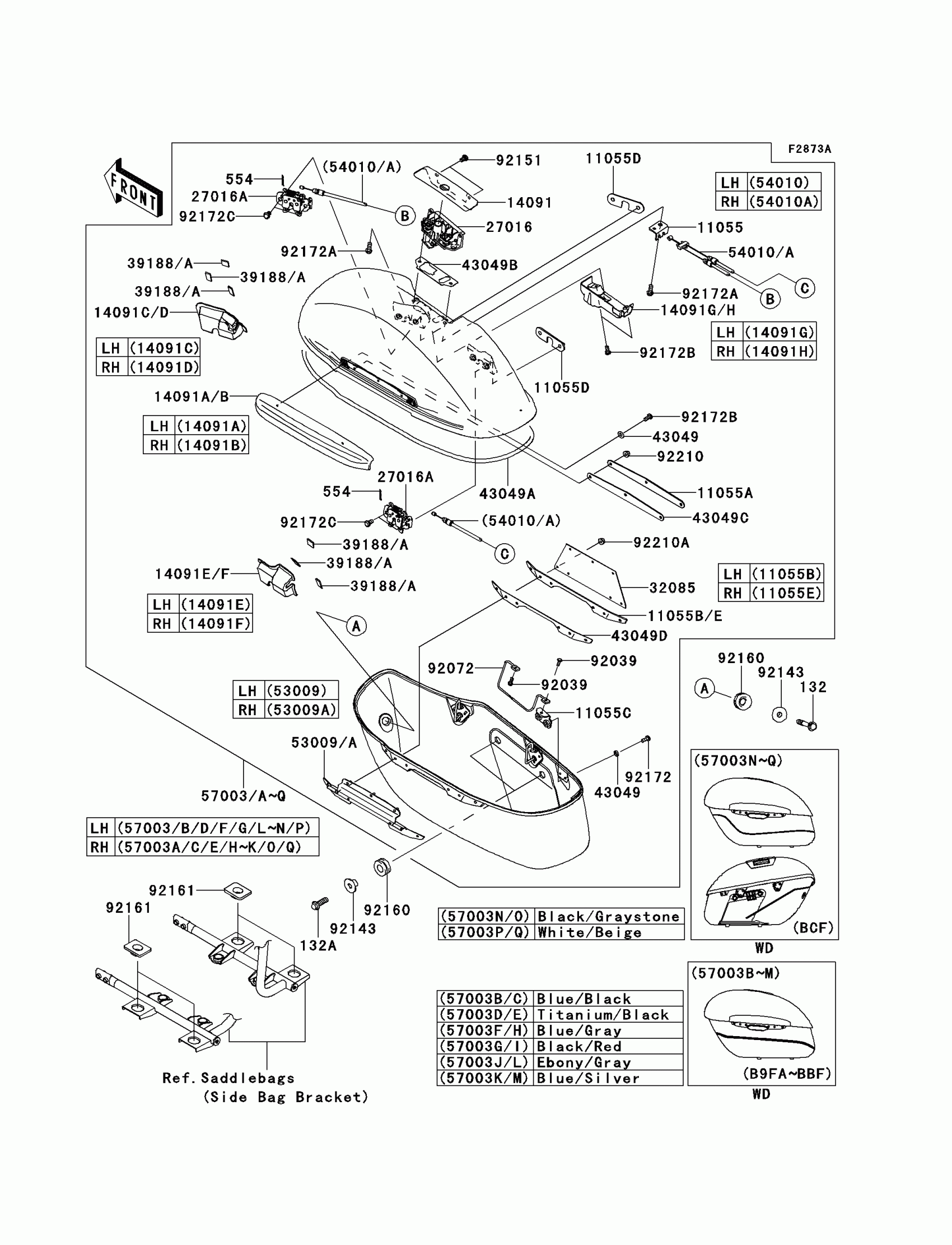

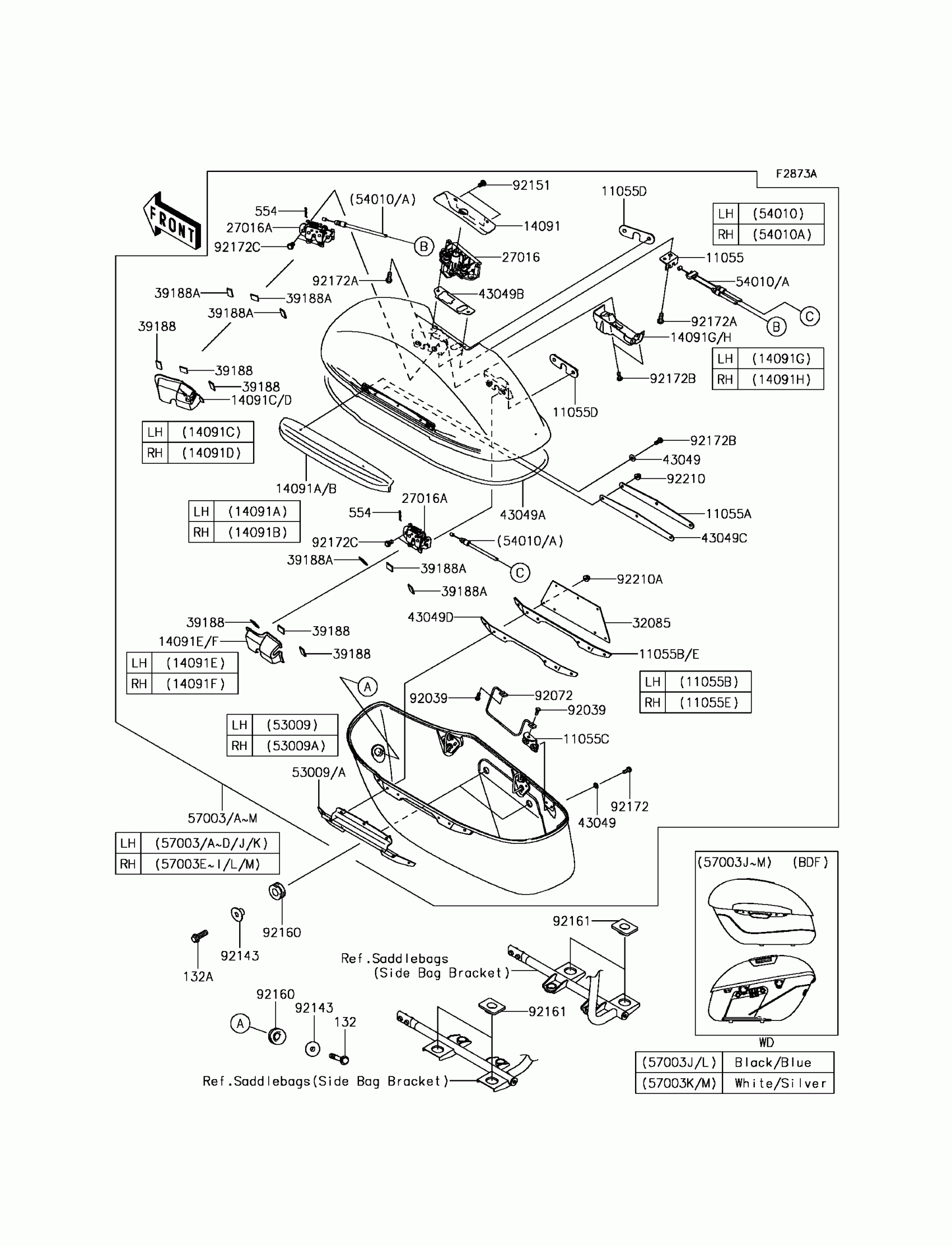

Kawasaki Vulcan 1700 Voyager ABS Saddlebags(Side Bag) Diagram

#

Description
Price

11055

BRACKET

11055-1910

$4.92

11055A

BRACKET

11055-1911

$7.24

11055B

BRACKET,LH

11055-1912

$45.89

11055C

BRACKET,BELT

11055-1913

$16.25

11055D

BRACKET

11055-1916

$29.89

11055E

BRACKET,RH

11055-1917

$45.05

14091

COVER,PANNIER LOCK

14091-1667

$59.41

14091A

COVER,PANNIER HINGE,LH

14091-1668

$99.87

14091B

COVER,PANNIER HINGE,RH

14091-1669

$99.87

14091C

COVER,PANNIER LOCK,FR,LH

14091-1749

$28.52

14091D

COVER,PANNIER LOCK,FR,RH

14091-1750

$28.52

14091E

COVER,PANNIER LOCK,RR,LH

14091-1751

$28.52

14091F

COVER,PANNIER LOCK,RR,RH

14091-1752

$28.52

14091G

COVER,PANNIER LOCK,CNT,LH

14091-1753

$28.52

14091H

COVER,PANNIER LOCK,CNT,RH

14091-1754

$28.52

27016

LOCK-ASSY,PANNIER CASE

27016-0026

$191.43

27016A

LOCK-ASSY,PANNIER CASE,STRIKER

27016-0029

$32.36

32085

STOPPER

32085-0187

$96.20

39188

TAPE,10X15

39188-0014

$3.48

39188A

TAPE,15X10

39188-0015

$3.48

43049

PACKING

43049-0019

$2.73

43049A

PACKING

43049-0022

$17.40

43049B

PACKING

43049-0023

$6.89

43049C

PACKING

43049-0024

$6.20

43049D

PACKING

43049-0026

$11.29

53009

HINGE,LH

53009-0029

$133.17

53009A

HINGE,RH

53009-0030

$133.17

54010

CABLE,PANNIER CASE,LH

54010-0113

$52.67

54010A

CABLE,PANNIER CASE,RH

54010-0114

$52.67

57003D

BAG-ASSY,PANNIER,LH,GRAY+BLK

57003-0091-60D

$1,509.42

57003I

BAG-ASSY,PANNIER,RH,GRAY+BLK

57003-0092-60D

$1,509.42

132

BOLT-FLANGED-SMALL,8X60

132BA0860

$5.05

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$4.12

554

PIN-SNAP

554DA0500

$2.51

92039

RIVET

92039-0063

$2.97

92072

BAND,L=320MM

92072-0140

$15.62

92143

COLLAR

92143-1450

$9.91

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92160

DAMPER

92160-1012

$5.52

92161

DAMPER

92161-0607

$8.10

92172

SCREW

92172-0450

$2.03

92172A

SCREW,6X16

92172-0452

$3.21

92172B

SCREW,TAPPING,5X12

92172-0453

$1.69

92172C

SCREW,6X16

92172-0454

$3.21

92210

NUT,CAP,4MM

92210-0434

$2.61

92210A

NUT

92210-0577

$3.52
