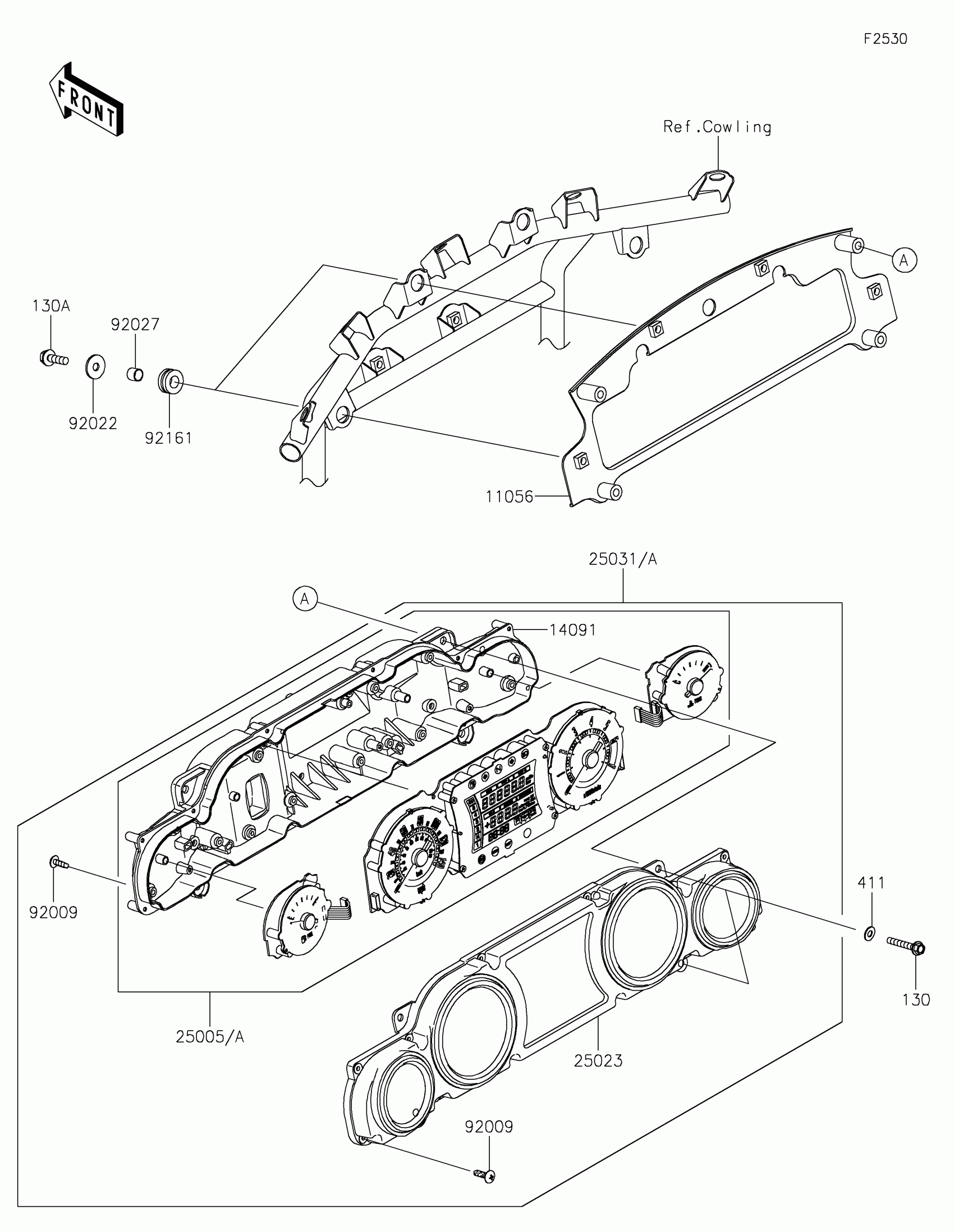

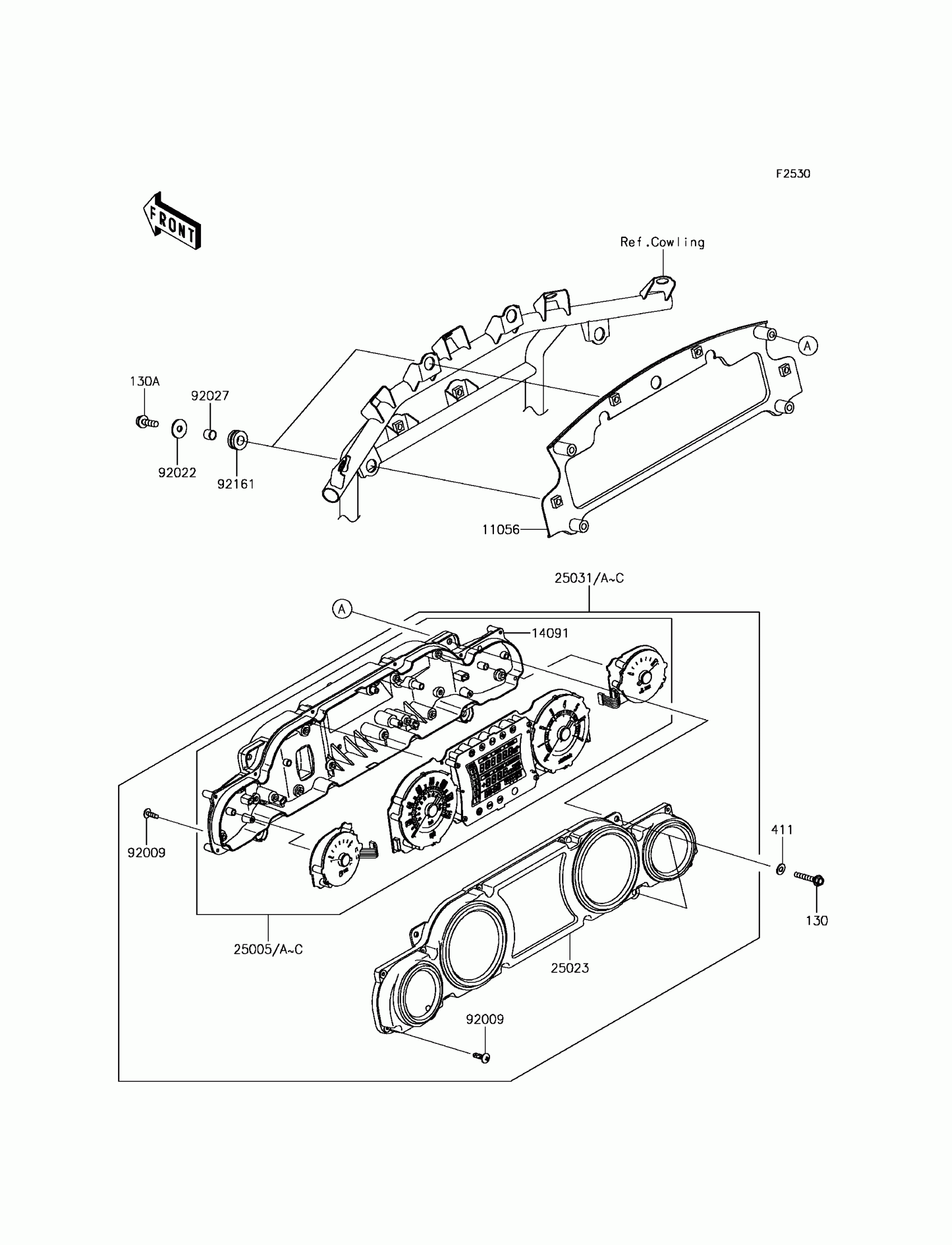

Kawasaki Vulcan 1700 Voyager ABS Meter(s) Diagram

Description

Price

130

BOLT-FLANGED,5X35

130BA0535

$4.12

130A

BOLT-FLANGED,6X20

130BA0620

$1.74

411

WASHER-PLAIN,5MM

411AB0500

$0.84

11056

BRACKET,METER

11056-1139

$67.09

14091

COVER,METER,LWR

14091-1577

$171.37

25023

COVER-METER CASE,UPP

25023-0037

$219.89

92009

SCREW,TAPPING,3X16

92009-1391

$3.65

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92027

COLLAR,6.8X10X8.5

92027-129

$5.00

92161

DAMPER

92161-0154

$3.73

25005B

SPEEDOMETER,COMBINATION,ABS

25005-0127

$1,214.38

25005C

SPEEDOMETER,COMBINATION,ABS

25005-0128

Unavailable

25031B

METER-ASSY,COMBINATION,ABS

25031-0622

$1,407.78

25031C

METER-ASSY,COMBINATION,ABS

25031-0623

Unavailable
