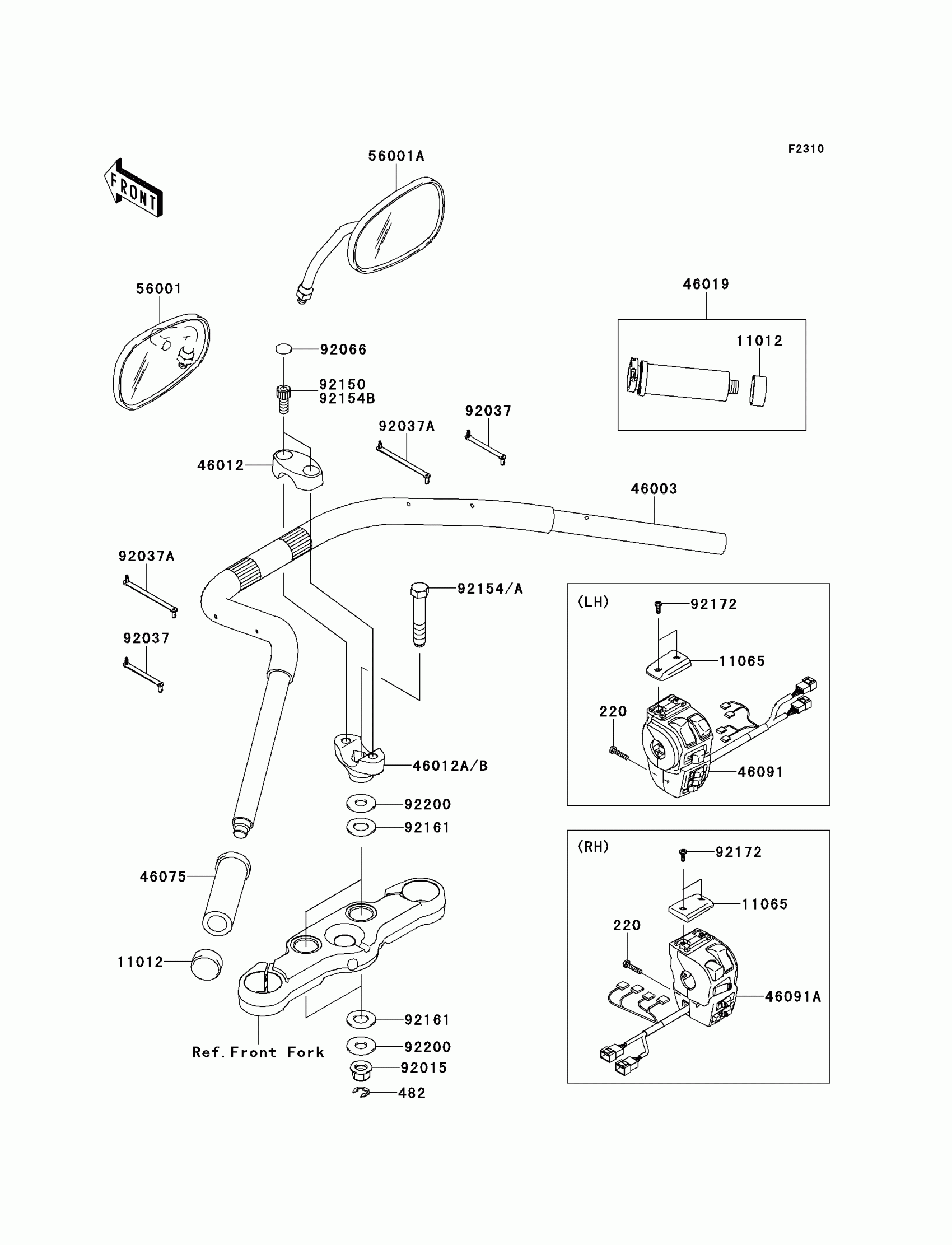

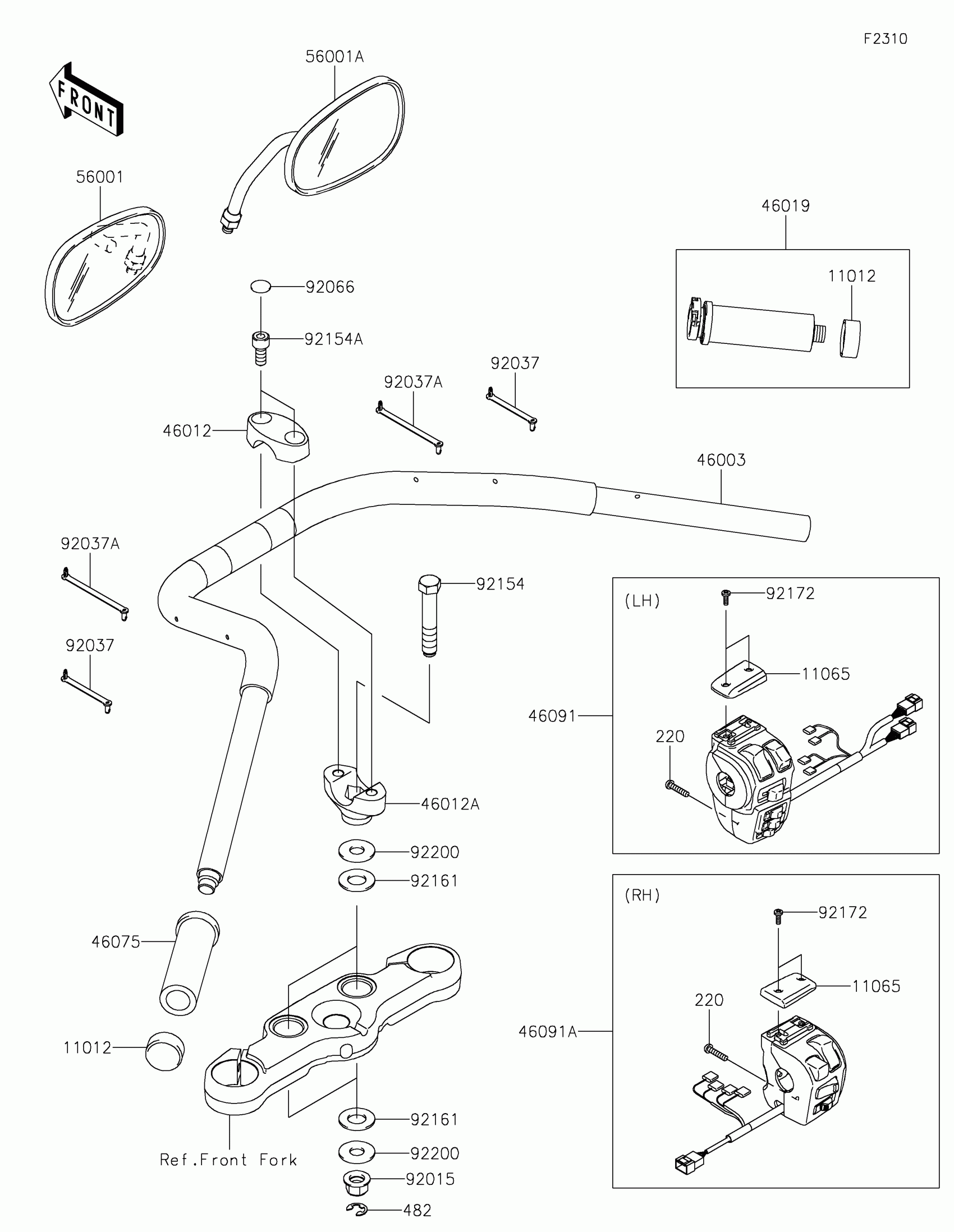

Kawasaki VULCAN® 1700 VOYAGER® ABS Handlebar Diagram

Description

Price

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

11012

CAP,GRIP END

11012-1975

$20.44

11065

CAP,HOUSING SWITCH

11065-0270

$43.00

46003

HANDLE

46003-0174

Unavailable

46012

HOLDER-HANDLE,UPP

46012-0072

$113.20

46012B

HOLDER-HANDLE,LWR

46012-0083

$113.30

46019

GRIP-ASSY,THROTTLE

46019-1109

$69.36

46075

GRIP,LH

46075-1074

$24.48

46091

HOUSING-ASSY-CONTROL,LH

46091-0141

$467.99

46091A

HOUSING-ASSY-CONTROL,RH

46091-0142

Unavailable

56001

MIRROR-ASSY,LH

56001-0032

$65.98

56001A

MIRROR-ASSY,RH

56001-0033

$65.98

92015

NUT,FLANGED,14MM

92015-1401

$11.39

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92066

PLUG

92066-1285

$7.77

92154A

BOLT,UPSET,14X77

92154-0318

$21.95

92154B

BOLT,SOCKET,10X25

92154-0350

$4.65

92161

DAMPER,18X35X2.2

92161-0836

$3.21

92172

SCREW,4X12

92172-0420

$1.28

92200

WASHER,14.2X35X2.3

92200-0534

$3.52
