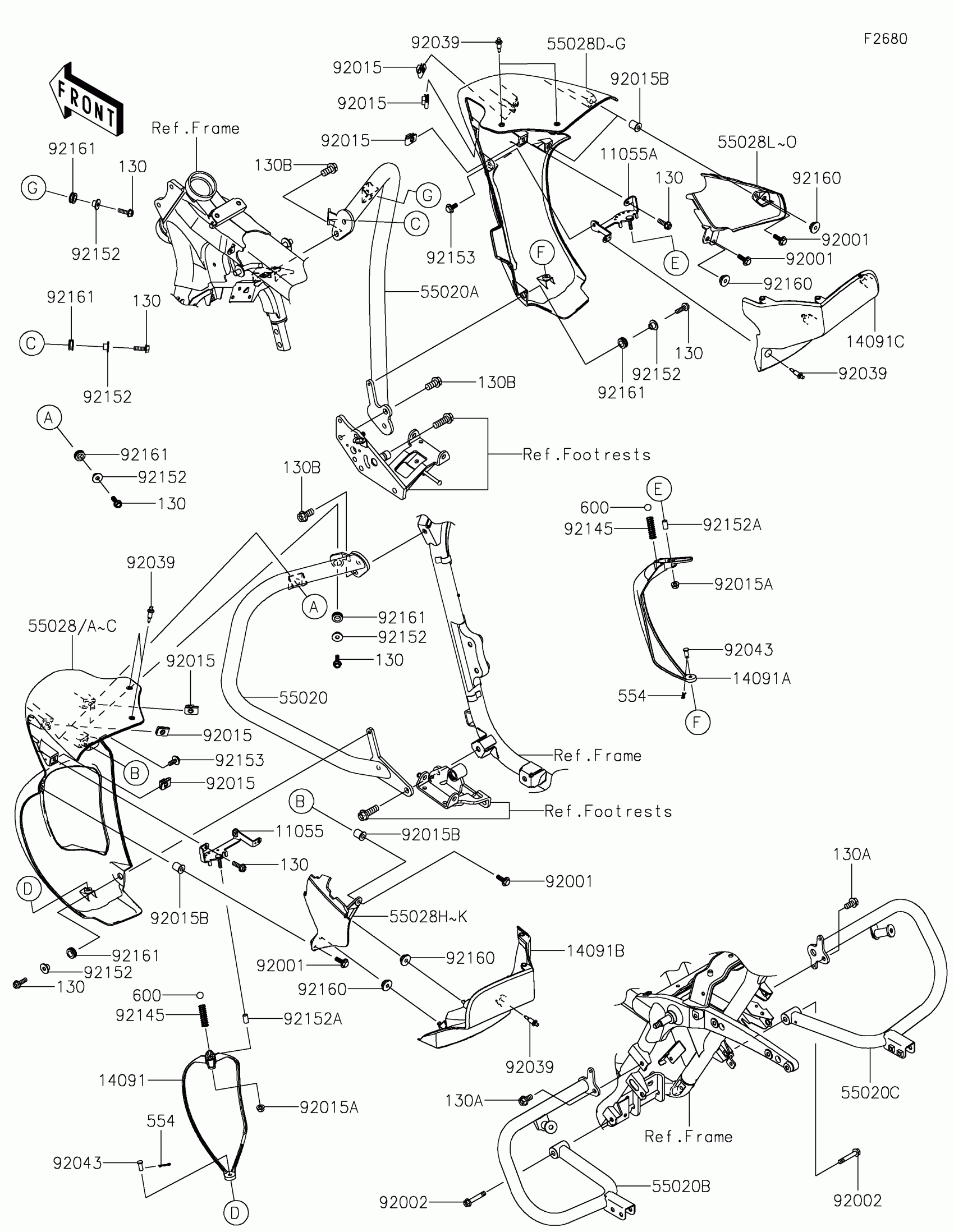

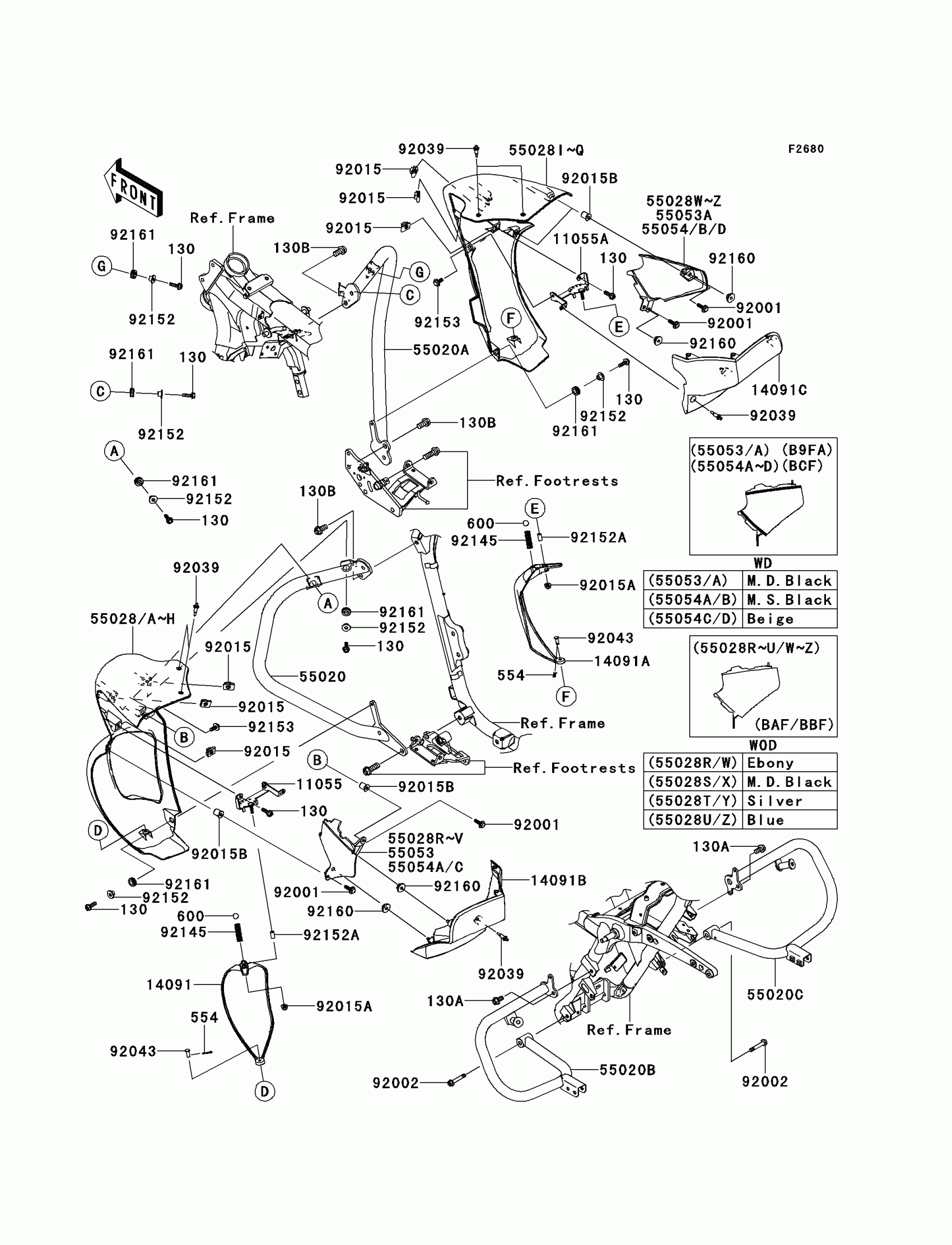

Kawasaki VULCAN® 1700 VOYAGER® ABS Guard(s) Diagram

#

Description
Price

11055

BRACKET,VENTILATION,LH,UPP

11055-0687

$21.95

11055A

BRACKET,VENTILATION,RH,UPP

11055-0688

$21.95

14091

COVER,VENTILATION,LH,F.BLACK

14091-1618-6Z

$28.52

14091A

COVER,VENTILATION,RH,F.BLACK

14091-1619-6Z

$28.52

14091B

COVER,LH

14091-1787

$36.45

14091C

COVER,RH

14091-1788

$36.45

55020

GUARD,FR,LH

55020-0512

$183.14

55020A

GUARD,FR,RH

55020-0513

$183.14

55020B

GUARD,RR,LH

55020-0535

$176.06

55020C

GUARD,RR,RH

55020-0536

$176.06

55028

COWLING,LEG SHIELD,OUT,LH,GRAY

55028-0220-C4

$371.55

55028I

COWLING,LEG SHIELD,OUT,RH,GRAY

55028-0221-C4

$371.55

130

BOLT-FLANGED,6X20

130BA0620

$1.74

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

130B

BOLT-FLANGED,10X20

130BC1020

$3.71

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

600

BALL-STEEL,1/4

600A0800

$0.62

55054A

COWLING,LEG SHIELD,IN,LH,BLACK

55054-5266-660

$123.19

55054B

COWLING,LEG SHIELD,IN,RH,BLACK

55054-5267-660

$124.49

92001

BOLT,6X20

92001-1460

$3.92

92002

BOLT,FLANGED,8X47

92002-1850

$5.52

92015

NUT,6MM

92015-1602

$7.34

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015B

NUT

92015-1700

$8.58

92039

RIVET

92039-1283

$2.80

92043

PIN,6X11

92043-092

$4.69

92145

SPRING

92145-1319

$1.81

92152

COLLAR

92152-0295

$5.65

92152A

COLLAR,6.2X7.8X14

92152-0771

$2.12

92153

BOLT,6X16

92153-1215

$4.18

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0266

$1.78

55028A

COWLING,LEG SHIELD,OUT,LH,WHT

55028-0220-R1

$371.55

55028J

COWLING,LEG SHIELD,OUT,RH.WHT

55028-0221-R1

$371.55

55054C

COWLING,LEG SHIELD,IN,LH,BEIGE

55054-5269-X9

$123.19

55054D

COWLING,LEG SHIELD,IN,RH,BEIGE

55054-5270-X9

$124.49
