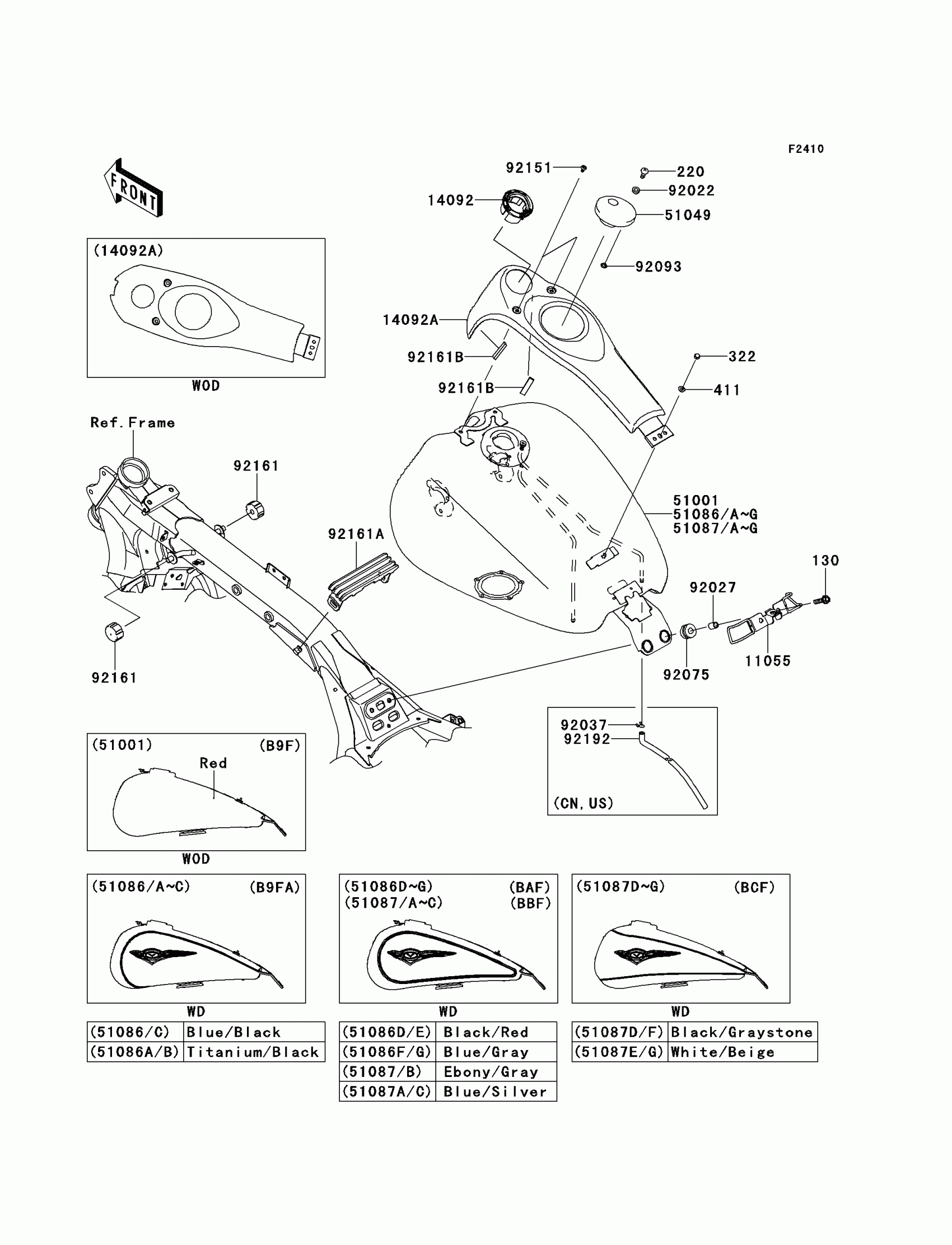

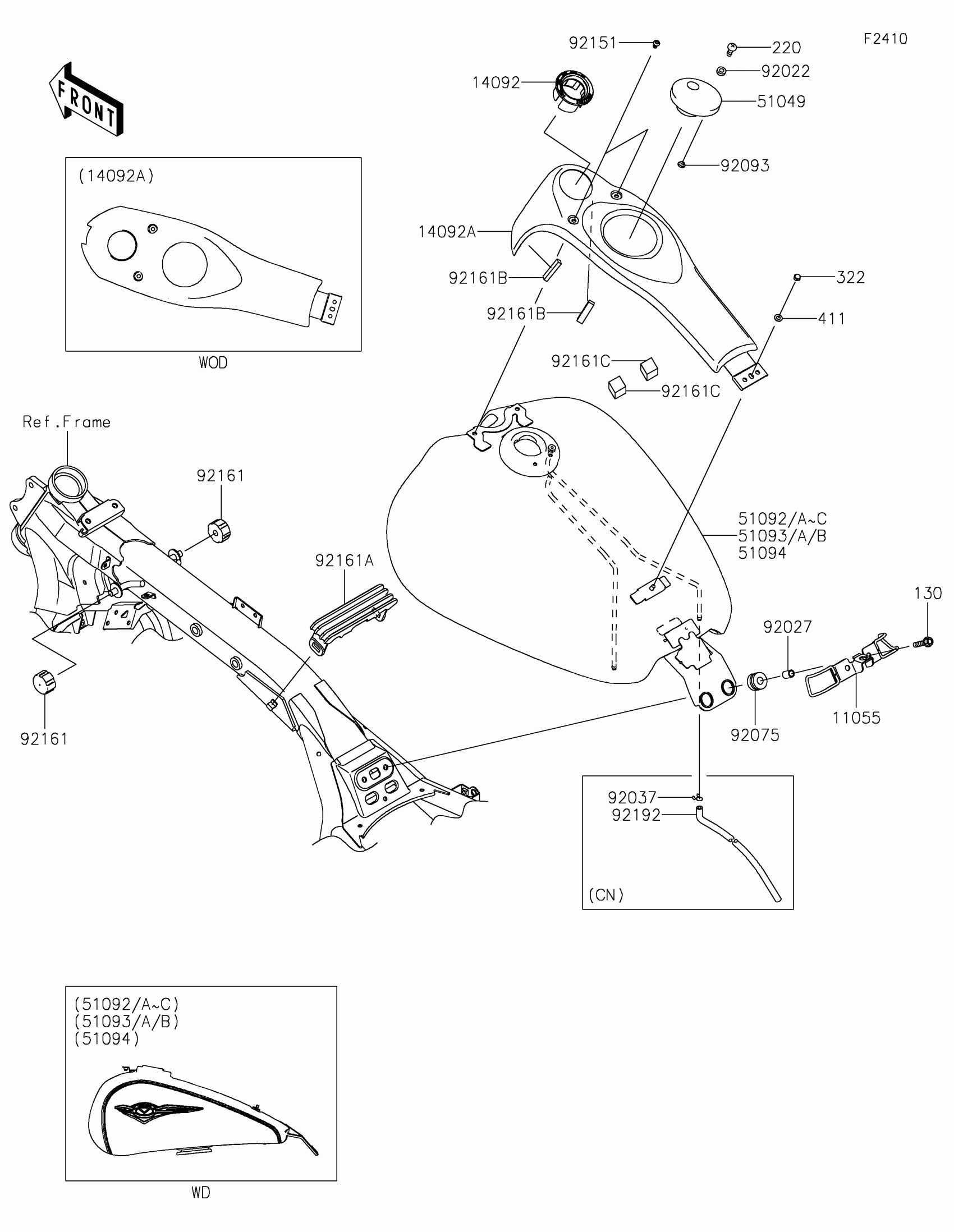

Kawasaki VULCAN® 1700 VOYAGER® ABS Fuel Tank Diagram

Description

Price

11055

BRACKET,SEAT

11055-1552

$36.79

14092

COVER,IGNITION SWITCH

14092-0046

$55.32

14092A

COVER,FUEL TANK

14092-0116

$243.98

51049

CAP-TANK,FUEL

51049-0003

$109.78

130

BOLT-FLANGED,8X30

130BA0830

$1.98

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

322

NUT-CAP,6MM

322AB0600

$2.80

411

WASHER-PLAIN,6MM

411S0600

$2.06

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92027

COLLAR,8.8X12X17

92027-034

$7.24

92075

DAMPER

92075-1736

$6.57

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92161

DAMPER,FUEL TANK

92161-0293

$7.83

92161A

DAMPER,FUEL TANK

92161-0577

$28.34

92161B

DAMPER,TANK COVER

92161-0804

$2.03

51087D

TANK-COMP-FUEL,BLACK/GRAYSTONE

51087-5213-33S

$1,969.28

51087E

TANK-COMP-FUEL,WHITE/BEIGE

51087-5215-33V

$1,969.28

51087F

TANK-COMP-FUEL,BLACK/GRAYSTONE

51087-5218-33S

$1,969.28

51087G

TANK-COMP-FUEL,WHITE/BEIGE

51087-5219-33V

$1,969.28

92037

CLAMP,TUBE

92037-147

$7.34

92192

TUBE,BREATHER

92192-0668

$19.16
