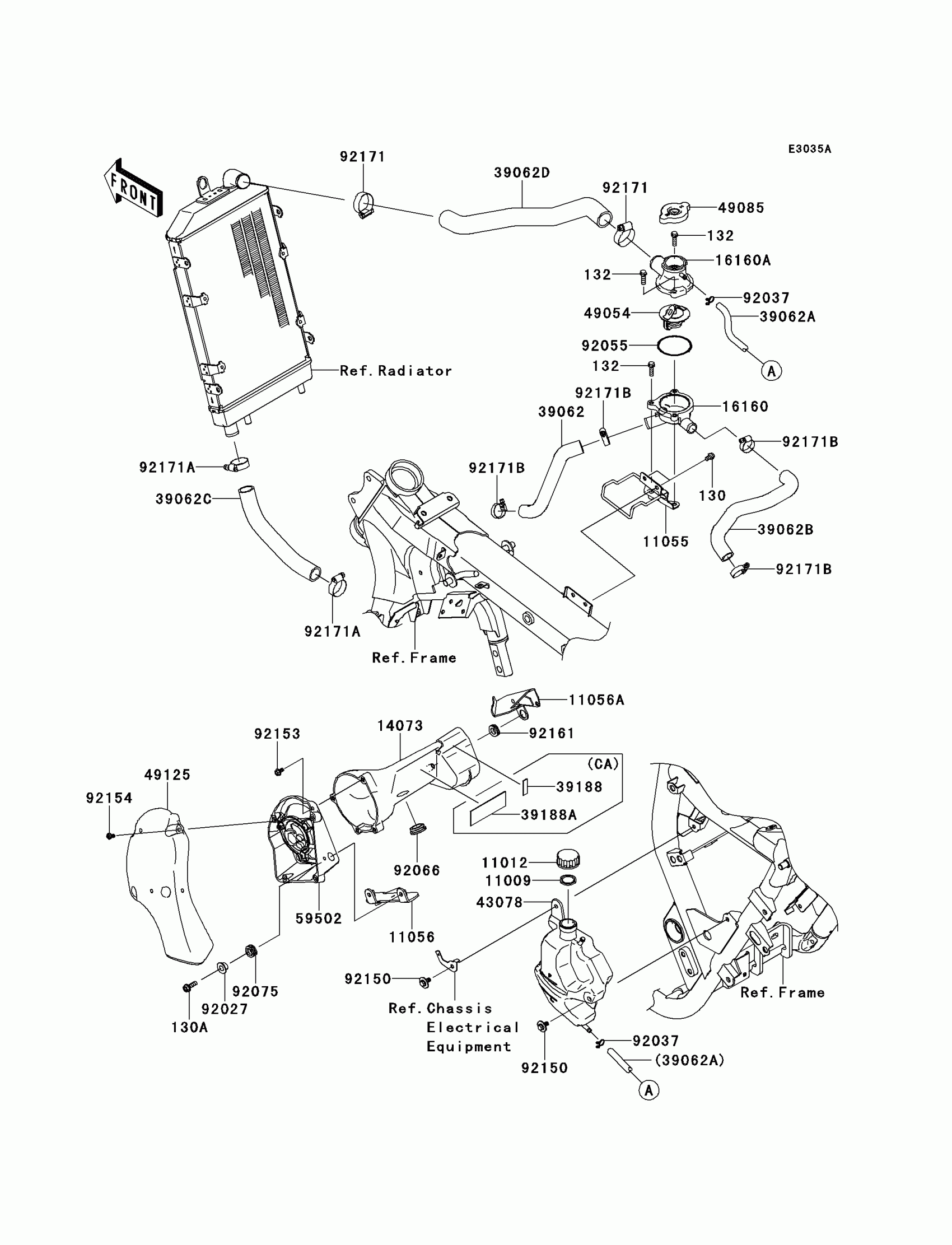

Kawasaki VULCAN® 1700 VOYAGER® ABS Cooling(BCF) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X20

130BA0620

$1.74

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11055

BRACKET,THERMOCASE

11055-0571

$30.15

11056

BRACKET

11056-1471

$28.40

11056A

BRACKET

11056-1472

Unavailable

14073

DUCT

14073-0739

$93.50

16160

BODY,LWR

16160-0158

$60.49

16160A

BODY,UPP

16160-1152

$67.73

39062

HOSE-COOLING,FR HEAD-THERMO

39062-0245

$14.66

39062A

HOSE-COOLING

39062-0291

$16.24

39062B

HOSE-COOLING,RR HEAD-THERMO

39062-0315

$21.40

39062C

HOSE-COOLING,RAD-W/P IN PIPE

39062-0600

$17.98

39062D

HOSE-COOLING,THERMO-RAD

39062-0601

$36.62

43078

RESERVOIR

43078-0067

$43.39

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE,P1.1

49085-1070

$50.52

49125

SHROUD

49125-0565

$46.93

59502

FAN-ASSY

59502-0563

$370.56

92027

COLLAR

92027-1045

$5.52

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,53.5X2.6

92055-112

$6.63

92066

PLUG

92066-1389

$4.26

92075

DAMPER

92075-1634

$4.69

92150

BOLT,FLANGED,6X14,WASHER

92150-1392

$4.80

92153

BOLT,FLANGED,5X10

92153-1881

$1.34

92154

BOLT,SOCKET,5X10

92154-0211

$2.12

92161

DAMPER

92161-1451

$7.58

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0261

$16.83

92171B

CLAMP

92171-0338

$8.36

39188

TAPE,10X30

39188-0555

$3.70

39188A

TAPE,80X85

39188-0557

$9.96
