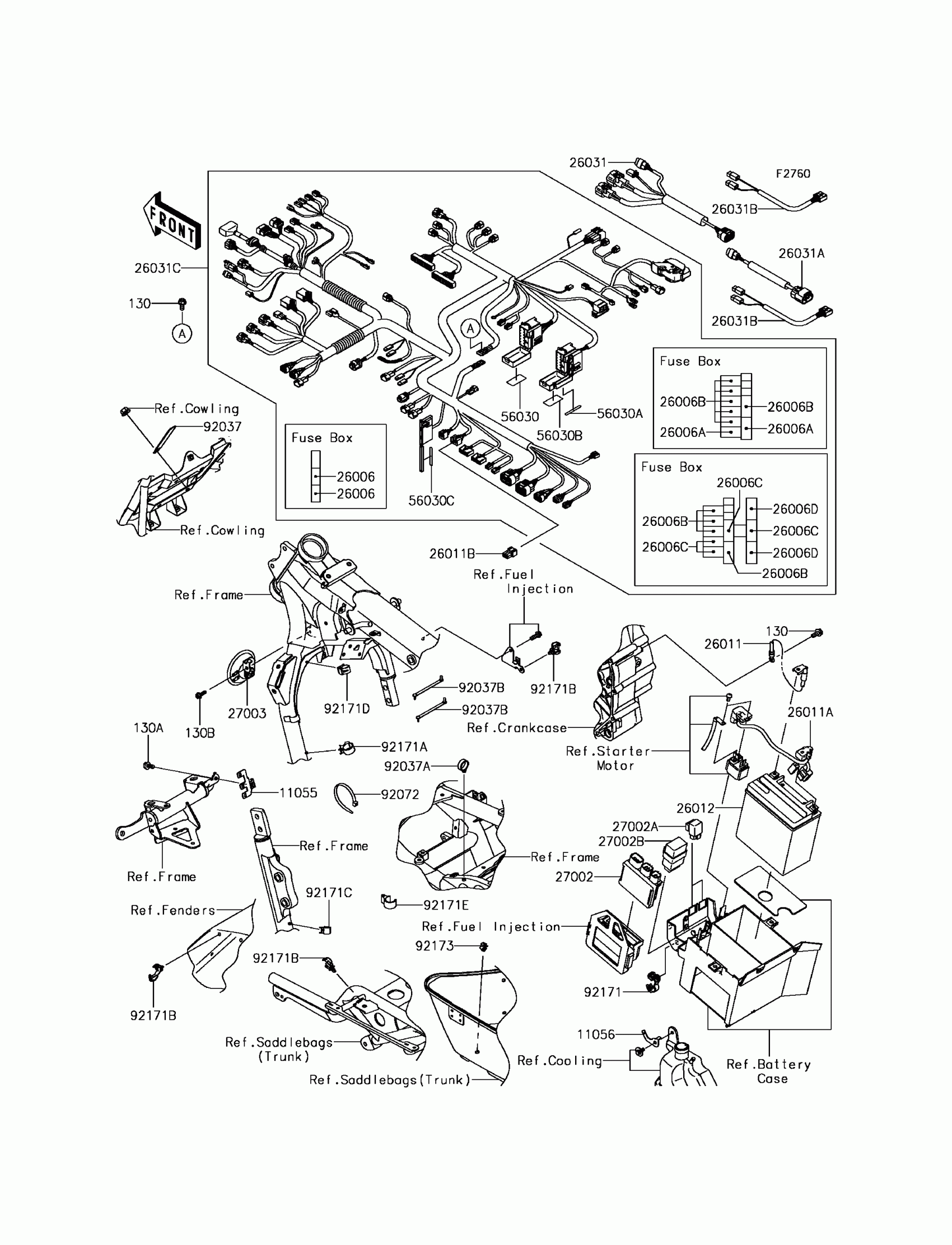

Kawasaki VULCAN® 1700 VOYAGER® ABS Chassis Electrical Equipment(BDF/BEF) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.12

130A

BOLT-FLANGED,6X12

130BB0612

$1.95

130B

BOLT-FLANGED,6X18

130BB0618

$1.54

11055

BRACKET,CONNECTOR

11055-0613

$8.25

11056

BRACKET,FUSE BOX

11056-1777

$4.19

26006

FUSE,MINI BLADE,3A,VIOLET

26006-0054

$5.71

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.71

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(-)

26011-0180

$57.59

26011A

WIRE-LEAD,BATTERY(+)

26011-0193

$71.22

26011B

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26012

BATTERY,FTZ16-BS,12V 18AH

26012-0589

$177.03

26031

HARNESS,RR,SUB

26031-0646

$111.82

26031A

HARNESS,HIGH MOUNT LAMP

26031-0678

$44.23

26031B

HARNESS,SPEAKER

26031-0778

$7.32

26031C

HARNESS,MAIN

26031-1267

$1,333.82

27002

RELAY-ASSY,BOX

27002-0025

$134.59

27002A

RELAY-ASSY

27002-1062

$39.55

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1113

$118.36

27003

HORN

27003-0055

$82.49

56030

LABEL,FUSE BOX

56030-0177

$5.95

56030A

LABEL,FUSE BOX

56030-0189

$5.97

56030B

LABEL,FUSE BOX

56030-0293

$7.41

56030C

LABEL,FUSE BOX

56030-0766

$5.97

92037

CLAMP,HARNESS,L=100

92037-1636

$7.56

92037A

CLAMP,HOSE

92037-1827

$5.69

92037B

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92072

BAND,L=202

92072-1195

$1.34

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29

92171A

CLAMP,20MM DIA.

92171-0081

$3.75

92171B

CLAMP,13MM DIA.

92171-1415

$1.69

92171C

CLAMP,10MM DIA.

92171-1423

$3.75

92171D

CLAMP,DIA=15

92171-1424

$3.19

92171E

CLAMP

92171-1460

$4.07

92173

CLAMP

92173-1133

$3.51
