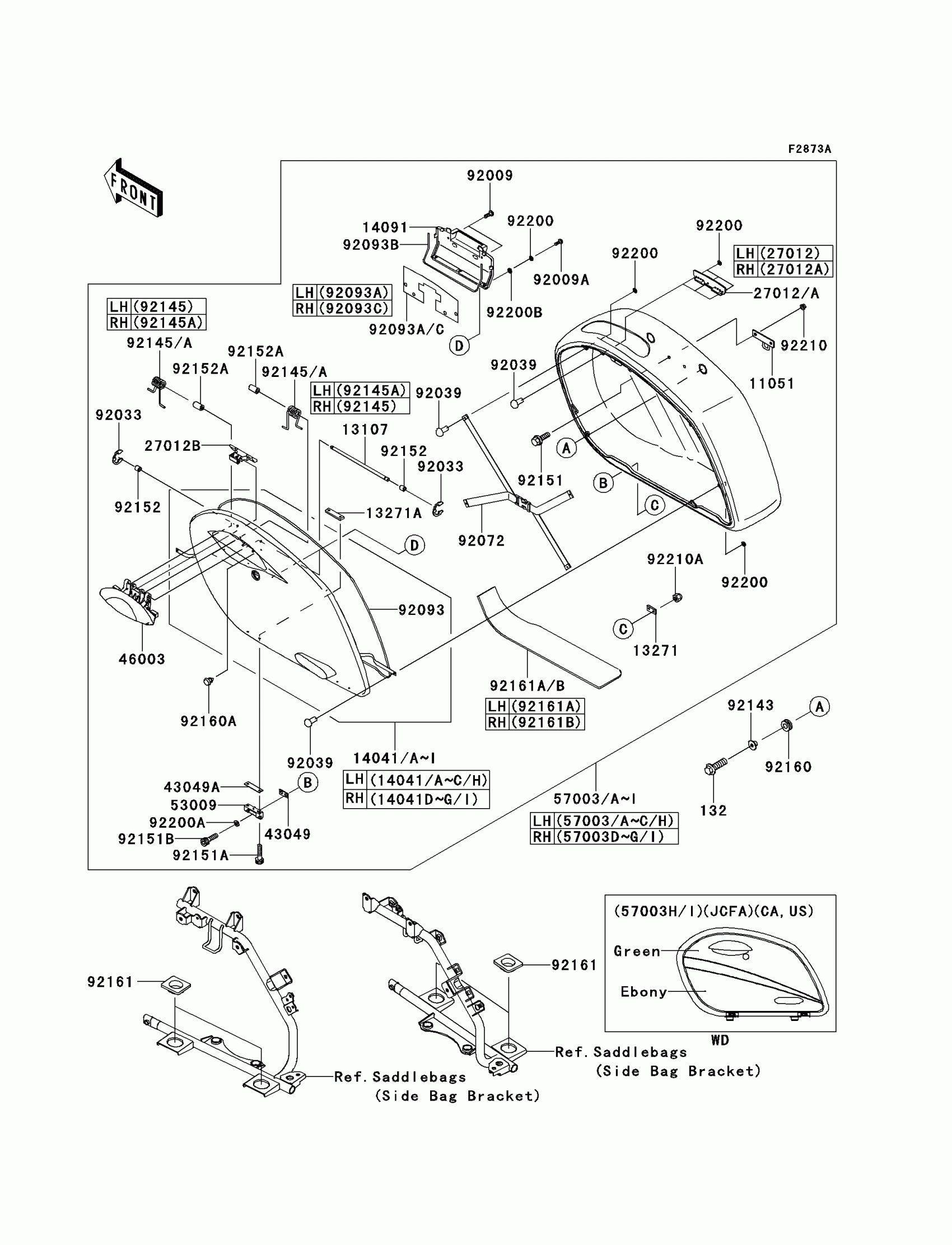

Kawasaki VULCAN® 1700 VAQUERO® Saddlebags(Side Bag) Diagram

#

Description
Price

11051

BRACKET,SIDE BAG BODY

11051-1104

$10.25

13107

SHAFT

13107-1403

$4.17

13271

PLATE

13271-1146

$3.75

13271A

PLATE

13271-1147

$7.80

14091

COVER,LID MAINTENANCE

14091-1069

$18.05

27012

HOOK,LOCK PLATE,LH

27012-1571

$11.23

27012A

HOOK,LOCK PLATE,RH

27012-1572

$14.03

27012B

HOOK,HANDLE

27012-1575

$18.27

43049

PACKING

43049-1084

$2.02

43049A

PACKING

43049-1086

$1.74

46003

HANDLE,SIDE BAG

46003-1505

$191.81

53009

HINGE,SIDE BAG

53009-1104

$24.25

132

BOLT-FLANGED-SMALL,8X25

132BB0825

$3.14

92009

SCREW,TAPPING,4X12

92009-1870

$1.39

92009A

SCREW,TAPPING,3X8

92009-1871

$1.39

92033

RING-SNAP

92033-1300

$1.39

92039

RIVET

92039-1236

$1.76

92072

BAND

92072-1368

$50.77

92093

SEAL,SIDE BAG COVER

92093-1486

$11.68

92093A

SEAL,SIDE BAG,LH

92093-1487

$5.41

92093B

SEAL

92093-1488

$3.15

92093C

SEAL,SIDE BAG,RH

92093-1489

$5.41

92143

COLLAR

92143-1450

$7.54

92145

SPRING

92145-1175

$7.75

92145A

SPRING

92145-1200

$7.75

92151

BOLT,FLANGED,6X16

92151-1435

$2.00

92151A

BOLT,SOCKET,4X22

92151-1436

$2.03

92151B

BOLT,SOCKET,4X18

92151-1437

$2.03

92152

COLLAR

92152-1121

$2.99

92152A

COLLAR

92152-1122

$3.17

92160

DAMPER

92160-1012

$4.18

92160A

DAMPER

92160-1976

$2.03

92161

DAMPER

92161-0895

$7.58

92161A

DAMPER,SIDE BAG,LH

92161-1171

$38.18

92161B

DAMPER,SIDE BAG,RH

92161-1176

$38.18

92200

WASHER,3MM

92200-1442

$1.39

92200A

WASHER,4MM

92200-1443

$1.39

92200B

WASHER,3MM

92200-1444

$1.39

92210

NUT,CAP,6MM

92210-1167

$1.89

92210A

NUT,CAP,4MM

92210-1168

$1.35

14041A

COVER-COMP,BAG,LH,M.S.BLACK

14041-0056-660

$248.82

14041B

COVER-COMP,BAG,LH,C.P.BLUE

14041-0056-723

$285.82

14041E

COVER-COMP,BAG,RH,M.S.BLACK

14041-0057-660

$248.82

14041F

COVER-COMP,BAG,RH,C.P.BLUE

14041-0057-723

$285.82

57003A

BAG-ASSY,LH,M.S.BLACK

57003-0060-660

$1,148.48

57003B

BAG-ASSY,LH,C.P.BLUE

57003-0060-723

$1,342.41

57003E

BAG-ASSY,RH,M.S.BLACK

57003-0061-660

$1,148.48

57003F

BAG-ASSY,RH,C.P.BLUE

57003-0061-723

$1,342.41
