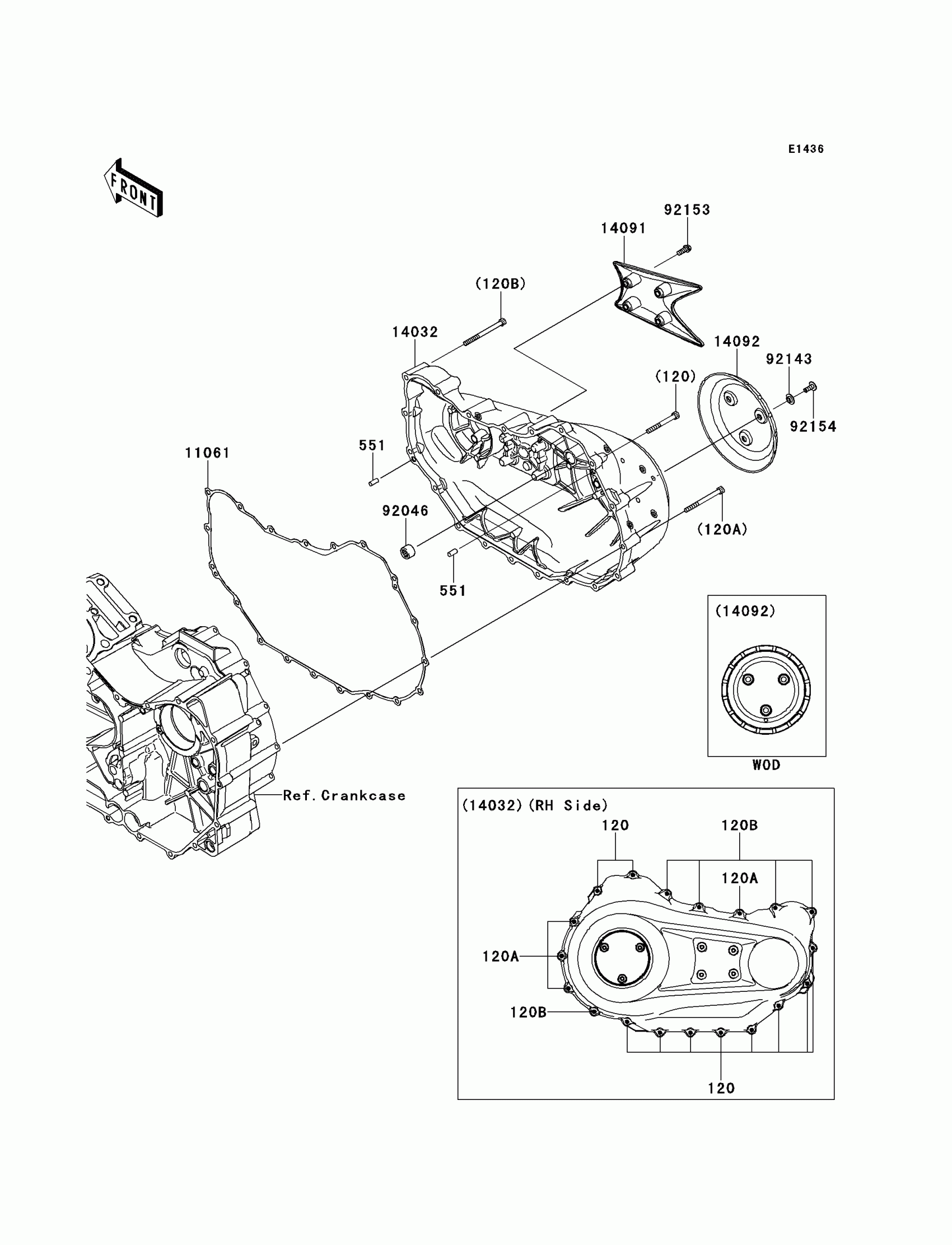

Kawasaki VULCAN® 1700 VAQUERO® Right Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X50

120CC0650

$2.55

120A

BOLT-SOCKET,6X65

120CC0665

$3.21

120B

BOLT-SOCKET,6X75

120CC0675

$3.56

551

PIN-DOWEL,6X14

551A0614

$3.92

11061

GASKET,CLUTCH COVER

11061-0337

$45.06

14032

COVER-CLUTCH

14032-0151

$568.17

14091

COVER,CLUTCH,OUTER

14091-0995

$34.79

14092

COVER,CLUTCH OUTER

14092-0033

$28.52

92046

BEARING-NEEDLE,HK1212V11

92046-1292

$16.92

92143

COLLAR

92143-1087

$4.31

92153

BOLT,6X16

92153-0825

$2.61

92154

BOLT,SOCKET,6X16

92154-0257

$2.41
